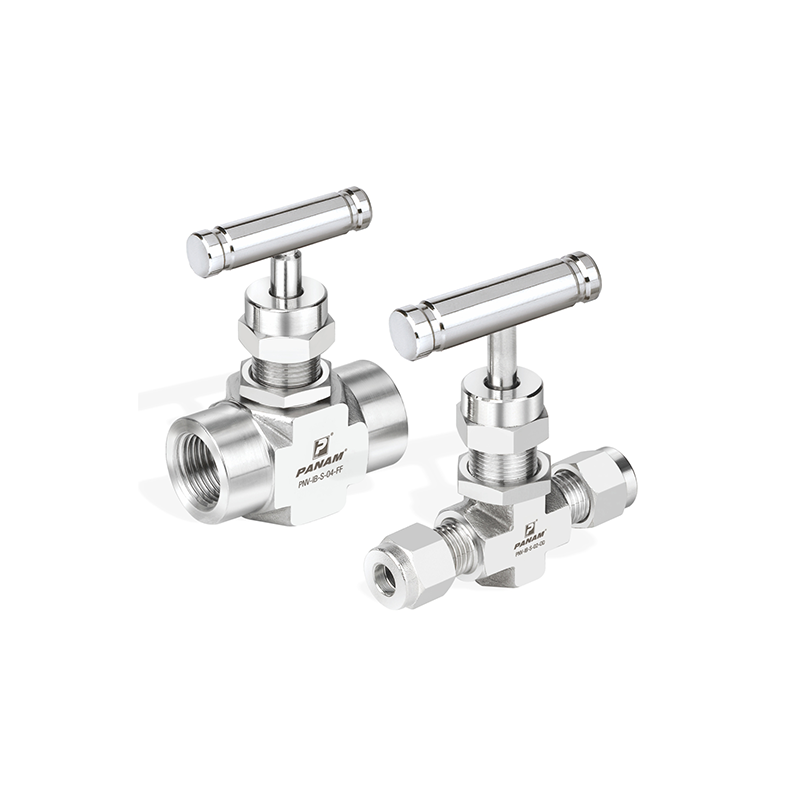

PANAM Needle Valve IB Series (One-Piece Body, up to 6,000 psi)
One-piece needle valves, straight or angle pattern, 1/8" to 3/4" and 3 mm to 18 mm OD, PANAM tube fitting or NPT, BSPT, BSPP and metric threads, up to 6,000 psi (414 bar). Body ASTM A182 F316, Cv 0.09 to 1.8, V, regulating or ball stem tips, panel mounting option.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM Needle Valves IB Series are designed for rugged, corrosive and hazardous environments up to 6,000 psi (414 bar) and are used in process control, instrumentation and flow control applications. Their one-piece design gives better strength and safety, and the stainless steel F316 body to ASTM A182 provides high corrosion resistance.
The valves are available in straight and angle configurations with PANAM compression tube ends (fractional or metric), female, male and male x female threaded ends, and male thread x tube fitting combinations. Non-rotating stem tips are offered as V tip for open/close service, regulating tip for flow control and ball tip for long service life. Valves can be supplied to meet NACE MR-01-75 and NACE MR-01-03.
Every valve is hydrostatically tested in accordance with MSS-SP-99 (body at 1.5 times and seat at 1.1 times the maximum working pressure) and the seat and stem seal are tested in nitrogen at 1,000 psi (6.9 MPa). Oxygen service cleaning is available.
Key features
- One-piece body design for strength and safety
- Non-rotating V tip, regulating tip or ball tip, eliminating rotation between plug and seat at closure
- Stem thread rolled and hard plated; mirror finish stem (16 RMS)
- PTFE stem packing as standard, PEEK and Grafoil optional
- Panel mounting option on all versions
- SS 304 T handle for V and ball tip; nylon handle with SS insert in black, red, blue, yellow or green for regulating tip
- Compression tube ends avoid tapered threads and sealing tape
- Repair kits (stem seal kit, handle) available
Standard specification
| Maximum working pressure | 6,000 psi (414 bar) |
|---|---|
| Configurations | Straight, angle |
| Connection sizes | 1/8" to 3/4", 3 mm to 18 mm OD, M20x1.5 |
| End connections | PANAM tube fitting, female x female, male x male, male x female, male x tube fitting |
| Threads | NPT, BSPT, BSPP, metric |
| Flow coefficient | Cv 0.09 to 1.8 |
| Body material | ASTM A182 F316 standard; carbon steel, Monel, Hastelloy, brass on request |
| Stem tip | ASTM A564 SS 17-4, non-rotating |
| Temperature (PTFE packing) | -54 to 232°C (-65 to 450°F) |
| Temperature (PEEK packing) | -40 to 315°C (-40 to 600°F) |
| Temperature (Grafoil packing) | -40 to 648°C (-40 to 1200°F) |
| Testing | MSS-SP-99, nitrogen test at 1,000 psi |
Configurations
| Configuration | Ends | Sizes | Example part number |
|---|---|---|---|
| Straight | PANAM tube fitting (inch) | 1/8" to 3/4" | PNV-IB-S-04-OD |
| Straight | PANAM tube fitting (metric) | 3 mm to 18 mm | PNV-IB-S-M10-OD |
| Straight | Female x Female (NPT, BSPT, BSPP, M20x1.5) | 1/8" to 1/2" | PNV-IB-S-04-FF |
| Straight | Male x Female (NPT, BSPT, M20x1.5) | 1/4" to 1/2" | PNV-IB-S-06-MF |
| Straight | Male x Male (NPT, BSPT, M20x1.5) | 1/8" to 1/2" | PNV-IB-S-02-MM |
| Straight | Male NPT x PANAM tube fitting | 1/4" to 1/2", 6 mm to 12 mm | PNV-IB-S-04-M06-MOD |
| Angle | PANAM tube fitting (inch / metric) | 1/8" to 3/4", 3 mm to 18 mm | PNV-IB-S-06-OD-A |
| Angle | Female, male and male x female threads | 1/8" to 1/2" | PNV-IB-S-04-FF-A |
The part number gives series (PNV-IB), body material (S SS 316, C carbon steel, M Monel, H Hastelloy, B brass), connection size, thread type (blank NPT, R BSPT, G BSPP, M metric), end connection (OD, FF, MF, MM, MOD), configuration (blank straight, A angle), stem tip, handle, stem seal and options (SG NACE MR-01-75, OXY oxygen cleaning). Example: PNV-IB-S-M10-OD-SG = SS 316 needle valve, 10 mm PANAM tube fitting ends, straight, NACE.
Applications
Process control, instrumentation and flow control in fluid and gas systems, including panel-mounted analyser and sampling systems. Instrumentation and process lines in oil and gas, refineries, petrochemical and chemical plants, power generation and offshore installations.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-NV-IB
Data sheet
- Manufacturer series
- IB Series
- Product type
- Instrumentation needle valve
- Size range
- 1/8 in to 3/4 in
- Pressure rating
- 6000 psi
- Material
- SS 316 (A182 F316)
- Origin
- India
