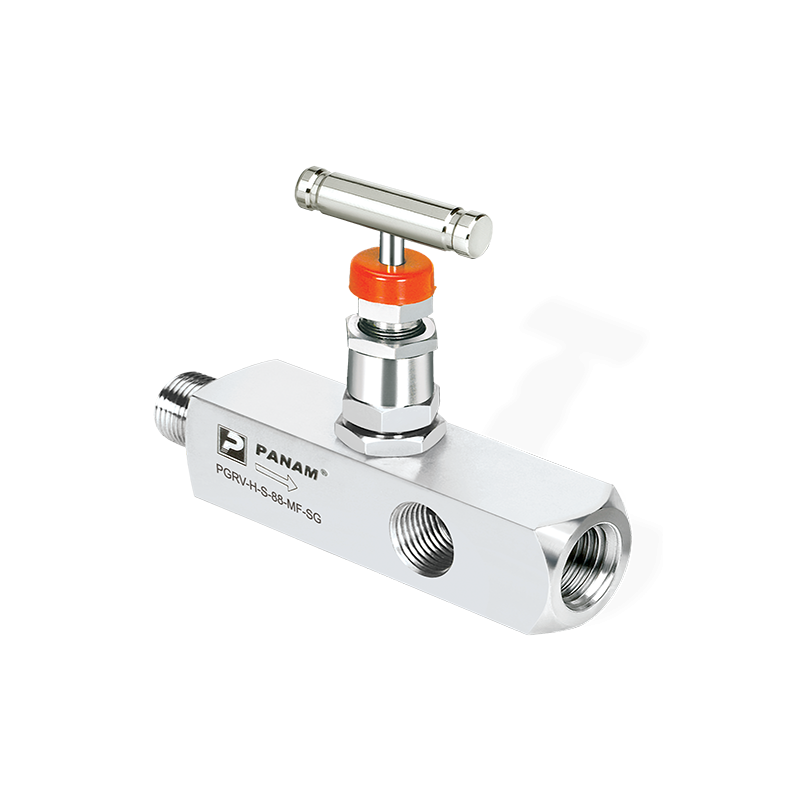

PANAM Gauge Root Valve (1/2" NPT, Short and Lagging Extension)
Gauge root valves with 1/2" or 3/4" NPT male inlet and two 1/2" NPT female gauge ports, short or lagging extension body for insulation clearance, 6,000 psi (414 bar). SS 316 construction, non-rotating vee or ball tip, Teflon or Grafoil packing, NACE MR0175 / ISO 15156.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM Gauge Root Valves are used for the safe installation of pressure switches, gauges and differential pressure transmitters. They are suitable for block and bleed assemblies, for testing the pressure source in sampling lines, or as purge valves.
The valves are built in 316 stainless steel for corrosion resistance, with a schedule 160 or heavier pipe inlet for strength and an extended body for insulation clearance. The non-rotating vee or ball tip forms a bearing joint with the stem, eliminating rotation between tip and seat at closure and ensuring long life in repetitive shut-off service. Optional Grafoil packing is available for high temperatures.
Each valve is hydrostatically tested in accordance with MSS-SP-99 at 1.5 times the maximum working pressure, with seat leakage test at 1.1 times, and nitrogen tested at 1,000 psi for seat, seal and shell leakage. Valves comply with NACE MR0175 / ISO 15156 with heat code traceability.
Key features
- 316 SS construction for corrosion resistance
- Non-rotating vee or ball tip for repetitive shut-off service
- Extended body (lagging extension) for insulation clearance
- Schedule 160 or heavier pipe valve inlet
- Two 1/2" NPT female gauge ports
- Stem threads isolated from system fluids, rolled and hard plated; safety back seating
- Optional Grafoil packing for high temperatures
Standard specification
| Maximum working pressure | 6,000 psi (414 bar) |
|---|---|
| Inlet | 1/2" NPT male (short body) or 3/4" NPT male (lagging extension) |
| Outlets | 1/2" NPT female (2 gauge ports) |
| Orifice | 5 mm |
| Body | Short (A = 137 mm) or lagging extension (A = 184 mm) |
| Body material | A479-316 SS (A-105 option) |
| Tip | A564-630 non-rotating vee or ball tip |
| Packing | Teflon or Grafoil |
| Testing | MSS-SP-99, nitrogen test at 1,000 psi |
Applications
Primary isolation for pressure gauges, pressure switches and differential pressure transmitters, block and bleed and sampling points. Instrumentation and process lines in oil and gas, refineries, petrochemical and chemical plants, power generation and offshore installations.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-GRV
Data sheet
- Manufacturer series
- Gauge Root Valve
- Product type
- Gauge root valve
- Size range
- 1/2 in and 3/4 in NPT
- Pressure rating
- 6000 psi
- Material
- SS 316
- Origin
- India
