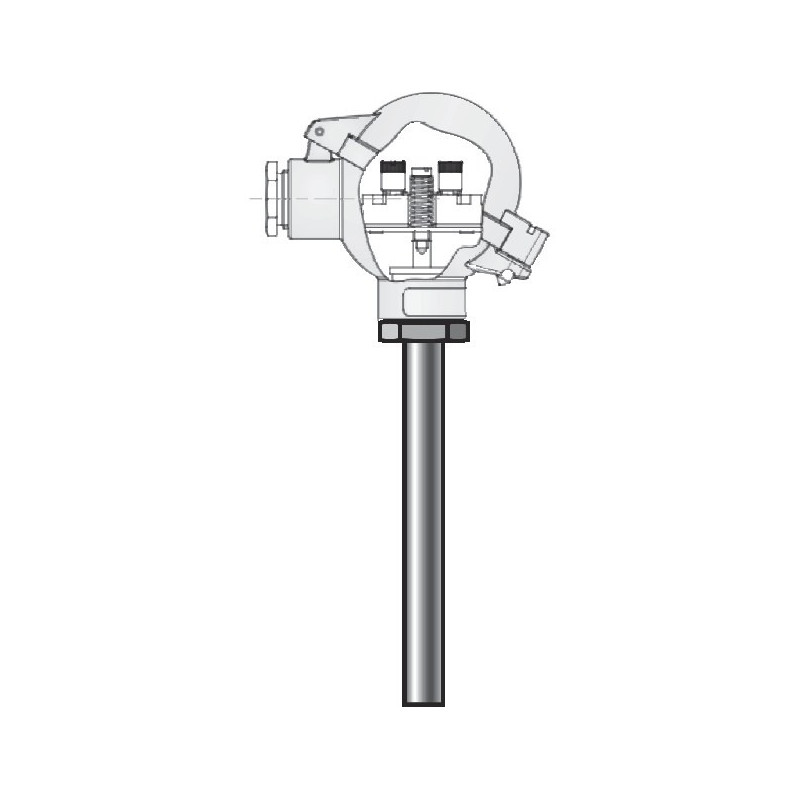

PANAM Temperature Sensors PTS-504 (without Protection Tube, Ø3 to Ø8 mm)

The PANAM PTS-504 sensors are offered as Pt100 resistance thermometers (classes A and B per IEC 60751, -200 to +600 °C) or thermocouples (classes 1 and 2 per IEC 60584), without additional protection tube. Small diameters and a flexible process part allow installation in places that are not easily accessible.

They are suitable only for non-aggressive and non-abrasive liquids and gases, usually mounted directly in the process, or in thermowells with spring loaded fitting or transmission liquid. Typical uses are machine building and temperature measurement in motors and bearings.

Key features

• Single or dual Pt100, TC K or J
• Diameters 3, 6 or 8 mm, flexible process part
• Adjustable clamping grip G1/2", 1/2" NPT or G1/4"
• Electrical connection: wires, silicone cable, TC connector or heads MA, NA, KO
• ATEX Ex ia certificate options
• Optional PTT-402 head transmitter

Standard specification

The code gives model (504), sensor diameter, certificate, sensor type, accuracy class, stem length, process connection, electrical connection, transmitter, alarm and range. Catalogue example: PTS-504-3-1-01-01-15-1-1-1-H-200.

Applications

Machine building, motors, bearings and equipment with limited access, non-aggressive liquids and gases.

Documentation

The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
