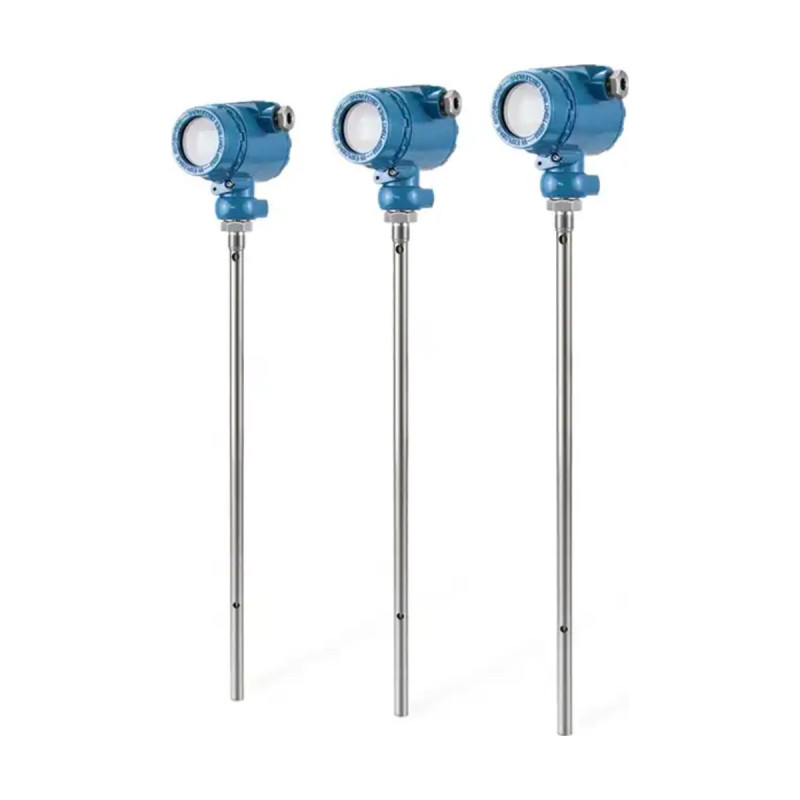

Capacitive Level Transmitter (300 to 3000 mm, 4 to 20 mA, Ex ia)
Capacitive level transmitter for liquids, slurries and granular solids. Range 300 to 3000 mm, accuracy 0.5 % FS (0.25 % FS option), 0.6 to 3 MPa, -30 to +150 °C, 4 to 20 mA, 24 V DC, IP65.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The capacitive level transmitter measures the capacitance between its probe and the vessel wall. As the level changes, the dielectric between them changes and the capacitance varies proportionally, which the electronics convert into a level signal.
The fully sealed probe has no moving parts and needs a single mounting opening. It suits liquids, oils, water, slurries and granular materials, including corrosive media.
Key features
- Static capacitance measurement, no moving or wearing parts
- For liquids, slurries, powders and granular solids
- Not affected by density changes, bubbles or pressure
- Single mounting hole, compact and easy to install
- Fully sealed construction with corrosion-resistant materials
- Low maintenance cost
Technical data
| Model | Capacitive level transmitter |
| Measuring principle | Capacitance |
| Measuring range | 300 to 3000 mm |
| Accuracy | 0.5 % FS (0.25 % FS on request) |
| Working pressure | 0.6 to 3 MPa |
| Medium temperature | -30 to +150 °C |
| Compensated temperature range | -10 to +70 °C |
| Process connection | M20 x 1.5 thread or flange |
| Output | 4 to 20 mA |
| Power supply | 24 V DC |
| Protection | IP65 |
Applications
- Petrochemical: acids, alkalis and solvents
- Power plants: boiler drum and deaerator level
- Sewage, sludge and chemical dosing tanks
- Food and pharmaceutical: syrups, sauces and other viscous media
- Mining and metallurgy: pulp, fly ash, cement
Hazardous areas
Intrinsically safe versions (Ex ia IIC T6 Ga / Gb) are declared by the manufacturer. Certificates (ATEX / IECEx where applicable) are provided on request with the quotation.
Supplied on quotation and configured to your process data (range, process connection, materials, output, options). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-LVL-105
Data sheet
- Hazardous area
- Ex ia IIC T6 declared
- Accuracy
- 0.5 % FS
- Output
- 4-20 mA
- Measuring principle
- Capacitance
- Max. pressure
- 3 MPa
- Max. temperature
- 150 °C
