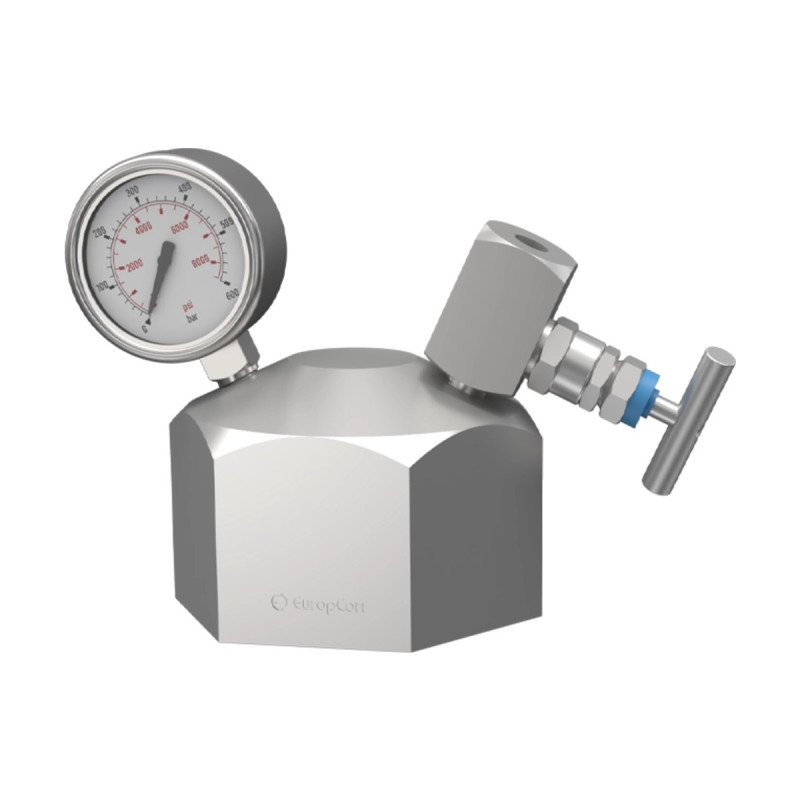

EuropCorr Hydraulic Pressure Retaining Cover for Coupon

The Pressure Retaining Cover protects the external ACME threads and acts as a secondary safety containment in case a seal in the access fitting develops a leak. The pressure gauge shows any pressure build-up between the access fitting and the cover, and the bleed valve is used to purge before removal. It is used with hydraulic access fittings fitted with a Solid Plug carrying a coupon holder or injection or sampling equipment.

Part of the EuropCorr Hydraulic Access System, which gives access to pipelines and vessels under full operating pressure without shutdown. The assembly is made of a Hydraulic Access Fitting, a Solid or Hollow Plug and a Heavy Duty or Pressure Retaining Cover; monitoring devices are inserted and retrieved with the Hydraulic Retrieval Tool Kit, and the system can be installed under pressure with the EuropCorr Hot Tap Tool.

Key features

• Secondary containment against seal leaks
• 1/4" NPT pressure gauge, AISI 316L
• 1/4" NPT bleed valve, AISI 316L
• Viton O-ring (Part No. 133001)

Specifications

Special materials and painting are available on request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
