PANAM All Stainless Steel Gas Actuated Thermometer PGTS (Rigid Stem or Capillary)
All stainless steel inert gas actuated thermometers, dial 100, 115, 150 or 160 mm, ranges -200...50 °C up to 0...800 °C, Class 1 (EN 13190), rigid stem or bulb with capillary up to 30 m, IP65 to IP68. Contacts, panel and pipe mounting options.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

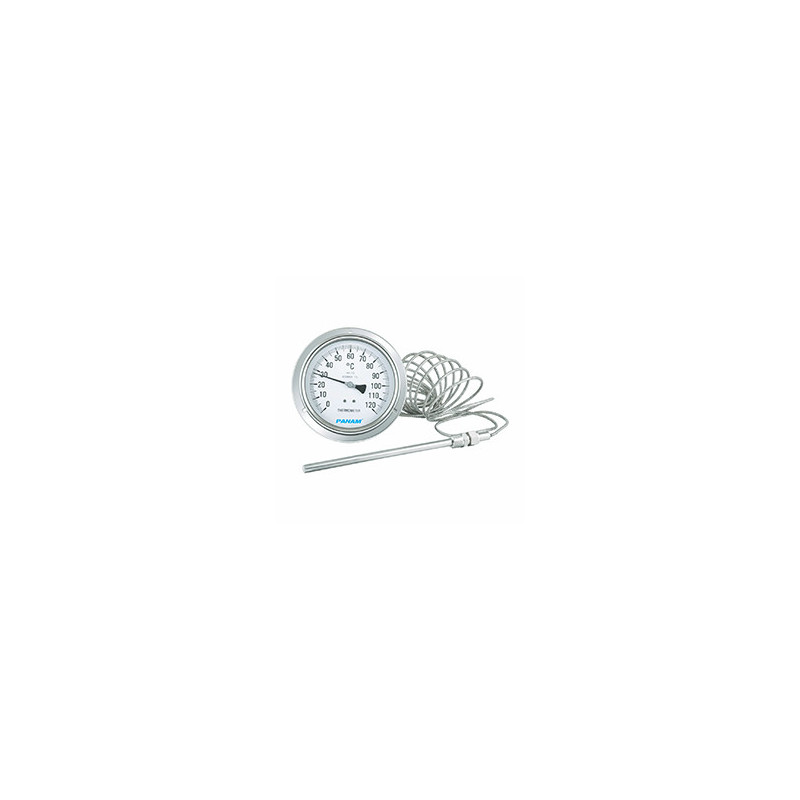

The PANAM PGTS is an all stainless steel gas actuated thermometer. The inert gas filled system gives high repeatability, small hysteresis and fast response over a wide range, from cryogenic to high temperature service.
It is available with a rigid stem for direct mounting, or with a bulb and SS 316 capillary (SS 304 flexible armour, PVC covering optional) up to 30 m for remote reading. Stem or bulb diameters are 6 to 12 mm with lengths from 100 to 4000 mm; SS 321 is used for the stem above 600 °C.
Key features
- Rugged all stainless steel construction
- Inert gas actuated system, high repeatability and small hysteresis
- Accuracy Class 1 (1%) as per EN 13190
- Rigid stem or bulb with capillary (max. 30 m)
- Protection IP65, IP66, IP67 and IP68
- Dry or liquid filled (silicone, glycerin options)
- Options: magnet spring or inductive contacts, dual scale, front panel, surface plate, 2" pipe mounting bracket
- Calibration certification on request
Standard specification
| Dial size | 100, 115, 150 and 160 mm |
|---|---|
| Measuring principle | Inert gas actuated |
| Ranges | -200...50 °C up to 0...800 °C; -330...120 °F up to 30...1450 °F |
| Accuracy | Class 1 as per EN 13190 |
| Over temperature | Max. 130% F.S., max. 825 °C |
| Stem or bulb | Diameter 6, 8, 10, 12 mm; length 100 to 4000 mm |
| Capillary | Max. 30 m, SS 316, flexible SS 304 armour (PVC covered optional) |
| Process connection | Plain, 1/2", 3/4", 1" BSP / NPT (M), M20 x 1.5, M24 x 1.5, M27 x 2; fixed, adjustable or swivel nut |
| Connection location | Back, lower, every angle |
| Materials | Connection SS 316, stem SS 316 (SS 321 above 600 °C), case SS 304 (316L optional), movement SS 304 |
| Protection | IP65 / IP66 / IP67 / IP68 |
Main dimensions (mm)
| Dial size | ØD1 | ØD2 | L1 |
|---|---|---|---|
| 100 | 109.0 | 98.5 | 47.0 |
| 115 | 126.5 | 114.5 | 47.0 |
| 150 | 166.0 | 152.0 | 50.0 |
The ordering code gives dial size, type, bulb diameter, bulb or stem length, capillary type, process connection, connection size, orientation, range and options. Example from the catalogue: 100 PGTS 08 125 R CS3 50N L 0/100 °C FW (100 mm dial, 8 mm bulb, 125 mm rigid stem, adjustable union sliding on stem, 1/2" NPT, lower connection, 0/100 °C, surface plate mounting).
Applications
Chemical and petrochemical industry, oil and gas, power, machine and apparatus construction, food and beverage, pulp and paper; remote reading on tanks, vessels and machinery.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-TG-PGTS
Data sheet
- Manufacturer series
- PGTS
- Product type
- Gas actuated thermometer
- Size range
- 100 to 160 mm dial
- Pressure rating
- Not applicable
- Material
- Stainless steel
- Origin
- India
