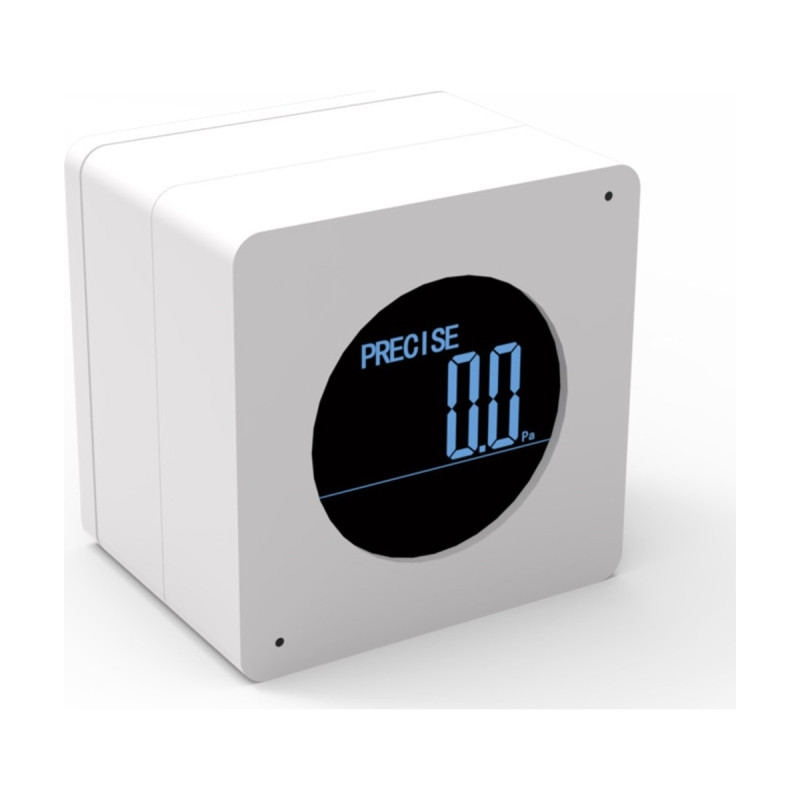

Micro Differential Pressure Transmitter with LCD (±25 Pa to ±10 kPa, IP65)
Micro differential pressure transmitter for air and non-flammable gases, ranges ±25 Pa to ±10,000 Pa, accuracy ±0.5 % to ±1 % FS, LCD display, 4 to 20 mA, 0 to 10 V or RS-485 Modbus RTU output, IP65.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The micro differential pressure transmitter measures very low pressure differences of air and neutral, non-flammable gases in HVAC, cleanroom and ventilation systems. It combines a high-stability MEMS micro differential pressure sensor with an integrated LCD for local readout.
Outputs include 2-wire 4 to 20 mA, 3-wire 0 to 10 V and RS-485 with Modbus RTU. A zero button and adjustable damping simplify commissioning, and the flame-retardant PC housing with IP65 protection is designed for wall or duct mounting.
Key features
- Standard ranges ±25 Pa, ±50 Pa, ±100 Pa, ±1,000 Pa and ±10,000 Pa; other ranges on request
- Accuracy ±0.5 % FS (±100 Pa range) or ±1.0 % FS (other ranges)
- LCD display, backlit version available
- Zero push button and adjustable response time
- Temperature compensated from -10 to +60 °C
- Wall or duct mounting (optional bracket)
Technical data
| Model | Micro differential pressure transmitter with LCD (model code on quotation) |
| Measured media | Air and neutral, non-flammable gases |
| Ranges | ±25 Pa / ±50 Pa / ±100 Pa / ±1,000 Pa / ±10,000 Pa; custom ranges on request |
| Accuracy | ±1.0 % FS standard; ±0.5 % FS for ±100 Pa range |
| Long-term drift | ±1 % FS per year |
| Overload | Up to 2 x full scale (model dependent) |
| Output | 4 to 20 mA (2-wire); 0 to 10 V (3-wire); RS-485 Modbus RTU |
| Power supply | 12 to 30 VDC or 24 VAC ±20 %; consumption ≤ 1.5 W |
| Response time | Adjustable 0.5 / 1 / 2 / 4 s |
| Temperatures | Operating -20 to +70 °C; compensated -10 to +60 °C; storage -40 to +80 °C |
| Housing | PC industrial plastic, UL94-V0 flame retardant |
| Pressure ports | Metal barbed fittings for 6.2 mm tube |
| Protection | IP65 |
Applications
- HVAC duct static pressure and fan control
- Cleanroom and laboratory room pressure monitoring
- Filter differential pressure and clogging alarms
- VAV airflow regulation
- Furnace draft, oven pressurisation and boiler ventilation
Hazardous areas
Standard version for safe areas, for non-flammable gases only. Ask us for hazardous-area options.
Supplied on quotation and configured to your process data (range, process connection, materials, output, options). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-PRS-103
Data sheet
- Accuracy
- ±0.5 % to ±1.0 % FS
- Output
- 4 to 20 mA / 0 to 10 V / RS-485 Modbus RTU
- Protection
- IP65
- Measuring principle
- MEMS micro differential pressure sensor
- Max. temperature
- +70 °C ambient
