Insertion Electromagnetic Flow Meter (DN300 to DN3000, hot tap)
Insertion electromagnetic flow meter for conductive liquids in large pipes DN300 to DN3000, 0.01 to 10 m/s, ±2.5 %, installable with ball valve without process shutdown, 4 to 20 mA / pulse, Modbus or HART.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

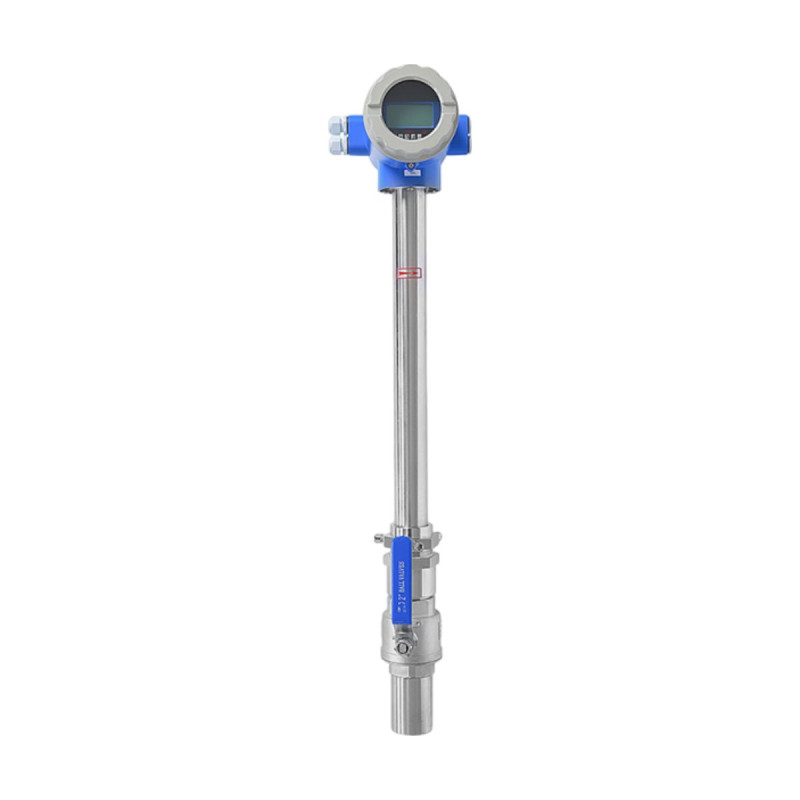

The AG-FLW-102 insertion electromagnetic flow meter consists of an electromagnetic probe inserted into the pipe and a flow converter. It measures conductive liquids (conductivity above 5 µS/cm) such as water, sewage, acids and alkalis in large-diameter pipes.
Installed through a ball valve, the probe can be fitted or removed without draining the line. For large diameters, installed cost is much lower than that of a full-bore electromagnetic flow meter.
Key features
- Point velocity measurement representing the average pipe flow
- Installation and removal under pressure with ball valve version
- Negligible pressure loss
- No moving parts, simple and robust construction
- Compact or remote converter (remote supplied with 10 m cable)
- Battery-powered version available for sites without power
Technical data
| Model | AG-FLW-102 |
| Pipe size | DN300 to DN3000 |
| Flow velocity | 0.01 to 10 m/s |
| Accuracy | ±2.5 % |
| Minimum conductivity | 5 µS/cm |
| Operating pressure | Less than 1.6 MPa |
| Medium temperature | 0 to +70 °C |
| Electrodes | 316L (standard), Hastelloy C, titanium, tantalum, platinum-iridium |
| Process connection | Flange or thread; with or without ball valve |
| Output | 4 to 20 mA, pulse, frequency |
| Communication | RS485 Modbus, HART, GPRS option |
| Power supply | 110 to 240 V AC, 24 V DC, lithium battery (battery version without output) |
| Protection | Sensor IP68; transmitter IP65 / IP67 |
| Display | Backlit LCD |
| Cable entry | M20 x 1.5 or 1/2" NPT |
Applications
- Main inlet and outlet lines of water and wastewater treatment plants
- Municipal water distribution networks and irrigation mains
- Industrial cooling water, fire water and circulation loops
- Retrofit metering on existing large pipelines
Hazardous areas
Standard version for safe areas. Ask us for hazardous-area options.
Supplied on quotation and configured to your process data (range, process connection, materials, output, options). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-FLW-102
Data sheet
- Accuracy
- ±2.5 %
- Output
- 4 to 20 mA / pulse / RS485 / HART
- Protection
- Sensor IP68
- Measuring principle
- Insertion electromagnetic
- Max. pressure
- 1.6 MPa
- Max. temperature
- 70 °C
