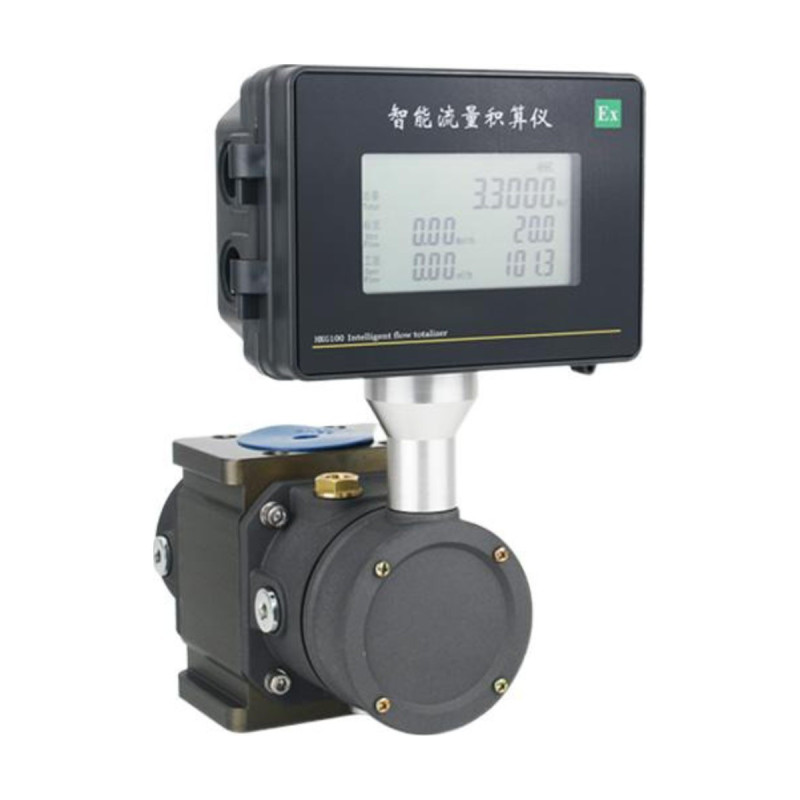

Intelligent Gas Roots Flow Meter (G4 to G400, T/P compensated)
Rotary (Roots) gas flow meter with integrated temperature and pressure compensation, sizes DN15 to DN100, 0.5 to 650 m³/h, accuracy ±1.0 %, PN 1.6 MPa, pulse, 4 to 20 mA and RS485 outputs.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
This series is an intelligent rotary (Roots) gas flow meter for clean gases. A pair of conjugate rotors, kept in correct relative position by precision timing gears, is driven by the differential pressure of the gas; each revolution displaces a fixed volume, giving a direct volumetric measurement.
The integrated flow totalizer measures temperature and pressure and automatically corrects the volume to standard conditions. The meter is mainly used for natural gas custody transfer and for industrial gas consumption metering.
Key features
- Positive displacement measurement, accuracy ±1.0 %, repeatability ±0.2 % or better
- Built-in temperature and pressure sensors with automatic correction to standard volume (20 °C, 101.325 kPa)
- Low start-up flow and wide flow range
- Pulse, 4 to 20 mA and RS485 (Modbus) outputs; IoT remote transmission and prepaid (IC card) options
- Mechanical counter, electronic totalizer or combined mechanical and electronic display
- Aluminium alloy or cast iron housing, aluminium alloy rotors
Technical data
| Model | AG-FLW-114 series: AG-FLW-114-G4 / G6 / G10, AG-FLW-114-25-G16, AG-FLW-114-40-G25, AG-FLW-114-50-G40, AG-FLW-114-50-G65, AG-FLW-114-80-G100, AG-FLW-114-80-G160, AG-FLW-114-100-G250, AG-FLW-114-100-G400 |
| Nominal diameter | DN15 to DN100 (DN15 / DN20 / DN25 for G4 to G10) |
| Flow range G4 / G6 / G10 | 0.5 to 6 m³/h; 0.5 to 10 m³/h; 0.5 to 16 m³/h |
| Flow range G16 / G25 / G40 | 1 to 25 m³/h (DN25); 1 to 40 m³/h (DN40); 2 to 65 m³/h (DN50) |
| Flow range G65 / G100 / G160 | 2 to 100 m³/h (DN50); 2.5 to 160 m³/h (DN80); 3 to 250 m³/h (DN80) |
| Flow range G250 / G400 | 3 to 400 m³/h (DN100); 4 to 650 m³/h (DN100) |
| Accuracy | ±1.0 % |
| Repeatability | ≤ ±0.2 % |
| Nominal pressure | 1.6 MPa (G4 to G10: operating pressure 0.7 MPa); higher ratings on request |
| Output | Pulse and RS485 (all); 4 to 20 mA |
| Display | Instantaneous flow, total flow, temperature and pressure |
| Materials | Housing aluminium alloy or cast iron; rotors aluminium alloy |
| Installation | Horizontal standard, vertical optional; top-in / bottom-out or left-in / right-out |
| Protection | IP65 |
Applications
- Natural gas custody transfer at gate stations, commercial and industrial customers
- Compressed air, nitrogen, oxygen, argon and other industrial gases
- Biogas, coalbed methane and other recovered gases
- Pressure regulating and metering stations
- Reference meter for gas meter test benches
Hazardous areas
Explosion-proof (type E) and intrinsically safe (type S) versions are declared by the manufacturer. Ex marking and certificates (ATEX / IECEx where applicable) are provided on request with the quotation.
Supplied on quotation and configured to your process data (range, process connection, materials, output, options). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-FLW-114
Data sheet
- Accuracy
- ±1.0 %
- Output
- Pulse / 4 to 20 mA / RS485 Modbus
- Process connection
- DN15 to DN100
- Protection
- IP65
- Measuring principle
- Positive displacement (Roots rotors)
- Max. pressure
- 1.6 MPa standard
