Pressure Transmitter (2088-type, -0.1 to 100 MPa, Ex ia IIC T6)
2088-type gauge, absolute or sealed gauge pressure transmitter with oil-filled piezoresistive silicon sensor, ranges from -0.1 to 100 MPa, 4 to 20 mA / voltage / RS485 outputs and cast aluminium housing.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

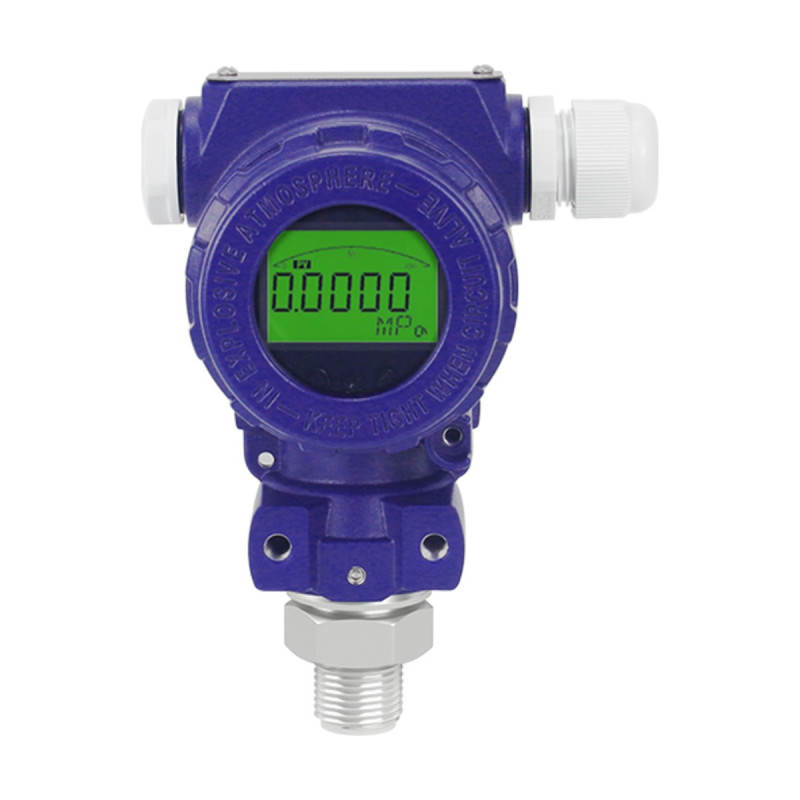

The AG-PRS-102 is a 2088-type industrial pressure transmitter using an oil-filled piezoresistive silicon sensor with a 316L diaphragm. The signal conditioning electronics, housed in a cast aluminium enclosure, convert the sensor signal into a standard current, voltage or RS485 output.
Each unit undergoes component and semi-finished product testing and burn-in screening of the finished product. The design offers strong immunity to interference for long-term operation in harsh field conditions, with a wide choice of ranges, process connections and electrical connections.
Key features
- Gauge, absolute and sealed gauge versions
- Ranges from -0.1 MPa vacuum up to 100 MPa
- Outputs 4 to 20 mA, 0 to 10/20 mA, 0/1 to 5 VDC, 0 to 10 VDC, 0.5 to 4.5 VDC or RS485
- 316L diaphragm and fluororubber O-ring; stainless steel process connection
- Cast aluminium 2088 housing, LED display option
- Intrinsically safe version marked Ex ia IIC T6
Technical data
| Model | AG-PRS-102 |
| Pressure type | Gauge / absolute / sealed gauge |
| Measuring range | -0.1 to 0 MPa up to 0 to 0.01... 100 MPa |
| Accuracy | ±0.25 % FS typical; ±0.5 % FS max. |
| Long-term stability | ±0.2 % FS per year |
| Proof pressure | 1.5 x rated pressure or 110 MPa, whichever is less |
| Output | 4 to 20 mA; 0 to 10 / 0 to 20 mA; 0 to 5 / 1 to 5 VDC; 0 to 10 VDC; 0.5 to 4.5 VDC; RS485 |
| Power supply | 15 to 30 VDC (5 VDC versions available for low-voltage outputs) |
| Process connection | M20 x 1.5 male standard; G1/2 or G1/4 male; 7/16-20 UNF female; flange on request |
| Wetted materials | Body 1Cr18Ni9Ti stainless steel; diaphragm 316L; O-ring fluororubber (FKM) |
| Electrical connection | DIN connector; PG7 connector; 1.5 m cable; 2088 housing with or without LED display |
| Operating temperature | -20 to +80 °C |
| Insulation resistance | 100 MΩ at 100 VDC |
| Protection | IP65 |
Applications
- Process pressure monitoring in refineries and chemical plants
- Boiler, steam network and pump pressure in power plants
- Water supply networks and wastewater treatment
- Compressed air systems and machine pressure protection
- HVAC and refrigeration systems
Hazardous areas
Intrinsically safe version (Ex ia IIC T6) is declared by the manufacturer. Certificates (ATEX / IECEx where applicable) are provided on request with the quotation.
Supplied on quotation and configured to your process data (range, process connection, materials, output, options). Datasheet available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-PRS-102
Data sheet
- Hazardous area
- Ex ia IIC T6 (declared)
- Accuracy
- ±0.25 % FS typical
- Output
- 4 to 20 mA / voltage / RS485
- Measuring principle
- Piezoresistive silicon (oil-filled)
- Max. pressure
- 100 MPa
- Wetted material
- 316L diaphragm / stainless steel
