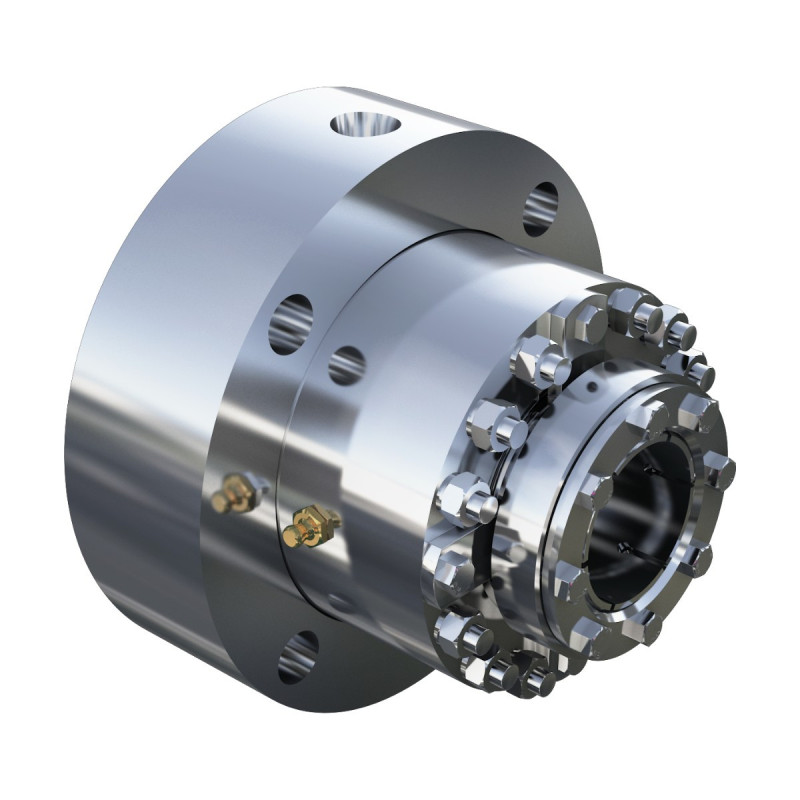

COLOSSUS C550 Heavy-Duty Slurry Cartridge Mechanical Seal

Heavy-duty cartridge seal configured for slurry. Made in China.

Request a quote

Request a quote for this product now, or add several products to your quote list and send one request. Prices, lead times and certification documents are provided on request. You can also use our contact form (please mention the reference COLOSSUS-C550).

  Certified equipment

ATEX / IECEx documentation supplied where stated

  Worldwide delivery

Incoterms agreed in each quotation

  Quotation first

Price, lead time and certificates in every offer

Heavy-duty cartridge seal configured for slurry. The stationary face design limits abrasion of the seal faces by the slurry, and the external springs are kept out of the medium. A floating rotating ring absorbs pump vibration. Typical use: flue gas desulfurization plants in power stations. Without a support system it suits open seal chambers with up to 20 % solids; with an API 682 flush plan, up to 40 % solids.

Key features

  • Stationary face design that reduces abrasion by the slurry
  • External springs, not in contact with the medium
  • Floating rotating ring that tolerates pump vibration
  • Cartridge design for quick installation

Technical data

ModelC550
Size rangeSeal sizes 45 to 220 (shaft 22 to 200 mm)
Temperature-30 to +80 °C
PressureUp to 1.6 MPa (2.5 MPa with TU type stationary ring)
Sliding speedUp to 25 m/s (or 5000 rpm)
Solids contentUp to 20 % without flush, up to 40 % with API 682 flush plan

Materials

  • Seal faces: Reaction-bonded silicon carbide against sintered silicon carbide
  • Springs: Cr-Ni steel or Cr-Ni-Mo steel
  • Metal parts: Cr-Ni-Mo steel or duplex stainless steel
  • Secondary seals: NBR, EPDM, FKM or FFKM

Other material combinations are available on request for specific media.

Applications

  • Flue gas desulfurization
  • Mining and slurry pumps
  • Oil and gas, shale oil and gas
  • Chemical
  • Metallurgy
  • Water treatment

Standards

Reference standards listed by the manufacturer: API Std 682, JB/T 4127. Certificates and test reports are provided with the quotation where applicable.

Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.

COLOSSUS-C550

Data sheet

Temperature range
-30 to +80 °C
Seal type
Cartridge slurry seal
Shaft diameter
22 to 200 mm
Max pressure
1.6 MPa (2.5 MPa option)
Solids content
Up to 40 % with flush
