COLOSSUS CGS-P72+75 Gas Seal Support Panel (API 682 Plans 72 + 75)

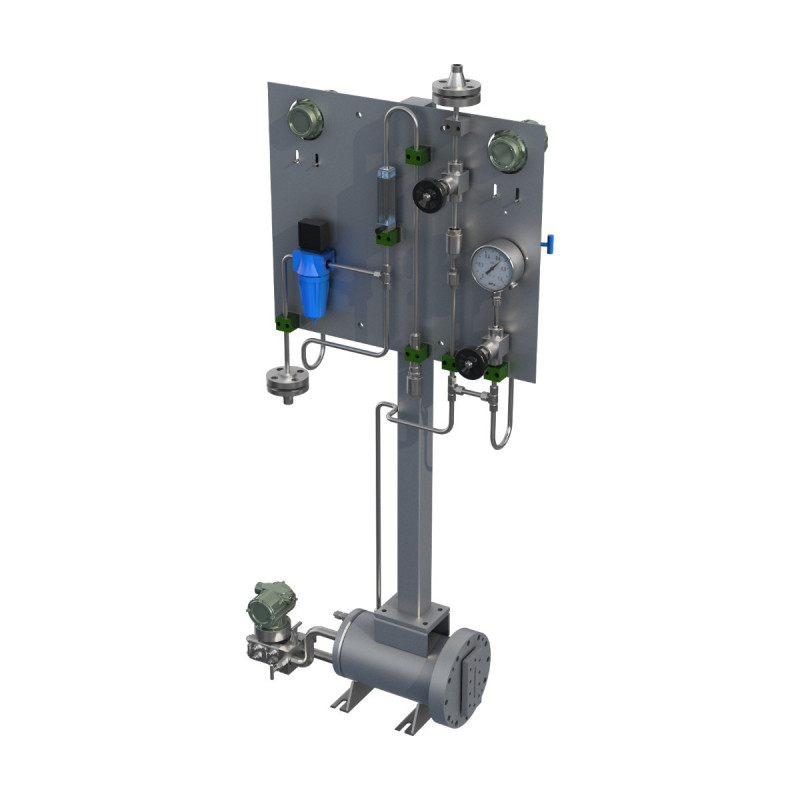

Panel mounted support system for dry gas containment seals, configured to API 682 (2014) plans 72 + 75. Buffer gas passes a filter, pressure regulator, restriction orifice and flow meter, giving a nitrogen environment to the secondary seal, diluting primary seal leakage and sweeping it to a collection tank. Vapour goes to the flare line and liquid collects in the tank, which drains through a bottom valve. For media that condense at ambient temperature.

Key features

• Panel layout for easy reading and instrument maintenance
• Configured to API 682 (2014), with remote transmitters as required
• All stainless steel, for long-term outdoor use
• Compression fittings: quick connection, no hot work on site

Technical data

Materials

• Panel: 304 or 316L stainless steel
• Piping and valves: 316L stainless steel

Applications

• Petroleum and petrochemical
• Chemical and pharmaceutical
• Metallurgy and mining
• Nuclear power
• Water treatment

Standards

Reference standards listed by the manufacturer: API 682 (plans 72 + 75). Certificates and test reports are provided with the quotation where applicable.

Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
