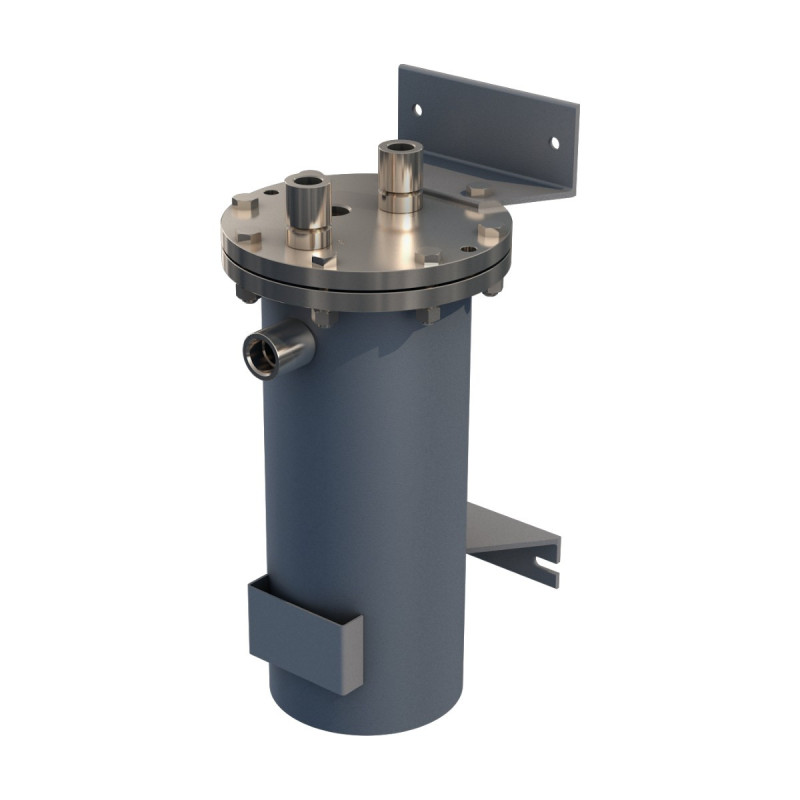

COLOSSUS HR(L) Seal Flush Heat Exchanger (API 682 Plans 21 / 23 / 41)

Double coil heat exchanger for seal flush plans such as API 682 plans 21, 23 and 41. It cools the process flush to a suitable temperature so the mechanical seal runs within its temperature range, and can also cool other fluids. Vertical or horizontal installation.

Key features

• Raises the vapour pressure margin in the seal chamber
• Meets temperature limits of secondary seals and reduces coking and polymerization
• Adjusts flush flow through a suitable differential pressure
• Removes only seal face heat and process heat soak, for an efficient flush plan and longer exchanger life

Technical data

Materials

• Shell: Carbon steel, 304 or 316L stainless steel
• Coil: 304 or 316L stainless steel

Applications

• Petroleum and petrochemical
• Chemical and pharmaceutical
• Metallurgy and mining
• Nuclear power
• Water treatment

Standards

Reference standards listed by the manufacturer: API 682 (plans 21 / 23 / 41). Certificates and test reports are provided with the quotation where applicable.

Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
