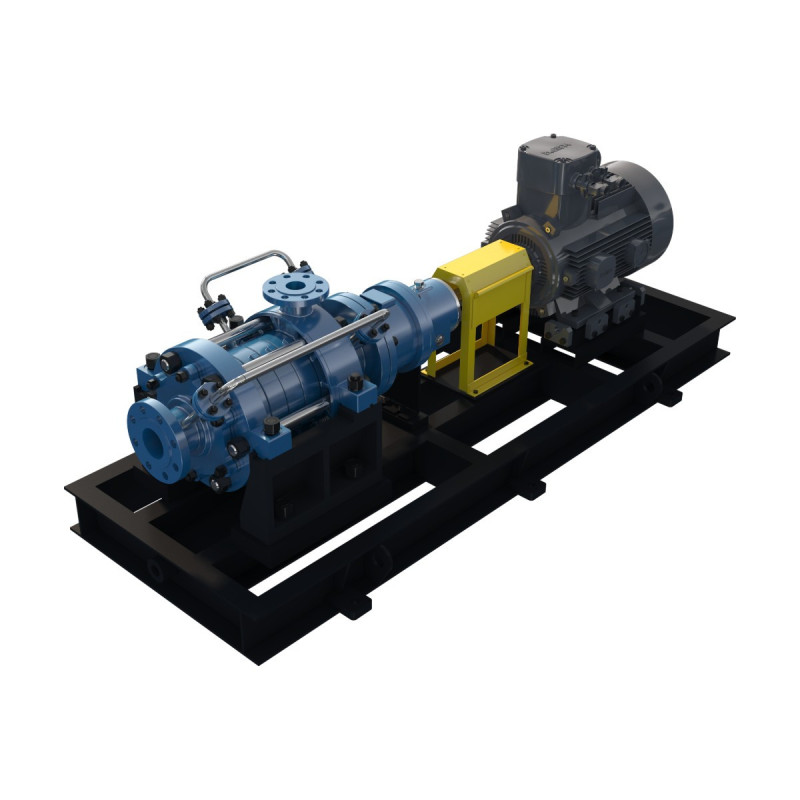

COLOSSUS CNAD Multistage Magnetic Drive Pump (low flow, high head)
Multistage magnetic drive pump with double support structure, balance plate on the whole range and an independent circulation system (high pressure in, high pressure out). Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Multistage magnetic drive pump with double support structure, balance plate on the whole range and an independent circulation system (high pressure in, high pressure out). Axial suction and vertical discharge, with an inducer to lower NPSH. Designed for low flow, high head duties in the petrochemical industry.
Key features
- Simple installation, use and maintenance, long service life
- Maximum operating temperature 260 °C
- Flexibly mounted shaft sleeve, not damaged by high temperature
- Patented automatic axial force balance
- Inducer to reduce NPSH required
- Low noise and vibration
Technical data
| Model | CNAD |
| Flow | Up to 80 m³/h |
| Head | Up to 500 m |
| Minimum NPSH | 0.7 m |
| Temperature | -40 to +260 °C |
Materials
- Shaft sleeve and thrust plate: Tungsten carbide (YWN8), sintered SiC or graphite-loaded SiC
- Magnets: Samarium cobalt (Sm2Co17)
Applications
- Petroleum and petrochemical
- Natural gas and metallurgy
- Power and nuclear
- Pharmaceutical and food
- Water treatment
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-CNAD
Data sheet
- Temperature range
- -40 to +260 °C
- Pump type
- Multistage magnetic drive
- Max flow
- 80 m³/h
- Max head
- 500 m
- Magnets
- Samarium cobalt
