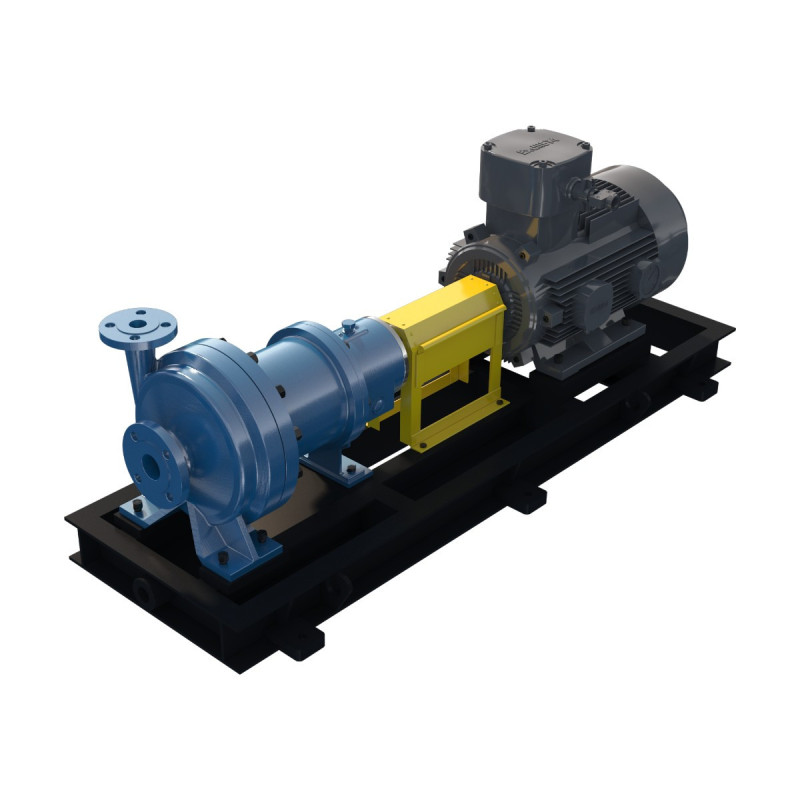

COLOSSUS CSB Partial Emission (Low Flow, High Head) Magnetic Drive Pump
Overhung partial emission magnetic drive pump with open impeller, in single-stage and two-stage versions. Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Overhung partial emission magnetic drive pump with open impeller, in single-stage and two-stage versions. The motor drives the pump shaft through a diaphragm coupling. Built for low flow, high head duties in the petrochemical industry as a low cost alternative to multistage pumps, for clean liquids or liquids with particles, at low temperature and not easily vaporized.
Key features
- Can be supplied fully insulated
- Low cost alternative to multistage pumps for low flow, high head
- Single-stage and two-stage versions
- Not for easily vaporized media
Technical data
| Model | CSB (Single-stage, two-stage) |
| Flow | Up to 30 m³/h |
| Head | Up to 300 m |
| Temperature | Up to 260 °C |
Materials
- Shaft sleeve and thrust plate: Tungsten carbide (YWN8), sintered SiC or graphite-loaded SiC
- Magnets: Samarium cobalt (Sm2Co17)
Applications
- Petroleum and petrochemical
- Fire protection
- Power and nuclear
- Water treatment
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-CSB
Data sheet
- Max temperature
- 260 °C
- Pump type
- Partial emission magnetic drive
- Max flow
- 30 m³/h
- Max head
- 300 m
- Impeller
- Open
