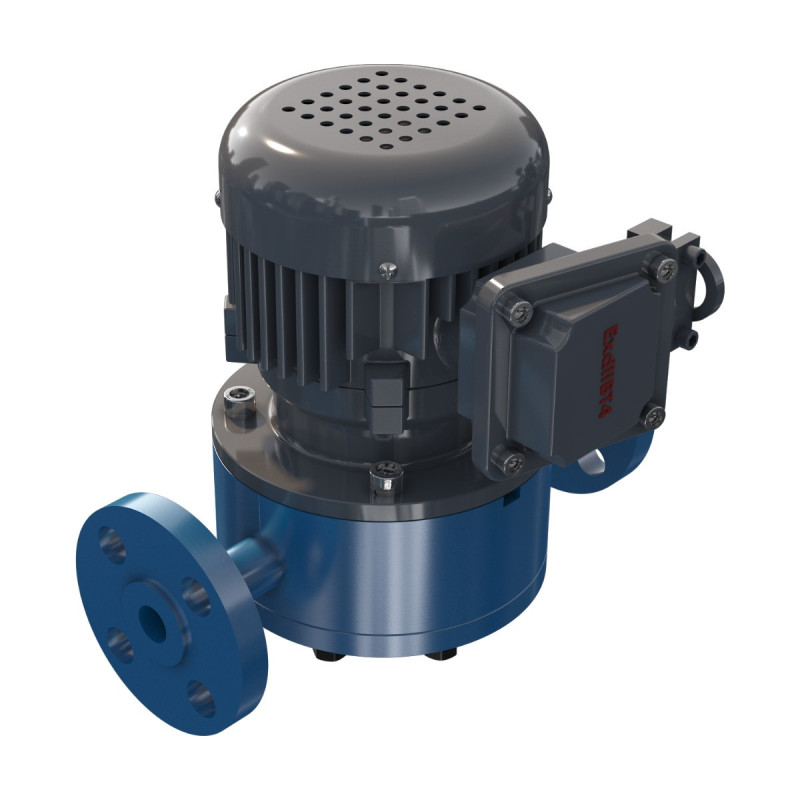

COLOSSUS CX Magnetic Drive Circulation Pump for Seal Support Systems
Close-coupled magnetic drive circulation pump that circulates the barrier or buffer fluid of mechanical seal support systems to improve cooling. Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Close-coupled magnetic drive circulation pump that circulates the barrier or buffer fluid of mechanical seal support systems to improve cooling. Inner and outer magnet drive, compact design, precision cast impeller and casing for high temperature and high pressure. All models have explosion-proof motors for flammable and explosive areas. For water and similar low viscosity fluids.
Key features
- Simple structure, reliable performance
- Low noise and vibration
- Explosion-proof motor on all models
- Seal-less magnetic drive, no leakage to atmosphere
Technical data
| Model | CX |
| Flow | 1.2 m³/h |
| Head | 6 m |
| Working pressure | Up to 12 MPa (manufacturer data) |
| Temperature | Up to 150 °C |
| Speed | 1450 rpm |
| Motor power | 180 W |
Materials
- Flange: 304 stainless steel
- Containment can: Titanium alloy
Applications
- Seal support systems (API 682 plans 53A / 53B / 53C)
- Petroleum and petrochemical
- Power and nuclear
- Marine and papermaking
- Natural gas and metallurgy
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-CX
Data sheet
- Max temperature
- 150 °C
- Pump type
- Magnetic drive circulation pump
- Flow
- 1.2 m³/h
- Head
- 6 m
- Motor
- Explosion-proof; 180 W
