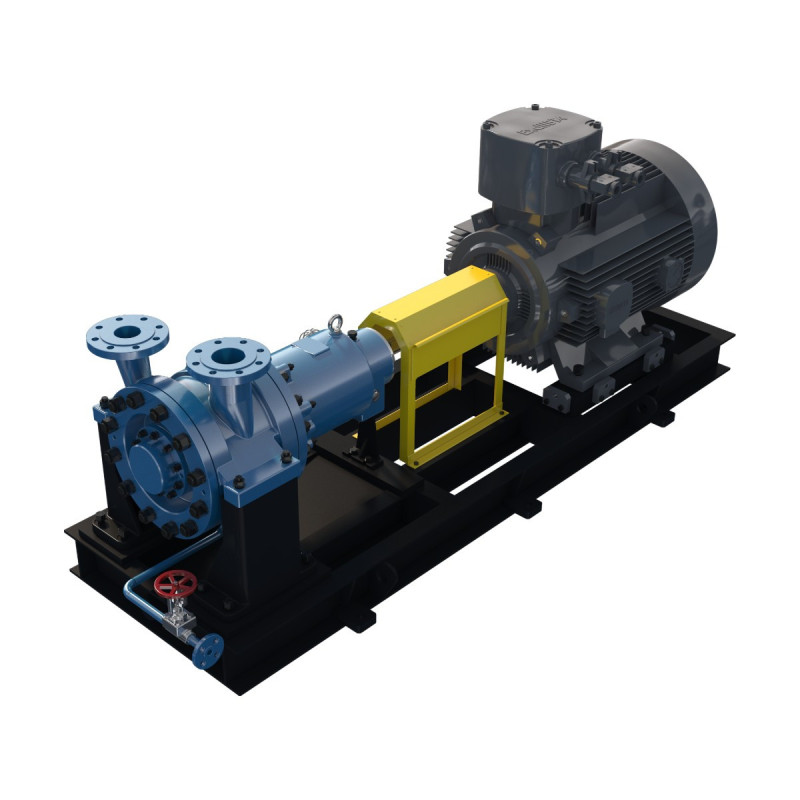

COLOSSUS CNY Two-Stage Magnetic Drive Pump
Two-stage, single suction overhung magnetic drive pump with vertical suction and vertical discharge (inline nozzles). Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Two-stage, single suction overhung magnetic drive pump with vertical suction and vertical discharge (inline nozzles). The motor drives the pump shaft through a diaphragm coupling, and the axial force and circulation systems are specific to this design. For clean media, and media with some solids, at low or high temperature, neutral or corrosive.
Key features
- Stable operation, simple structure, easy maintenance
- Serviced without moving the motor
- High efficiency
- Automatic axial force balance
- Double bearing support with independent bearing cooling
Technical data
| Model | CNY |
| Flow | Up to 100 m³/h |
| Head | Up to 240 m |
| Temperature | -40 to +260 °C |
Materials
- Shaft sleeve and thrust plate: Sintered SiC, graphite-loaded SiC or tungsten carbide (YWN8)
- Magnets: NdFeB or samarium cobalt (Sm2Co17)
Applications
- Petroleum and petrochemical
- Natural gas and metallurgy
- Power and nuclear
- Pharmaceutical and food
- Water treatment
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-CNY
Data sheet
- Temperature range
- -40 to +260 °C
- Pump type
- Two-stage magnetic drive
- Max flow
- 100 m³/h
- Max head
- 240 m
- Nozzles
- Vertical in / vertical out
