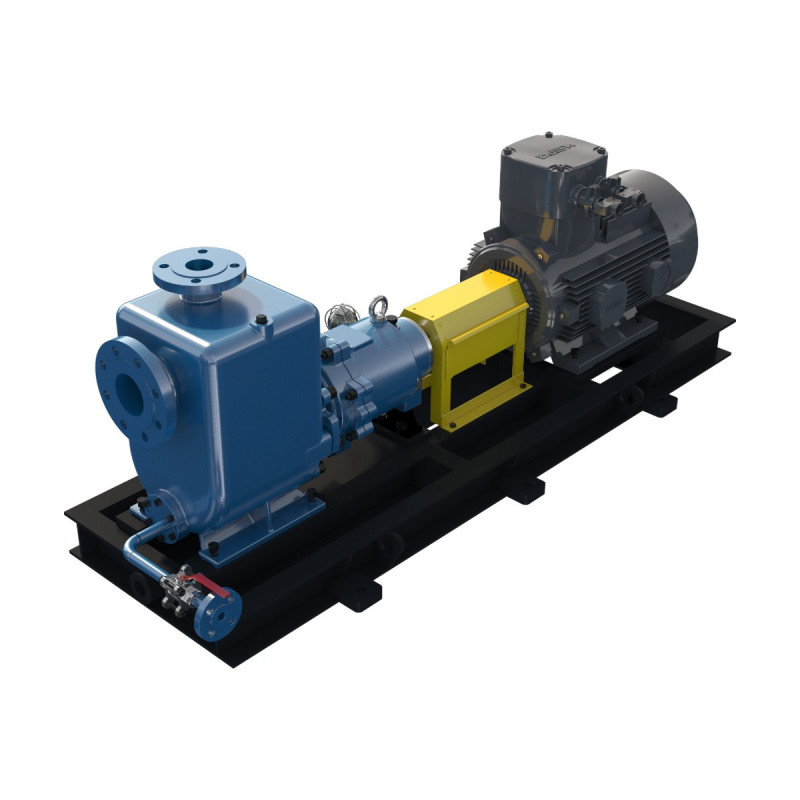

COLOSSUS CNAZ Self-Priming Magnetic Drive Pump
Horizontal self-priming magnetic drive pump with external mixing self-priming design, for clean neutral and corrosive media. Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Horizontal self-priming magnetic drive pump with external mixing self-priming design, for clean neutral and corrosive media. The motor drives the pump shaft through a diaphragm coupling, and the pump can be serviced without moving the motor.
Key features
- Short self-priming time, within 120 seconds
- Automatic axial force balance
- Low noise and vibration
- Simple structure, serviced without moving the motor
- High efficiency
- Seal-less magnetic drive
Technical data
| Model | CNAZ |
| Flow | Up to 200 m³/h |
| Head | Up to 80 m |
| Self-priming height | Up to 5 m |
| Temperature | Up to 260 °C |
Materials
- Shaft sleeve and thrust plate: Tungsten carbide (YWN8), sintered SiC or graphite-loaded SiC
- Magnets: Samarium cobalt (Sm2Co17)
Applications
- Petroleum refining and petrochemical
- Chemical and power plants
- Offshore and oil transfer
- Water treatment
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-CNAZ
Data sheet
- Max temperature
- 260 °C
- Pump type
- Self-priming magnetic drive
- Max flow
- 200 m³/h
- Max head
- 80 m
- Self-priming height
- Up to 5 m
