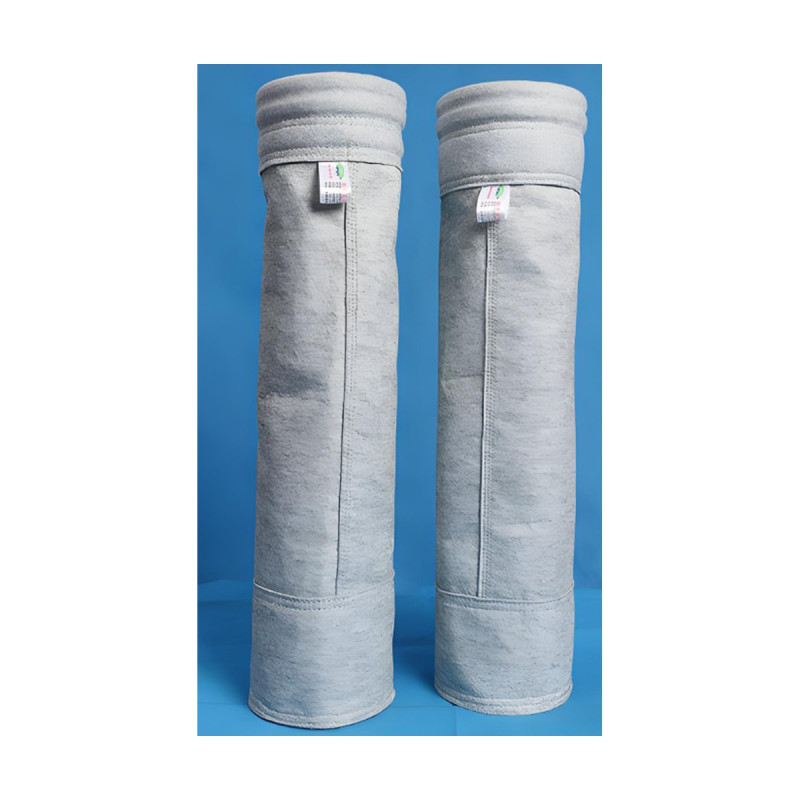

High-Performance Mixed Conductive Punched Felts
Polyester and carbon fiber blended conductive punched felt, 500 g/m², 1.65 mm thick, for service up to 130°C.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Product characteristics
Mixed conductive punched felts are made from a blend of polyester staple fiber and carbon fiber through opening, carding, web laying, pre-needling, high-speed upper and lower needling, singeing, calendering and heat setting. The blend improves the conductive performance of the filter bag and extends its service life.
Technical parameters
- Weight: 500 g/m²
- Material: carbon fiber / polyester filament base cloth
- Thickness: 1.65 mm
- Warp tensile strength: >1300 N/5x20 cm
- Weft tensile strength: >1500 N/5x20 cm
- Warp elongation: <25%
- Weft elongation: <50%
- Service temperature: ≤130°C
Post-treatment
Singeing, calendering, membrane coating.
Dimensions, materials, filtration rating and lead time are confirmed in our quotation. Custom sizes on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-FLT-203
