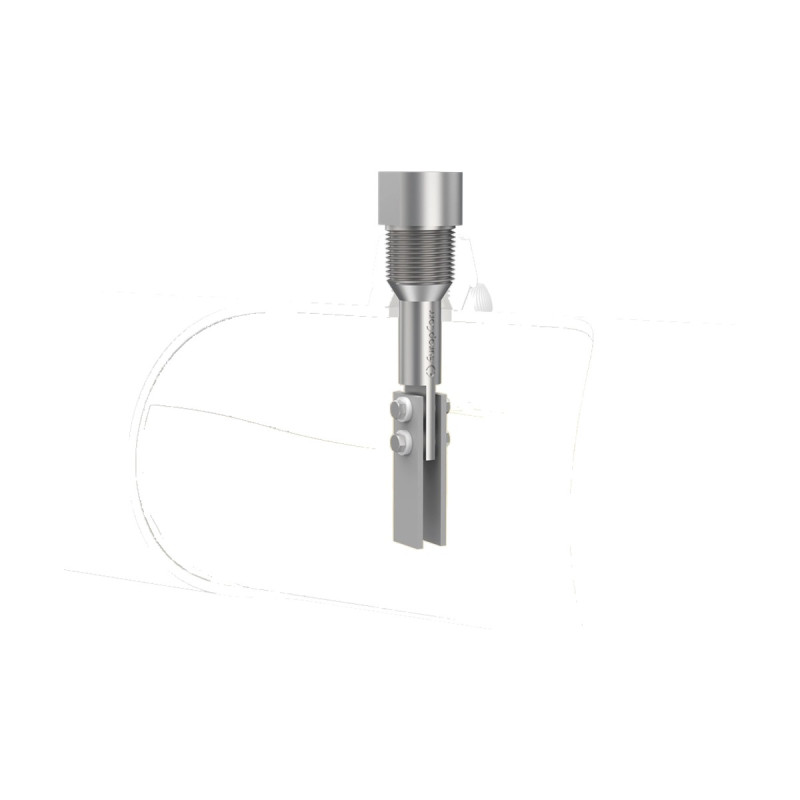

EuropCorr Fixed NPT Strip Coupon Holder
Fixed threaded strip coupon holder, 1/2" to 2" NPT, for strip or scale coupons in locations that can be isolated or depressurised.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
This fixed strip coupon holder screws into an NPT connection (1/2", 3/4", 1", 1-1/2" or 2"). It suspends a strip or scale coupon in the area to be monitored and is ideal where periodic shutdown, pigging or flow disturbance is not a concern; it can also be mounted in water traps.
The Fixed System is used in locations that can be isolated or depressurised before the holder is removed for coupon change-out. It installs and removes without any special tool and is available in NPT and flanged configurations.
Weight loss coupons are the simplest, least expensive and longest established method of estimating corrosion losses in operating systems. A coupon is a piece of metal of predetermined shape, size and surface area, usually of the same alloy as the monitored pipe or vessel; it is weighed, exposed to the process, cleaned and reweighed, and the weight loss is converted to a corrosion rate according to NACE RP0775, while visual examination shows pitting, scale and cracking.
Specifications
| General | |
|---|---|
| Manufacturer | EuropCorr (Italy) |
| Standards | ISO 9001, NACE MR0175 / ISO 15156; corrosion rate per NACE RP0775 |
| Configuration | Fixed, NPT threaded |
| Sizes | 1/2", 3/4", 1", 1-1/2", 2" NPT |
| Holder part numbers | 340077 (1"), 340078 (1-1/2"), other sizes: see datasheet |
| Coupon options | ||
|---|---|---|
| Item | Part No. | Details |
| 3" strip coupon, AISI 1018 | 340020 | 73 x 22 x 3 mm, exposed area 33.5 cm² |
| 6" strip coupon | 340022 | 152 x 22 x 3 mm, exposed area 73.5 cm² |
| 3" scale coupon, AISI 1018 | 340026 | 73 x 22 x 3.2 mm |
| 6" scale coupon | 340039 | 152 x 22 x 3.2 mm |
Please state the NPT size, coupon type and material in your quotation request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
EC-340077
