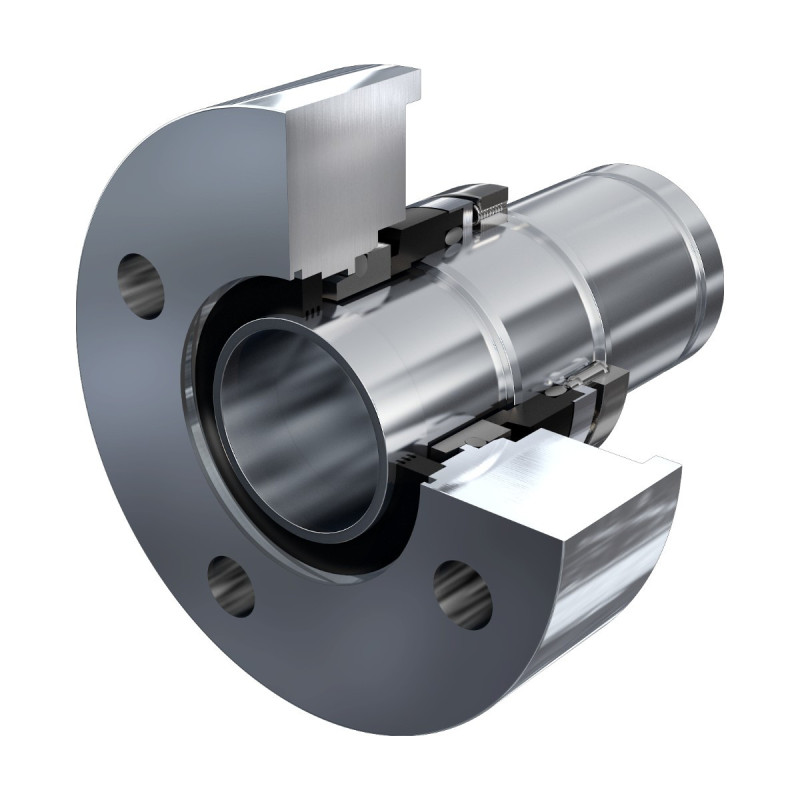

COLOSSUS C8 Multi-Spring Mechanical Seal (DIN 24960)

Multi-spring rotating mechanical seal with an integrated seal ring design. Connection dimensions comply with DIN 24960 and GB 6556, so it fits standard centrifugal pumps and other rotating shaft equipment. The compact design resists pressure and thermal deformation and keeps face distortion low at high pressure. Variants C8U, C8UV, C8B, C8BV and C8BKC cover different working conditions.

Key features

• Standardized design to DIN 24960 and GB 6556
• Multiple springs for good compensation and uniform face load
• Solid seal face sized to the DIN 24960 maximum
• Compound drive for lower friction damping and even torque transmission
• Set screw positioning for simple installation and adjustment

Technical data

Materials

• Seal faces: Resin-impregnated graphite, antimony-impregnated graphite, silicon carbide or tungsten carbide
• Springs: Cr-Ni steel, Cr-Ni-Mo steel or Hastelloy
• Metal parts: Cr-Ni steel or Cr-Ni-Mo steel
• Secondary seals: FKM (Viton), NBR, filled PTFE or FFKM

Other material combinations are available on request for specific media.

Applications

• Oil and gas, shale oil and gas
• Chemical and pharmaceutical
• Metallurgy
• Power and marine
• Water treatment
• Food

Standards

Reference standards listed by the manufacturer: API Std 682, JB/T 4127. Certificates and test reports are provided with the quotation where applicable.

Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
