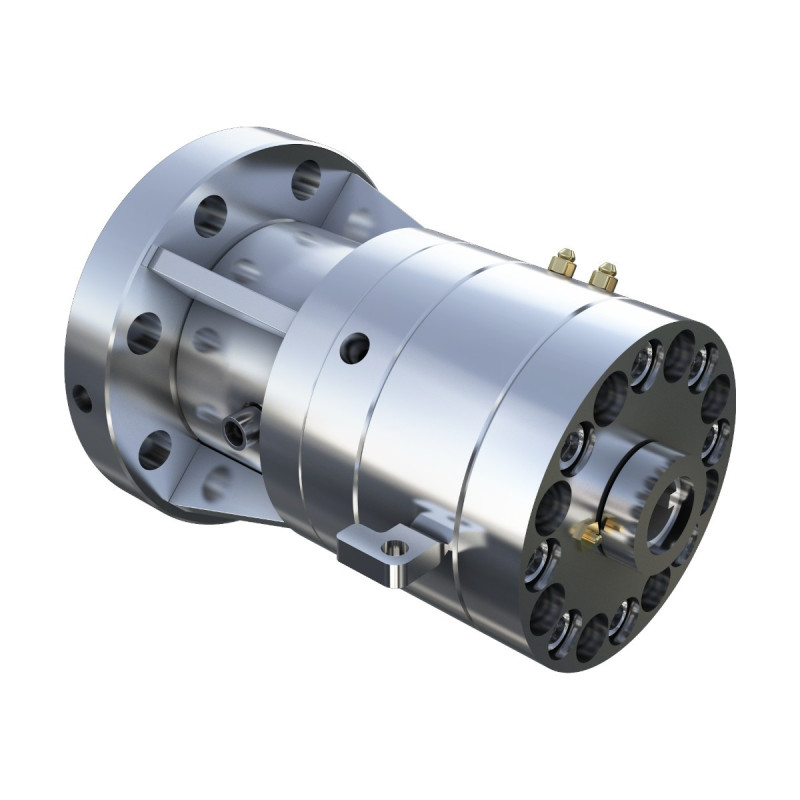

COLOSSUS CF35 Double Cartridge Seal for Agitators up to 4 MPa

Double cartridge mechanical seal for top-driven agitators and reactors up to 4 MPa, widely used in polypropylene plants. The double seal uses the same balanced structure on the product side and the atmosphere side, and installs simply as one unit. A bearing in the cartridge supports radial and axial loads and limits the effect of shaft runout on the seal.

Key features

• Double seal, balanced on product and atmosphere sides
• Multiple springs out of contact with the medium, for corrosive media
• Built-in roller bearing to support radial and axial loads

Technical data

Materials

• Seal faces: Graphite or resin-impregnated graphite against silicon carbide or tungsten carbide
• Springs: Cr-Ni steel or Cr-Ni-Mo steel
• Metal parts: Cr-Ni steel or Cr-Ni-Mo steel
• Secondary seals: FKM, PTFE-encapsulated FKM or FFKM

Other material combinations are available on request for specific media.

Applications

• Polypropylene and polymer plants
• Oil and chemical reactors
• Metallurgy
• Pharmaceutical and food
• Water treatment

Standards

Reference standards listed by the manufacturer: HG/T 2269. Certificates and test reports are provided with the quotation where applicable.

Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
