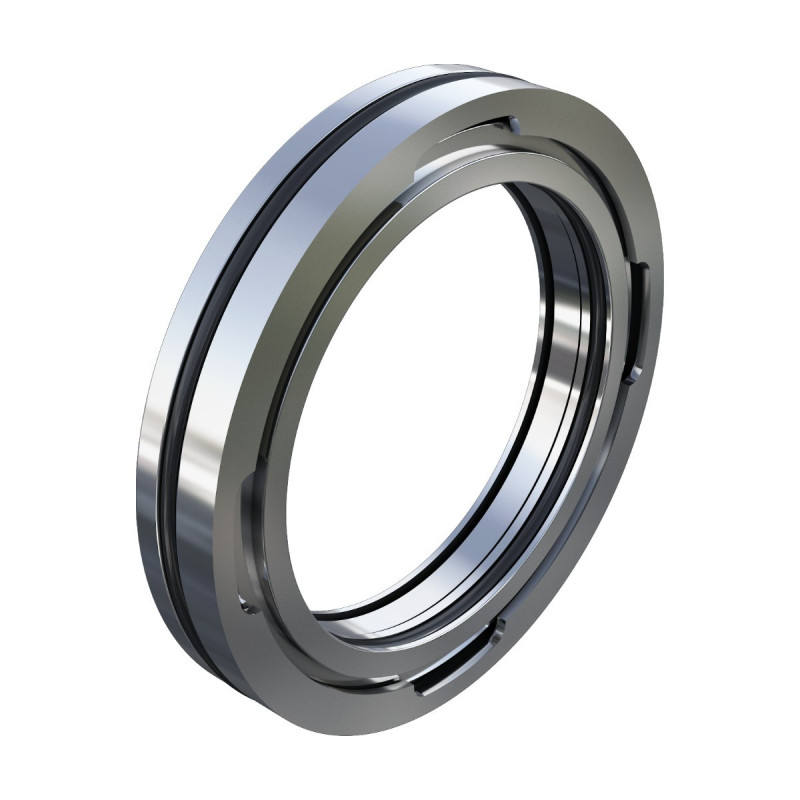

COLOSSUS CL30 Integral Magnetic Oil Seal for Bearing Housings
Magnetic face seal that replaces a standard lip oil seal with the same radial dimensions. Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Magnetic face seal that replaces a standard lip oil seal with the same radial dimensions. Permanent magnets keep the rotating and stationary rings in contact, and the one-piece stationary ring limits distortion. Lasts longer than a lip seal. Used on bearing housings, gearboxes, reducers and wherever dust must be kept out.
Key features
- Same radial dimensions as standard lip oil seals (GB/T 13871)
- One-piece module, patented, fast installation
- Magnetic face loading
- Dust-resistant design
- O-ring drive, no shaft damage
Technical data
| Model | CL30 |
| Shaft diameter | 30 to 145 mm |
| Temperature | Ambient |
| Pressure | 0 to 0.2 MPa |
| Speed | Up to 3000 rpm |
Materials
- Main parts: Graphite, chrome steel, carbon steel
- Elastomer: FKM (Viton)
Other material combinations are available on request for specific media.
Applications
- Bearing housings of pumps and motors
- Gearboxes and reducers
- Oil and gas, mining, metallurgy
- Marine, power and water treatment
Standards
Reference standards listed by the manufacturer: GB/T 13871. Certificates and test reports are provided with the quotation where applicable.
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-CL30
Data sheet
- Seal type
- Magnetic oil seal
- Shaft diameter
- 30 to 145 mm
- Max pressure
- 0.2 MPa
- Replaces
- Lip oil seal (same radial size)
- Max speed
- 3000 rpm
