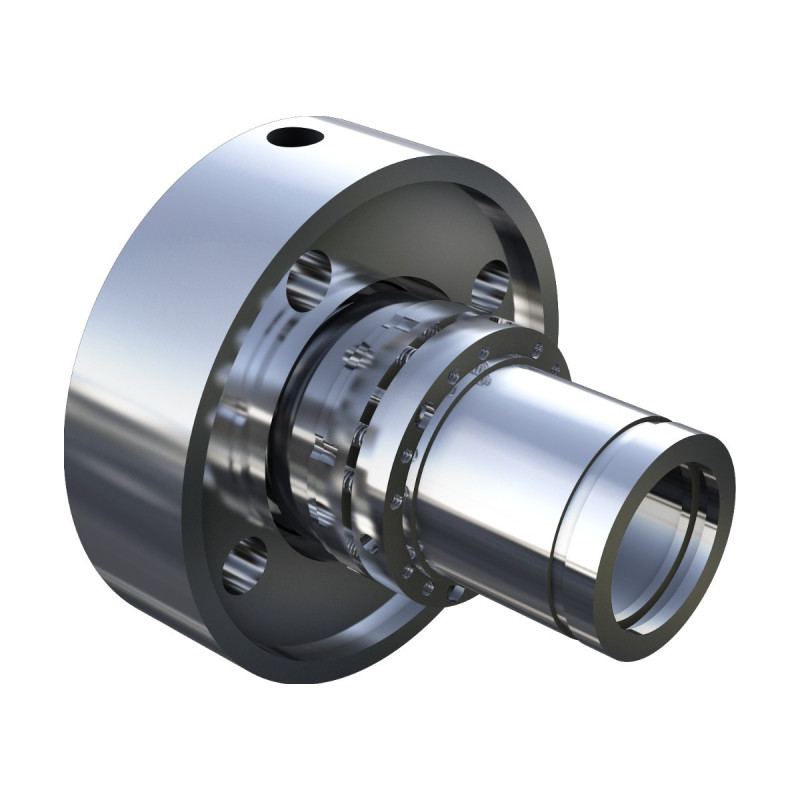

COLOSSUS C89 Multi-Spring Mechanical Seal for Lubricating Oils
Derivative of the C8 series designed for high viscosity oils such as lubricating oil, refrigeration oil and turbine oil, and often used as the outer seal of double seals. Made in China.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Derivative of the C8 series designed for high viscosity oils such as lubricating oil, refrigeration oil and turbine oil, and often used as the outer seal of double seals. The solid rotating face runs against a solid graphite stationary ring, which removes the effect of temperature gradients and keeps leakage low. Connection dimensions comply with DIN 24960 and GB 6556. Variants C89U, C89UV, C89B and C89BV.
Key features
- Standardized design to DIN 24960 and GB 6556
- Multiple springs for good compensation and uniform face load
- Optimized face design with low face distortion
- Set screw positioning for simple installation
Technical data
| Model | C89 (C89U, C89UV, C89B, C89BV) |
| Shaft diameter | 14 to 100 mm |
| Temperature | -30 to +180 °C |
| Pressure | 0 to 4.0 MPa (not for vacuum or negative pressure) |
| Sliding speed | Up to 25 m/s |
Materials
- Seal faces: Silicon carbide against resin-impregnated graphite
- Springs: Cr-Ni steel or Cr-Ni-Mo steel
- Metal parts: Cr-Ni steel or Cr-Ni-Mo steel
- Secondary seals: FKM, NBR, PTFE-coated or PTFE
Other material combinations are available on request for specific media.
Applications
- Oil and gas
- Chemical and pharmaceutical
- Metallurgy
- Nuclear
- Water treatment
- Food
Standards
Reference standards listed by the manufacturer: API Std 682, JB/T 4127. Certificates and test reports are provided with the quotation where applicable.
Supplied on quotation and configured to your requirements (size, materials, operating conditions). Manufacturer data sheet and dimension tables available on request.
COLOSSUS-C89
Data sheet
- Temperature range
- -30 to +180 °C
- Seal type
- Multi-spring pusher seal
- Connection standard
- DIN 24960 / GB 6556
- Shaft diameter
- 14 to 100 mm
- Max pressure
- 4.0 MPa
