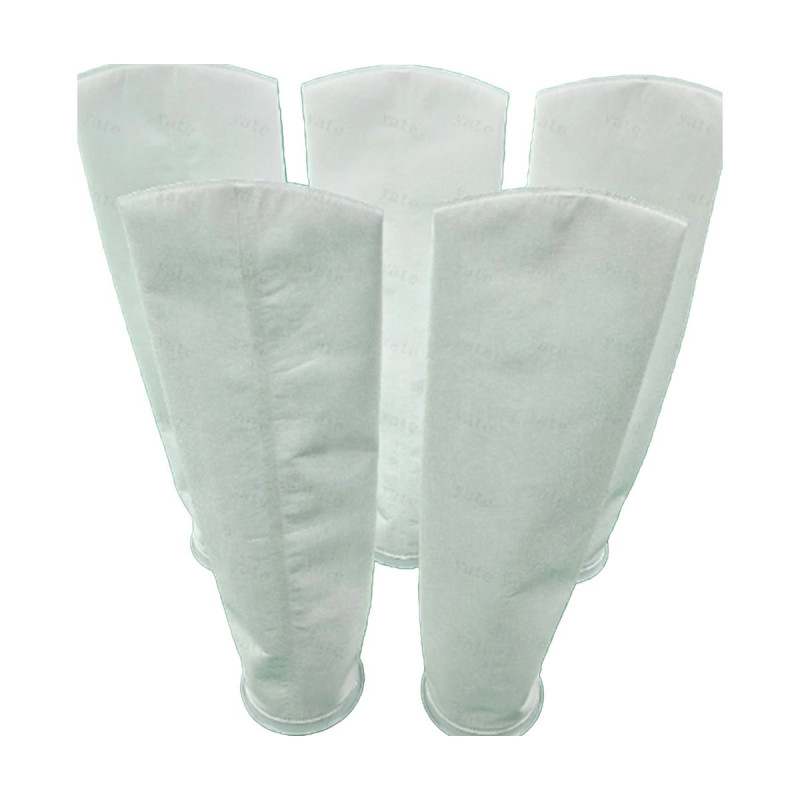

Polyester-Based Anti-Static Punched Felts
Anti-static polyester punched felt with conductive fiber, 500 g/m², 1.8 mm, for explosive dusts such as flour, chemical and coal dust up to 130°C.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
Product characteristics
Many industrial dusts can explode or ignite when their concentration reaches a certain level (the explosion limit) and they are exposed to an electrostatic discharge spark or other ignition source. For example, flour dust, chemical dust and coal dust can explode in the event of electrostatic discharge. Therefore, during production of these punched felts, conductive fiber is incorporated into the warp of the base cloth, or conductive fiber or conductive material is blended into the synthetic fiber to achieve the required conductivity.
Technical parameters
- Weight: 500 g/m²
- Material: polyester / polyester-based anti-static base cloth
- Thickness: 1.8 mm
- Air permeability: 15 m³/m²·min
- Warp tensile strength: >1300 N/5x20 cm
- Weft tensile strength: >1500 N/5x20 cm
- Warp elongation: <35%
- Weft elongation: <55%
- Service temperature: ≤130°C
Post-treatment
Singeing, calendering, membrane coating.
Dimensions, materials, filtration rating and lead time are confirmed in our quotation. Custom sizes on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
