Wafer Type Ball Valve with ISO 5211 Pad (PN16/40, Class 150, 1/2 to 8 in)

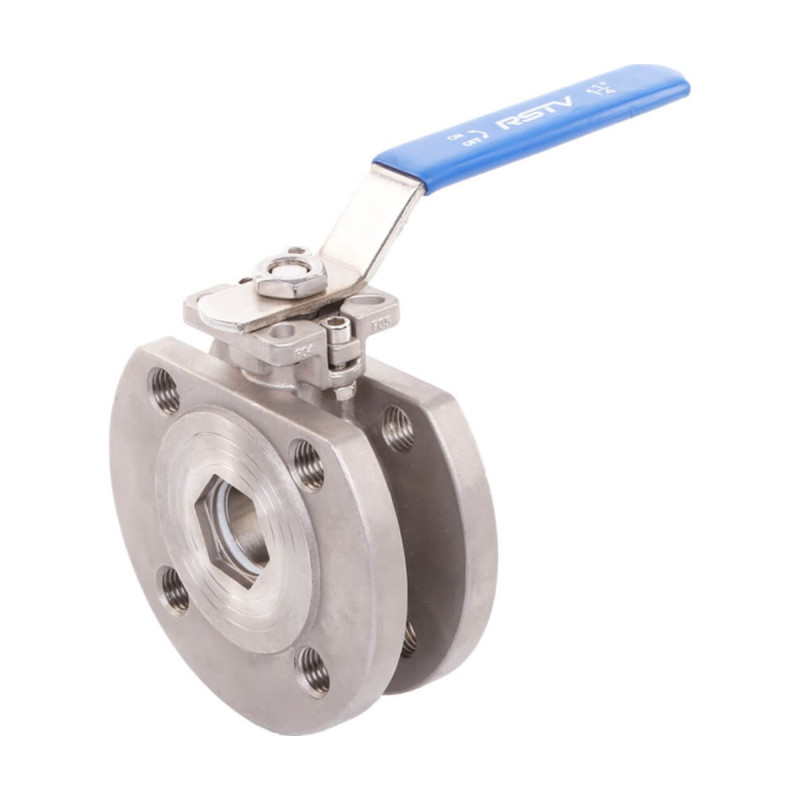

The wafer type ball valve is a short pattern full port ball valve clamped between two pipeline flanges. Its very short face to face makes it suited to installations where space is limited. It is offered with a standard top or with an ISO 5211 high mounting pad for pneumatic or electric actuators.

Key features

• Wafer body, very short face to face
• Full port, 1/2 to 8 in (DN15 to DN200)
• Investment cast body
• Blow-out proof stem
• Live-loaded stem packing with disc springs
• ISO 5211 direct (high) mounting pad
• Anti-static device and locking handle (options)

Technical data

Materials

• Body and bonnet: WCB, CF8 or CF8M
• Ball: CF8 or CF8M
• Stem: 304 or 316
• Seat: PTFE (RPTFE or PPL on request according to the web data)
• Packing: PTFE; O-ring FPM; disc springs 304

Applications

• Chemical processes (acids, alkalis, organic solvents)
• Oil and natural gas lines
• Water supply, drainage and sewage treatment
• Power plant cooling water and thermal lines

Standards and certification

Designed to JB/T 9092 and API 598 for inspection and testing according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.

Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.

Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
