2-PC Threaded Ball Valve, Optional ISO 5211 Pad (NPT / BSPT / BSP, 1000 WOG, 1/4 to 4 in)

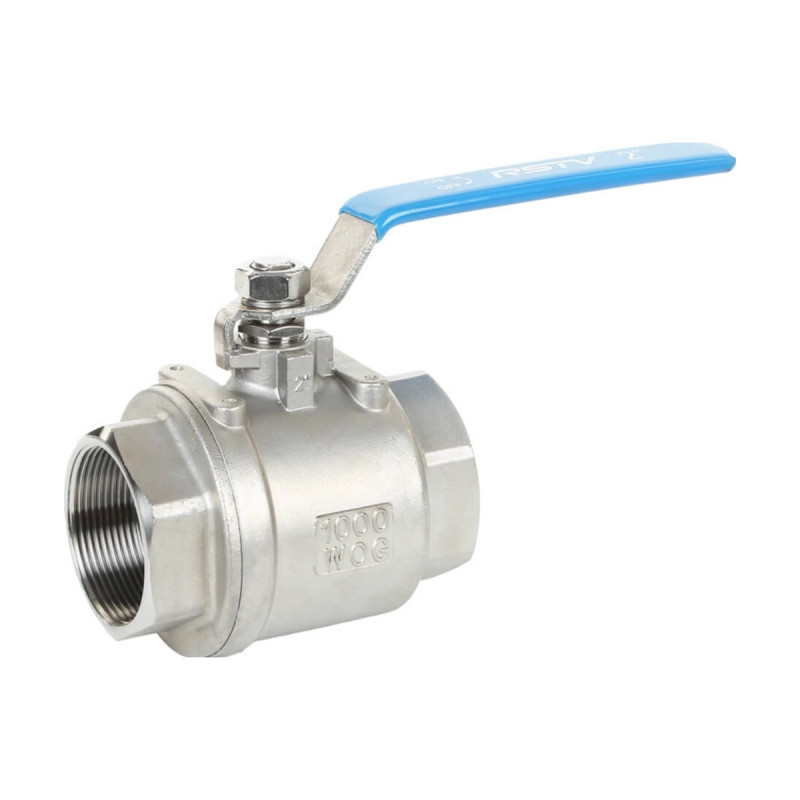

Two-piece investment cast full port ball valve with female threaded ends, 1000 WOG, 1/4 to 4 in. Lever operated or with ISO 5211 direct mounting pad for pneumatic or electric actuators.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The 2-PC threaded ball valve is a two-piece floating ball valve with female threaded ends, offered in carbon steel and stainless steel for on/off control of liquids and gases.
The two-piece body allows internal inspection and seat replacement. A version with ISO 5211 direct mounting pad and live-loaded stem packing accepts pneumatic or electric actuators without a bracket. Further catalogue variants cover DIN 3202-M3 face to face, standard port 2000 / 1500 WOG and a reduced port 600 WOG design.
Key features
- Two-piece investment cast body, floating ball
- Full port, 1/4 to 4 in (DN6 to DN100)
- Working pressure 1000 WOG (PN63)
- Blow-out proof stem
- Lockable lever handle available
- ISO 5211 direct mounting pad version with live-loading disc spring packing
- Anti-static device and automation accessories available on the mounting pad version
Technical data
| Type | Floating ball valve / 2-piece body; quarter turn |
| Size range | 1/4 to 4 in (DN6 to DN100) |
| Bore | Full port (standard port on 2000 WOG version; reduced port on 600 WOG version) |
| Pressure class | 1000 WOG (PN63); 2000 WOG 1/4 to 1 in and 1500 WOG 1-1/4 to 2 in (standard port version); 600 WOG (reduced port version) |
| Temperature range | -20 to +180 °C |
| Body material | WCB / CF8 (304) / CF8M (316) |
| Trim / seat | Ball CF8 or CF8M; stem 304 or 316; seat PTFE (RPTFE on 2000 WOG version) |
| End connection | Female threaded NPT (ASME B1.20.1); BSPT / BSPP (BS 21, ISO 7-1, ISO 228-1, DIN 259 / DIN 2999) |
| Face to face | Manufacturer standard; DIN 3202-M3 version available |
| Operation | Lever handle; ISO 5211 direct mounting pad for pneumatic or electric actuator |
| Testing | Pressure, PMI and dimension check before delivery |
| Options | Locking device; ISO 5211 mounting pad; anti-static device; automation accessories |
Materials
- Body / bonnet: WCB, CF8 (SS304) or CF8M (SS316)
- Ball: CF8 or CF8M
- Stem: 304 or 316
- Seat, gasket and packing: PTFE (RPTFE or PPL on request)
- Mounting pad version: stem washer and wear washer PTFE + 25 % glass fibre, FPM O-ring, 304 disc springs, CF8 gland flange
Applications
- Isolation on water, air, oil and gas utility lines
- Chemical and process piping with stainless steel trim
- Automated on/off duty with pneumatic or electric actuators (mounting pad version)
Standards and certification
Designed to ASME B1.20.1 (NPT), BS 21, ISO 7-1, ISO 228-1 and DIN 259 / DIN 2999 thread standards, ISO 5211 top flange and DIN 3202-M3 face to face (DIN version) according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-BV-108
Data sheet
- Size range
- 1/4 to 4 in (DN6 to DN100)
- Body material
- WCB / CF8 / CF8M
- Valve type
- Floating ball / 2-piece
- Pressure class
- 1000 WOG (PN63)
- End connection
- Female thread NPT / BSPT / BSPP
- Operation
- Lever / ISO 5211 pad for actuator
