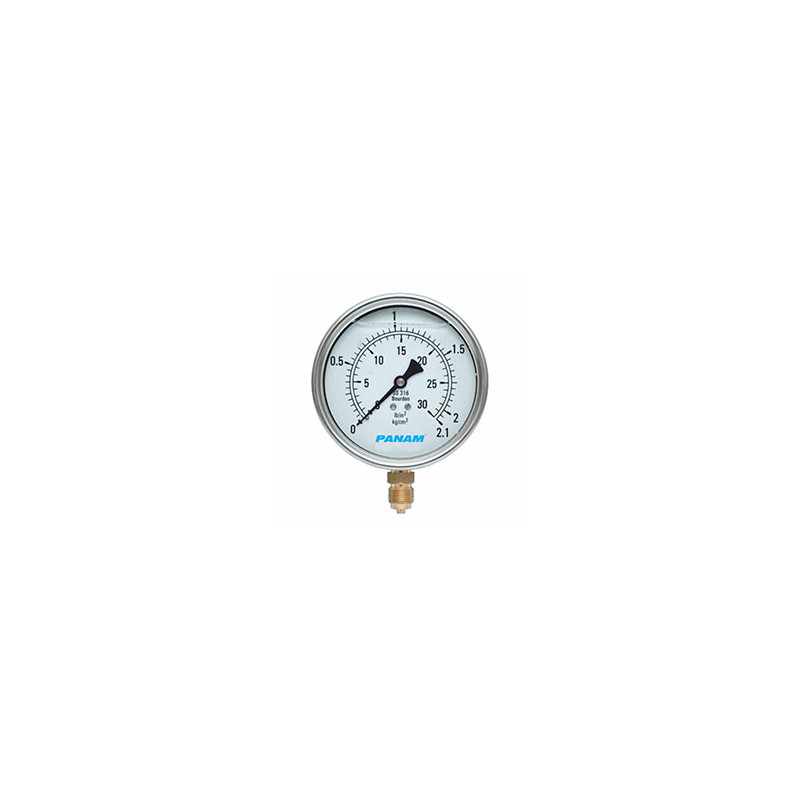

PANAM Liquid Filled Pressure Gauge PGFB
PGFB liquid filled pressure gauges, dial sizes 63 to 150 mm, filled with glycerin, silicon or halocarbon, IP54 to IP67, stem, panel or bracket mounting, 130% overload protection. NACE, dampener and gauge saver options.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The PANAM PGFB is a liquid filled pressure gauge. Liquid filling (glycerin, silicon, halocarbon or other upon request) is used where the gauge is exposed to vibration or pulsating pressure. It is part of the PANAM pressure gauge range with dial sizes from 63 mm to 150 mm.
The detailed model data sheet (ranges, dimensions and ordering code) is given in the PANAM pressure gauge catalogue attached below. PANAM pressure gauges can be combined with PANAM gauge valves, gauge savers, syphons and diaphragm seals to form a complete instrument hook-up; please send your range, connection and service conditions for a quotation.
Key features
- Liquid filled case: glycerin, silicon, halocarbon or other upon request
- Dial sizes 63 mm, 100 mm, 115 mm and 150 mm (others on request)
- Ingress protection according to IP54, IP65, IP66 or IP67
- Overload protection 130%
- Stem mounting as standard, panel, bracket or surface mounting on request
- NACE option for sour service
- Can be supplied with diaphragm seals, valves, electric contacts, dampener, gauge saver or syphon
Standard specification
| Model | PGFB |
|---|---|
| Product type | Liquid Filled Gauge |
| Wetted / case material (range) | SS 316 and SS 316L |
| Dial sizes (range) | 63 mm, 100 mm, 115 mm, 150 mm etc. |
| Protection | IP54 / IP65 / IP66 / IP67 |
| Filling | Glycerin, silicon, halocarbon or other upon request |
| Mounting | Standard stem; panel, bracket, surface or others on request |
| Overload protection | 130% |
| Options | NACE, diaphragm seals, valves, electric contacts, dampener, gauge saver, syphon |
Applications
Pressure measurement in oil and gas, refineries, petrochemical and chemical plants, power generation, offshore installations and general process industries.
Documentation
The manufacturer catalogue with the complete technical data and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-PG-PGFB
Data sheet
- Manufacturer series
- PGFB
- Product type
- Pressure gauge
- Size range
- 63 to 150 mm dial
- Pressure rating
- 130% overload protection
- Material
- SS 316 and SS 316L
- Origin
- India
