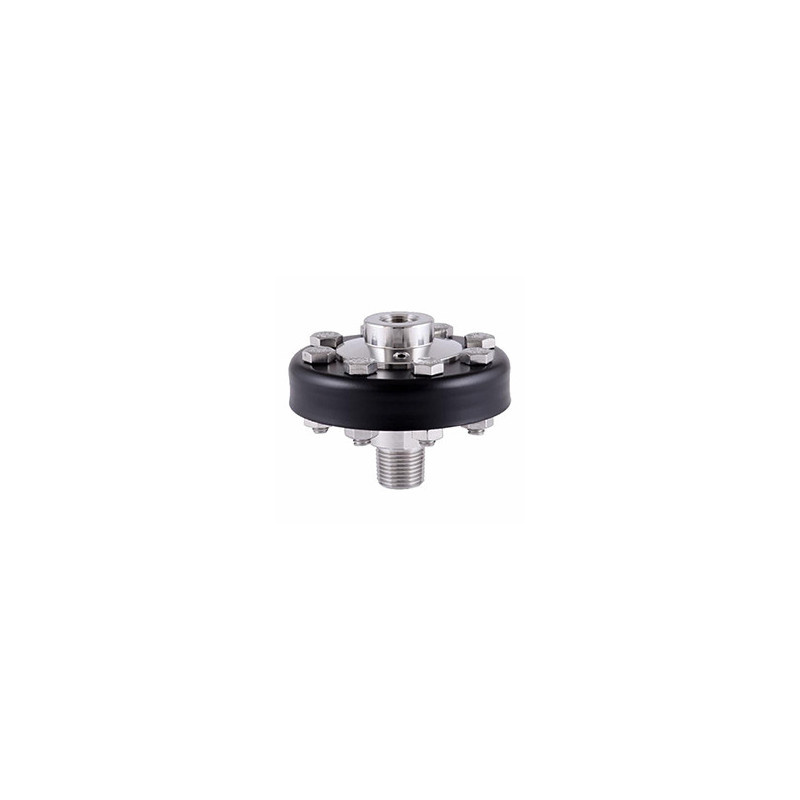

PANAM Threaded Diaphragm Seals PDS-TD (Large Diaphragm, up to 70 bar)
Threaded diaphragm seals with large diaphragm (Ø50, special Ø75 / Ø100), M20 x 1.5, 1/2" NPT M or G1/2" connection, measuring range up to 0...70 bar, 316SS, direct (up to 150 °C) or remote mounting (up to 315 °C).
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The PANAM PDS-TD threaded diaphragm seal with large diaphragm is designed for pressure measurement of viscous liquids. A typical application is the pressure of heavy fuel oil (atmospheric residue) in burners and heat centres of power boilers.
It connects directly to smart and analog pressure transmitters, or remotely through a capillary, and is made of 316SS (diaphragm and seal). Larger diaphragm versions (Ø75 and Ø100) reduce thermal errors for low ranges. Threaded type diaphragm seals for gauges (PDS20) are also shown in the PANAM pressure gauge catalogue.
Key features
- Large Ø50 diaphragm, special Ø75 and Ø100 versions for low ranges
- Process connection M20 x 1.5, 1/2" NPT male or G1/2"
- Direct or remote (capillary) mounting with pressure transmitters
- Suited to viscous media such as heavy fuel oil
- 316SS diaphragm and seal body
- Thermal zero error from 0.8 mbar / 10 °C (Ø100, direct)
Standard specification
| Model | PDS-TD |
|---|---|
| Diaphragm | Ø50 standard, Ø75 and Ø100 special versions |
| Process connection | M20 x 1.5, 1/2" NPT M, G1/2" (1/2" BSPP male in ordering code) |
| Maximum measuring range | 0...70 bar (higher pressures on request) |
| Overpressure limit | 110 bar (Ø50), 50 bar (Ø75), 40 bar (Ø100) |
| Min. measuring range | Direct 2.5 / 0.1 / 0.05 bar; remote 6 / 0.4 / 0.25 bar (Ø50 / Ø75 / Ø100) |
| Medium temperature | -10...150 °C direct seal, -10...315 °C remote seal |
| Material | 316SS diaphragm and seal |
| Fill fluids | Silicone DC200, DC704, DC705, Syltherm 800, Silicone 710, Neobee M20, glycerin, glycerin / water, deionized water, white mineral oil, halocarbon, food grade silicone, Flurolube (CF only) |
The PDS ordering code lists model (FF, ED, TD, CF), wetted material (SSL SS 316L, HC Hastelloy C276, NI Nickel, TA Tantalum, TI Titanium), PTFE coating, single or dual seal, process connection, flange extension length, capillary (direct or 5, 10, 20 m), accessories (flushing ring, flushing ring needle or ball valve) and fill fluid. For the threaded model use TD with connection 12 (1/2" NPT male) or 13 (1/2" BSPP male). Catalogue example: PDS-FF-SSL-0-1-01-100-D01-01-01 (flush flanged, SS 316L, no PTFE coating, single seal, 2" 150 RF, then extension, capillary, accessory and fill fluid codes).
Applications
Pressure measurement of viscous liquids, heavy fuel oil burners, boiler houses, refineries and process plants.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-DS-TD
Data sheet
- Manufacturer series
- PDS-TD
- Product type
- Threaded diaphragm seal
- Size range
- M20x1.5 or 1/2 in
- Pressure rating
- Up to 70 bar range
- Material
- 316SS
- Origin
- India
