PANAM Syphon PWS (U-Type and Q-Type, similar to DIN 16282)
Pressure gauge syphons similar to DIN 16282, U-type for horizontal and Q-type for vertical tapping, 1/4" to 1/2" NPT, BSPT, BSPP or M20 x 1.5, threaded or weld ends, SCH 40 / SCH 80, SS 304, SS 316, SS 316L or carbon steel A106.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

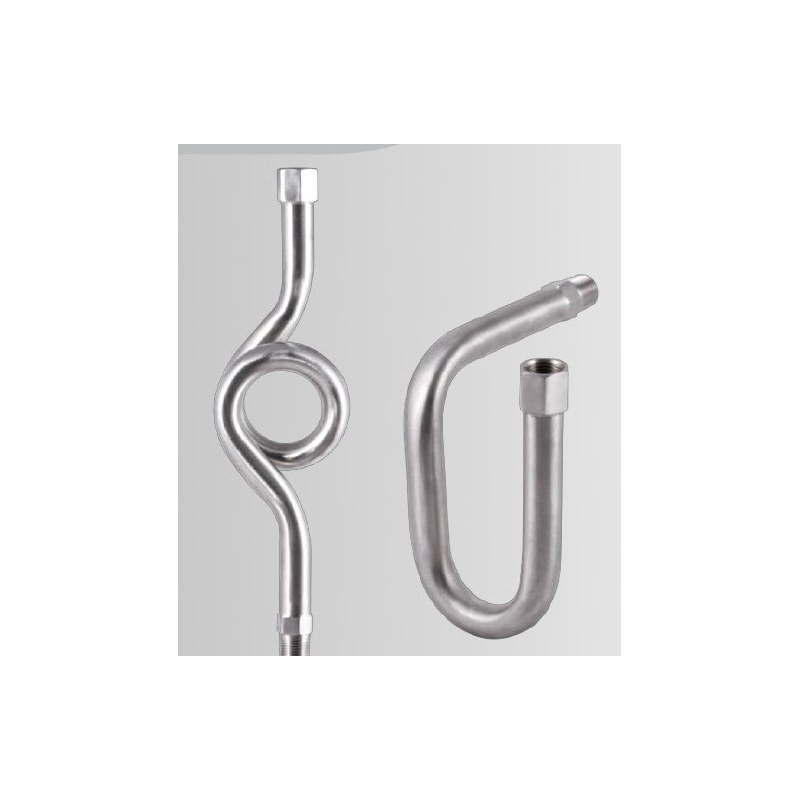

PANAM PWS syphons protect pressure measuring instruments from excessive heating by steam, hot liquids or gases and reduce the effect of rapid pressure surges. They are mounted between the process tapping (or shut-off valve / stop cock) and the instrument.
The U-type is used for horizontal tapping and the Q-type (pigtail) for vertical tapping. Syphons are made from SCH 40 or SCH 80 pipe in stainless steel or carbon steel, with threaded or weld ends on the process side.
Key features
- Similar to DIN 16282 / industrial standards
- U-type for horizontal tapping, Q-type for vertical tapping
- Protects instruments from direct heating and pressure surges
- Male, female or blank-for-weld ends
- SCH 40 or SCH 80 design
- Options: tagging, IBR certification, material certificate
Standard specification
| Model | PWS |
|---|---|
| Design | U-type SCH 40, Q-type SCH 40, Q-type SCH 80 |
| Connections | 1/4", 3/8", 1/2" NPT, BSPT or BSPP; M20 x 1.5; others on request |
| Forms (process x instrument) | M/F, M/M, F/F, F/B (blank for weld), M/B |
| Materials | SS 304, SS 316, SS 316L, carbon steel ASTM A106 |
| Pressure rating | 100 kg/cm2 at 100 °C down to 63 kg/cm2 at 400 °C |
| Media | Liquids, gas or steam |
Permissible pressure ratings
| Temperature | Pressure |
|---|---|
| 100 °C | 100 kg/cm2 |
| 150 °C | 95 kg/cm2 |
| 250 °C | 85 kg/cm2 |
| 300 °C | 80 kg/cm2 |
| 350 °C | 70 kg/cm2 |
| 400 °C | 63 kg/cm2 |
Order as PWS, connection, form (first character process side, second instrument side), material, design / schedule and options. Example: PWS 4N M/F S U40 CDIB (1/4" NPT, male x female, SS 316, U-type SCH 40, IBR certified).
Applications
Steam lines, boilers, hot liquid and gas service in power plants, refineries, petrochemical and process plants.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-SY-PWS
Data sheet
- Manufacturer series
- PWS
- Product type
- Pressure gauge syphon
- Size range
- 1/4 in to 1/2 in
- Pressure rating
- 100 kg/cm2 at 100 C
- Material
- SS 304 SS 316 SS 316L CS
- Origin
- India
