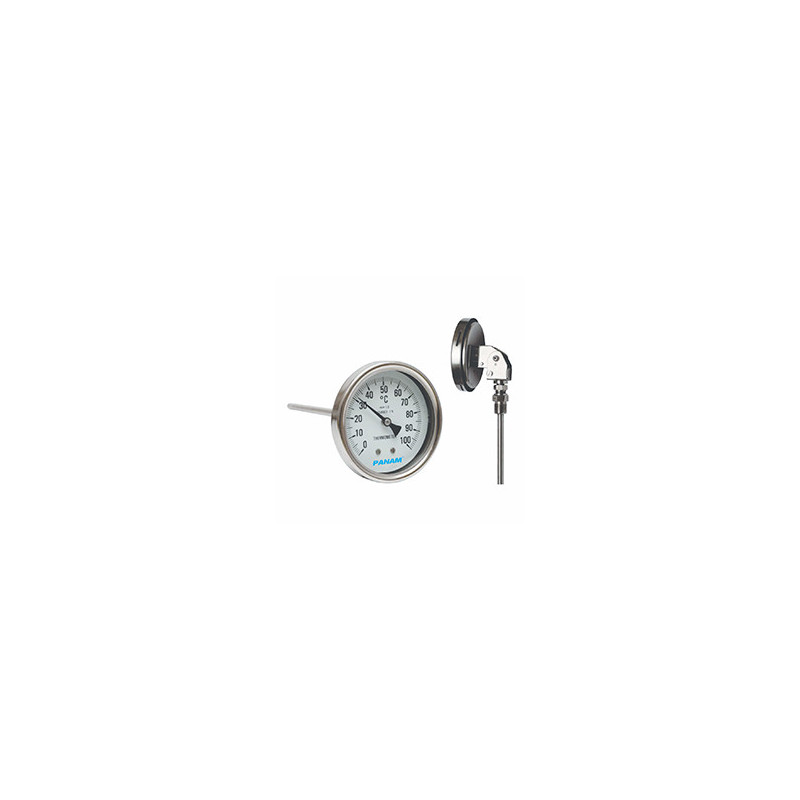

PANAM All Stainless Steel Bimetal Thermometer PBMT (Dial 63 to 160 mm)
All stainless steel bimetal thermometers, dial 63, 100, 115, 150 or 160 mm, ranges -50...50 °C up to 0...600 °C, accuracy Class 1 (EN 13190), back, lower or every angle connection, 1/2" to 1" BSP / NPT, IP65 to IP68, dry or silicone filled.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The PANAM PBMT is an all stainless steel bimetal thermometer using a bimetallic coil measuring element. It provides local temperature indication on pipes, vessels and machinery, with a rugged stainless steel construction, fast response and external zero adjustment.
The cylindrical case with bayonet ring is made of SS 304 (316L optional), the stem of SS 316L and the connection of SS 316. Stems are available in 6, 8, 10 or 12 mm diameter and 63 to 1000 mm length, with plain, fixed or adjustable union connections, and can be combined with PANAM thermowells.
Key features
- Rugged all stainless steel construction
- Bimetallic coil measuring element with fast response
- Accuracy Class 1 as per EN 13190
- Protection IP65, IP66, IP67 and IP68
- External zero adjustment option
- Dry or silicone filled (filling up to 300 °C range, not for lower connection)
- Back, lower or every angle (rotatable) connection
- Options: thermowells, dual scale, safety glass, 316L housing, low ambient temperature
Standard specification
| Dial size | 63, 100, 115, 150 and 160 mm |
|---|---|
| Measuring principle | Bimetallic coil |
| Ranges | -50...50 °C up to 0...600 °C; -80...120 °F up to 30...1100 °F |
| Accuracy | Class 1 as per EN 13190 |
| Over temperature | Max. 130% F.S., max. 625 °C |
| Stem | Diameter 6, 8, 10, 12 mm; length 63 to 1000 mm |
| Process connection | Plain, 1/2", 3/4", 1" BSP / NPT (M) fixed or adjustable union; M20 x 1.5 on option |
| Connection location | Back, lower, every angle (rotatable) |
| Materials | Connection SS 316, stem SS 316L, case and ring SS 304 (316L optional) |
| Window / dial | Instrument glass (laminated safety glass optional), aluminium dial with black markings on white |
| Ambient / storage temperature | -25...80 °C / -40...60 °C |
| Protection | IP65 / IP66 / IP67 / IP68 |
Main dimensions (mm)
| Dial size | ØD1 | ØD2 | L1 | L2 |
|---|---|---|---|---|
| 63 | 68.6 | 61.6 | 42.5 | 21.5 |
| 100 | 109.0 | 98.5 | 49.0 | 23.5 |
| 115 | 126.5 | 114.5 | 49.0 | 23.5 |
| 150 | 166.0 | 152.0 | 49.0 | 25.0 |
The ordering code gives dial size, type, stem diameter, filling, process connection, connection orientation, stem length, range, engineering unit and options. Example from the catalogue: 100 PBMT 12 = 70 E 150 0/200 C NH (100 mm dial, 12 mm stem, no filling, adjustable union 1/2" NPT (M), every angle connection, 150 mm stem, 0/200 °C, tagging wired).
Applications
Chemical and petrochemical industry, oil and gas, machine and apparatus construction, food and beverage, pulp and paper.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-TG-PBMT
Data sheet
- Manufacturer series
- PBMT
- Product type
- Bimetal thermometer
- Size range
- 63 to 160 mm dial
- Pressure rating
- Not applicable
- Material
- Stainless steel
- Origin
- India
