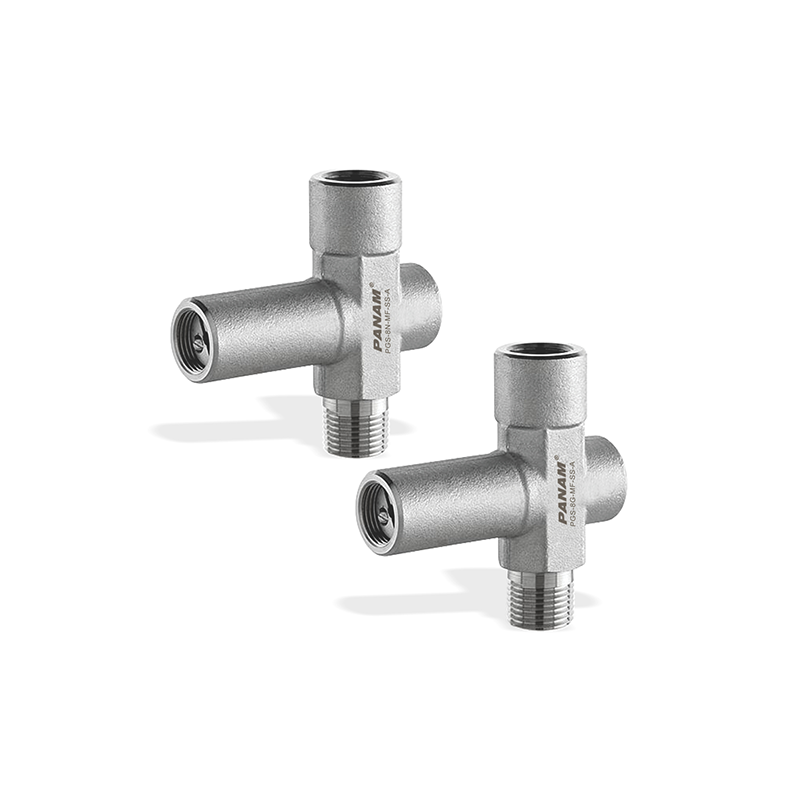

PANAM Gauge Saver PGS (Overpressure Protector, up to 600 bar)
Adjustable gauge savers (overpressure protectors) for pressure gauges, 1/2" NPT, 1/2" BSPP or M20 x 1.5 male / female, set ranges from 400 mmWC to 600 bar, F316 body, Monel or Hastelloy on request, FKM seals, -23 to 120 °C. NACE MR0175 / MR0103 option.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM gauge savers protect pressure gauges and other instruments from excess pressure. The valve automatically blocks pressure exceeding the set limit until it returns to normal, controls sudden pressure spikes, and can isolate low pressure indicators in systems that alternately measure high and low pressure. The low pressure version (PGS) is diaphragm actuated for high sensitivity; a high pressure design is also offered.
The one piece body is machined from ASTM A182 F316 stainless steel; Monel and Hastelloy versions are available. Each gauge saver is factory tested to MSS-SP-99 (hydrostatic test at 1.5 times and seat leak test at 1.1 times the maximum working pressure, plus 1,000 psi nitrogen seal test), with heat code traceability. Oxygen service is possible after special cleaning.
Key features
- Automatically blocks pressure above the set point until it returns to normal
- Diaphragm actuated low pressure design for high sensitivity; high pressure design available
- Set ranges from 400 mmWC up to 600 bar, adjustable
- One piece F316 body for strength and safety
- FKM (Viton) seals, NBR diaphragm
- NACE MR0175 and MR0103 compliant versions on request
- Heat code traceability, MSS-SP-99 factory testing
- Oxygen cleaning on request
Standard specification
| Model | PGS gauge saver |
|---|---|
| Connections | 1/2" NPT, 1/2" BSPP, M20 x 1.5; male / female |
| Maximum working pressure | 600 bar (8,702 psi) |
| Permissible pressure rating (PGS) | 400 kg/cm2 at 100 °C (212 °F) |
| Working temperature | -23 to 120 °C (-10 to 248 °F) |
| Body material | ASTM A182 F316 standard; SS 316L, Monel, Hastelloy |
| Internals | SS 316 (ASTM A479) poppet, nuts, sleeve; SS 302 spring |
| Seals | FKM O-ring, NBR diaphragm |
| Testing | MSS-SP-99 hydrostatic and seat test, 1,000 psi nitrogen test |
Setting ranges
| Code | Setting range |
|---|---|
| A | 0.4 to 2.5 bar |
| B | 2 to 6 bar |
| C | 5 to 25 bar |
| D | 20 to 60 bar |
| E | 50 to 250 bar |
| F | 240 to 400 bar |
| G | 400 to 600 bar |
| S | 400 to 600 mmWC |
| T | 1000 to 2500 mmWC |
| U | 4000 to 6000 mmWC |
| V | 6000 to 10000 mmWC |
| W | 10000 to 20000 mmWC |
Order as PGS, connection size (8N 1/2" NPT, 8G 1/2" BSPP, M20 M20 x 1.5), connection type (MF male / female), material (SS, SSL, Mo Monel, HC Hastelloy), setting range code and options (SG for NACE MR0175 / MR0103). Example: PGS-8N-MF-SS-A-SG (1/2" NPT male / female, SS 316, set 0.4 to 2.5 bar, NACE).
Applications
Protection of pressure gauges and instruments in process and power plants, offshore and onshore refineries, chemical and petrochemical plants, machinery and mining.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-GS-PGS
Data sheet
- Manufacturer series
- PGS
- Product type
- Gauge saver
- Size range
- 1/2 in and M20x1.5
- Pressure rating
- Up to 600 bar
- Material
- F316 standard
- Origin
- India
