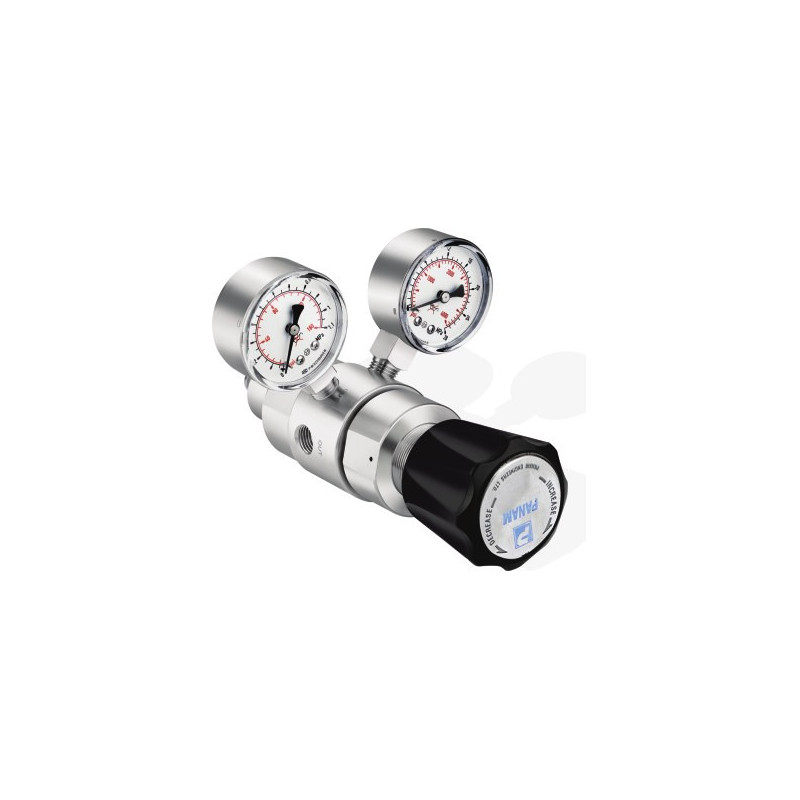

PANAM Pressure Regulator PPR14 (Piston Sensed, Inlet up to 6,000 psi)
Compact piston sensed pressure reducing regulator in SS 316 or brass, inlet up to 6,000 psig (414 bar), outlet ranges up to 800 or 2,500 psig (172 bar), 2, 3 or 4 ports, 1/4" NPT or BSP female, venting or non-venting, bubble-tight, Cv 0.06 / 0.15.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The PANAM PPR14 piston sensed pressure regulator is an economical, compact pressure reducing regulator in brass or 316 stainless steel. The piston sensed design is safe and reliable, and an adjustable stop limits the maximum outlet pressure.
It is offered in venting or non-venting models with 2, 3 (gauge port on outlet) or 4 port bodies and 1/4" NPT or BSP female connections. Seats are PCTFE or PEEK with Monel poppet and Viton O-ring. Pressure ratings follow ANSI / ASME B31.3 criteria with design proof pressure of 150% of maximum rating.
Key features
- Piston sensed design
- SS 316 or brass construction
- Adjustable stop limits maximum outlet pressure
- Venting or non-venting models
- 2, 3 or 4 port body options
- Bubble-tight leakage
Standard specification
| Maximum inlet pressure | 6000 psig / 414 bar |
|---|---|
| Outlet pressure range | 0 to 800 psig or 0 to 2500 psig (0 to 172 bar) |
| Proof pressure | 150% of maximum rated |
| Leakage | Bubble-tight |
| Temperature | -26 °C to 74 °C (ambient and media) |
| Flow capacity | Non-venting Cv 0.06, venting Cv 0.15 |
| End connections | 1/4" NPT female or 1/4" BSP female |
| Materials | Body SS 316 or brass, poppet Monel, seat PCTFE or PEEK, O-ring Viton |
The code gives series (PPR14), body material, inlet pressure range, outlet pressure range (25 = 2,500 psig, 08 = 800 psig), number of ports (A 2, B 3 with outlet gauge port, C 4, D 4 with 2 inlet and 2 outlet), size (4N 1/4" NPT, 4G 1/4" BSP) and venting option (V). Catalogue example: PPR14-S-100-08-C-4N-V.
Applications
General purpose test stands, industrial equipment, instrument gas supply and sampling systems.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-PR14
Data sheet
- Manufacturer series
- PPR14
- Product type
- Pressure reducing regulator
- Size range
- 1/4 in
- Pressure rating
- 6000 psi inlet
- Material
- SS 316 or brass
- Origin
- India
