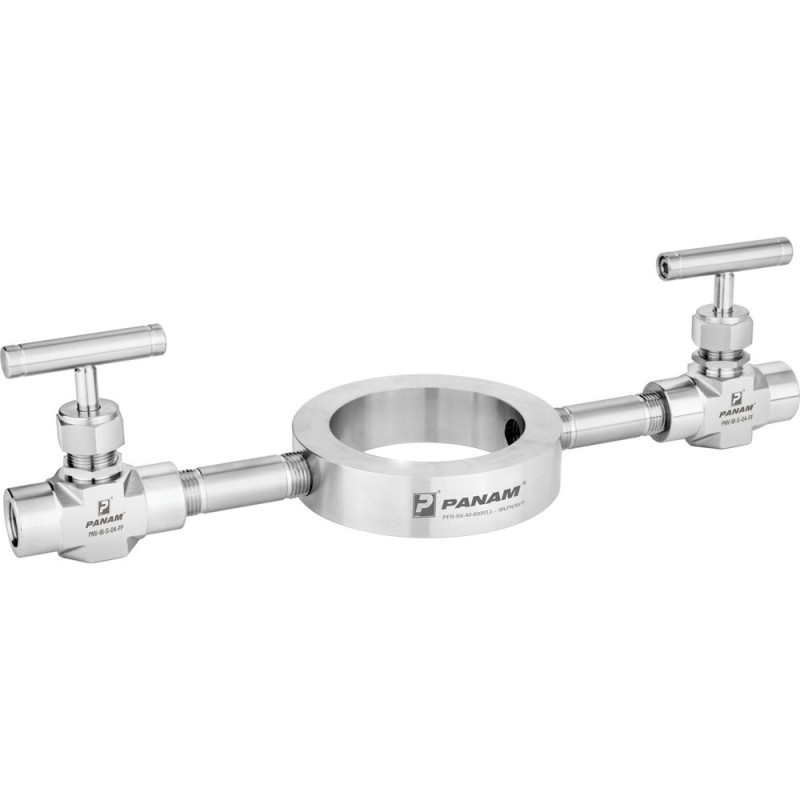

PANAM Flushing Ring PFR for Diaphragm Seals (Class 150 to 2500, PN16 to PN400)
Flushing rings for flange and cell type diaphragm seals, 1" to 5" class 150 to 2500 (RF, RTJ) and DN25 to DN125 PN16 to PN400 (EN 1092-1 B1), 1/4" or 1/2" NPT, BSPP or socket weld flushing ports, SS 316, duplex, Hastelloy, Inconel.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The PANAM flushing ring is mounted between the diaphragm seal (flange or cell type) and the process flange using standard gaskets. Its flushing inlet and outlet ports allow the pressure chamber to be vented, drained, filled with a cleaning liquid and flushed without dismantling the system, removing deposits and keeping pressure measurements accurate.
Flushing rings are 100% factory tested up to their maximum pressure rating with no detectable leakage, comply with NACE MR0175 / ISO 15156 with heat code traceability, and are rated up to 10,000 psi (689 bar). They can be supplied with plugs, needle valves, ball valves or long pipe nipples on the flushing ports, and are cleaned and packed per PANAM procedure PWI/5.7/21.
Key features
- Suitable for flange type and cell type diaphragm seals
- Sizes 1" to 5" and DN25 to DN125
- Classes 150 to 2500 and PN16 to PN400
- Sealing faces RF, RTJ, EN 1092-1 Form B1, others on request
- Flushing ports on both sides (standard) or one side
- Supplied with plug, needle valve, ball valve or 4" pipe nipple
- NACE MR0175 / ISO 15156, heat code traceability
Standard specification
| Model | PFR |
|---|---|
| Sizes | 1", 1-1/2", 2", 3", 4", 5"; DN25 to DN125 |
| Pressure class | 150, 300, 600, 900, 1500, 2500; PN16 to PN400 |
| Sealing face | RF, RTJ (ASME B16.5), EN 1092-1 Form B1 |
| Flushing connection | 1/4", 3/8", 1/2" NPT, BSPP, BSPT or pipe socket weld (1/2" NPT female standard) |
| Maximum working pressure | Up to 10,000 psi (689 bar) |
| Materials | SS 316, SS 316/316L, F51 (UNS 31803), F53 (UNS 32750), Hastelloy C-276, Inconel 625, Inconel 825, 6MO |
| Testing | Factory tested to maximum pressure rating, no detectable leakage |
| Options | NACE, plug, needle valve, ball valve, long pipe nipple 4", painting |
RF flushing rings (ASME B16.5), main dimensions (mm)
| Size | Class | Flushing port | D | d | H |
|---|---|---|---|---|---|
| 1" | 150-2500 | 1/2" NPT F | 50.8 | 34 | 30 |
| 1-1/2" | 150-2500 | 1/2" NPT F | 73.2 | 42 | 30 |
| 2" | 150-2500 | 1/2" NPT F | 91.9 | 62 | 30 |
| 3" | 150-2500 | 1/2" NPT F | 127.0 | 92 | 30 |
| 4" | 150-2500 | 1/2" NPT F | 157.2 | 92 | 30 |
| 5" | 150-2500 | 1/2" NPT F | 185.5 | 126 | 30 |
The code gives PFR, material, size, class and facing, flushing ports (both sides standard, B1 one side), flushing connection and options. Example from the catalogue: PFR-SS-40-600RTJ-...-8N-...-NV-P (SS 316, 1-1/2", class 600 RTJ, ports both sides, 1/2" NPT female flushing connection, with needle valve and plug).
Applications
Diaphragm seal installations for pressure and level transmitters in oil and gas, chemical processing, pharmaceuticals and food and beverage plants.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-FR-PFR
Data sheet
- Manufacturer series
- PFR
- Product type
- Flushing ring
- Size range
- 1 to 5 in and DN25 to DN125
- Pressure rating
- Class 150 to 2500
- Material
- SS 316 standard (alloys on request)
- Origin
- India
