PANAM Sample Cylinders (40 cm3 to 1 Gallon, up to 5,000 psi)

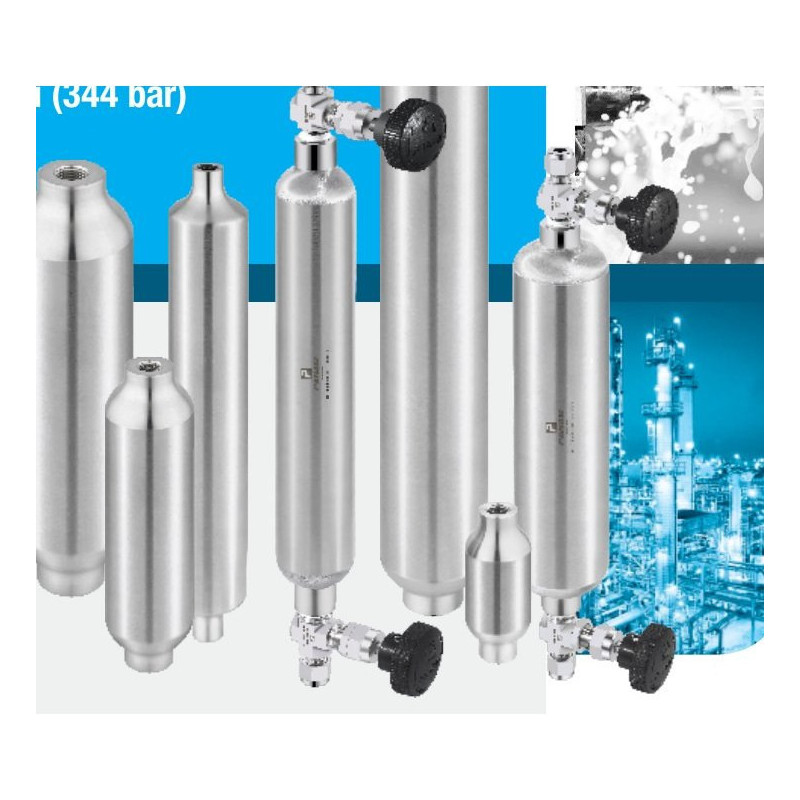

Seamless sample cylinders 40 to 3785 cm3 (1 gal), single-ended or double-ended, 1/8", 1/4" or 1/2" NPT female, working pressure 500, 1800 or 5000 psig (344 bar), SS 304L, SS 316L or alloy 400. PTFE coating, electropolishing and carrying handle options.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM sample cylinders are made from seamless tubing for consistent wall thickness, size and capacity, with cold formed female NPT threads for high strength. Single-ended cylinders (150, 300 and 500 cm3) are in 304L stainless steel; double-ended cylinders from 40 cm3 to 1 gallon are in 304L or 316L stainless steel or alloy 400.
Single-ended cylinders are hydrostatically tested at 1000 psi (69 bar) and double-ended cylinders to at least 5/3 times the working pressure. All cylinders are cleaned and packaged to the PANAM standard procedure. Internal surfaces can be PTFE coated or electropolished.
Key features
- Capacities 40 cm3 to 3785 cm3 (1 gal)
- Working pressures up to 5000 psig (344 bar)
- Single-ended or double-ended
- Seamless body, cold formed NPT female threads
- Internal PTFE coating (-PC) or electropolishing (-EP)
- Carrying handle option
Standard specification
| Volumes | 40, 50, 75, 150, 300, 400, 500, 1000, 2250, 3785 cm3 |
|---|---|
| Working pressure | 500 psi (34.4 bar), 1800 psi (124 bar), 5000 psi (344 bar) |
| Materials | SS 304L, SS 316L, Monel 400 |
| Connections | 1/8", 1/4", 1/2" NPT female |
| Temperature rating | -65 °F (-53 °C) up to 850 °F (454 °C) in SS 316, with pressure derating |
| Testing | Single-ended 1000 psi; double-ended at least 5/3 x working pressure |
Double-ended range (selection)
| Volume cm3 | WP psi (bar) | NPT | OD in (mm) |
|---|---|---|---|
| 40 | 1800 (124) | 1/8 | 1.25 (31.8) |
| 150 | 1800 (124) | 1/4 | 2.00 (50.8) |
| 500 | 1800 (124) | 1/4 | 2.00 (50.8) |
| 1000 | 1800 (124) | 1/4 or 1/2 | 3.50 (88.9) |
| 3785 (1 gal) | 1800 (124) | 1/4 or 1/2 | 4.00 (102) |
| 150 | 5000 (344) | 1/4 | 1.90 (48.2) |
| 500 | 5000 (344) | 1/4 | 1.90 (48.2) |
The code gives series (CLY), body material (SL 304L, SSL 316L, MO Monel 400), volume, working pressure (5, 18, 50 = 500, 1800, 5000 psi), connection type (D double, S single), size (2N, 4N, 8N) and options (PC, EP, H). Catalogue example: PCLY-SSL-40-18-D-4N-H.
Applications
Gas and liquid sampling, laboratory analysis, custody transfer verification and grab sampling systems.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-SCYL
Data sheet
- Manufacturer series
- CLY
- Product type
- Sample cylinder
- Size range
- 40 to 3785 cm3
- Pressure rating
- 5000 psi
- Material
- SS 304L SS 316L or Monel 400
- Origin
- India
