PANAM Purge Blowback Assemblies PSPA (Single) and PDPA (Double)
Purge blowback assemblies for impulse lines: single (PSPA) or double (PDPA) with flow cartridges 0.1 to 3.2 SCFH air at 10 psi, function selector (purge on, test, purge off, fast purge), pressure gauges, check valve, SS 316, up to 4,000 psi (276 bar).
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM purge blowback assemblies keep instrument tap lines clear by supplying a controlled purge flow through calibrated flow cartridges. The function selector handle and service valves give Purge On (normal operation), Purge On and Test (checking for a blocked cartridge or insufficient purge differential), Purge Off and Test (safe cartridge or gauge replacement after venting) and Fast Purge (high flow to clear tap lines, under manual control).

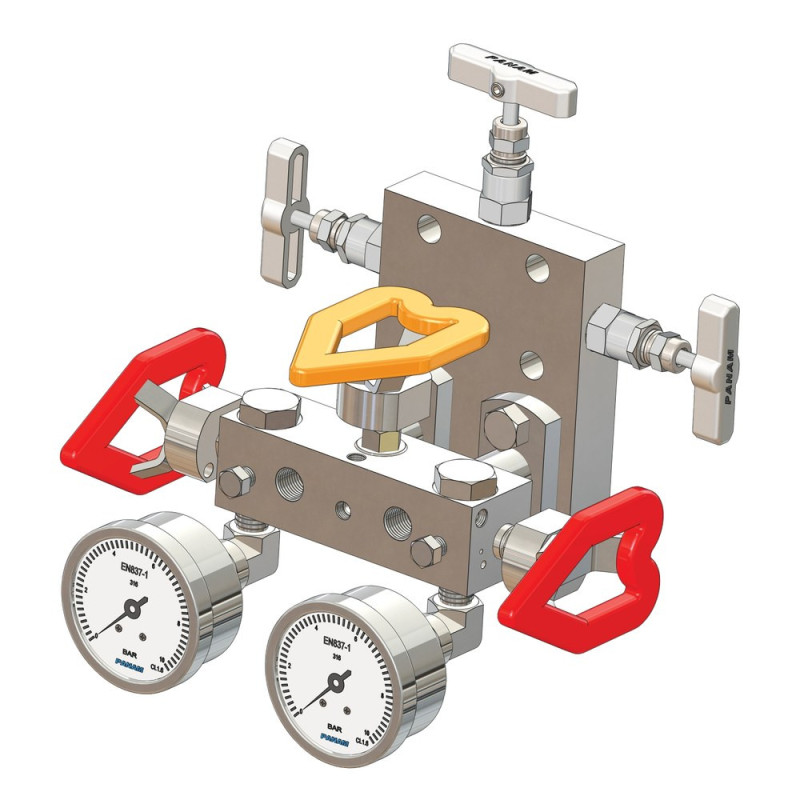

The double assembly (PDPA) serves both legs of a differential pressure transmitter and can include a 3 or 5 valve manifold, with the schematic acid etched on the body. Units have 1/4" NPT purge inlet and 1/2" and 1/4" NPT outlets, with an optional 2" pipe mounting kit. Every purge is 100% factory tested and complies with NACE MR0175 and MR0103 with heat code traceability.
Key features
- Single (PSPA) or double (PDPA) purge assembly
- Four operating modes: purge on, purge on and test, purge off and test, fast purge
- Flow cartridges 0.1, 0.4, 1.0 or 3.2 SCFH air at 10 psi
- Optional SS pressure gauges and SS check valve
- 3 or 5 valve manifold or flanged transmitter outlet (PDPA)
- Seal options Teflon/TFE, Teflon/Viton or Ryton/Viton O-rings
Standard specification
| Maximum working pressure | Up to 4000 psi (276 bar) |
|---|---|
| Material | Stainless steel 316 |
| Purge inlet | 1/4" NPT |
| Outlets | 1/2" NPT and 1/4" NPT (plugs supplied), or flanged outlet to manifold |
| Flow cartridges | 0.1, 0.4, 1.0, 3.2 SCFH air at 10 psi |
| Gauges (optional) | 0-16 or 0-40 kg/cm2, 0-200 or 0-1000 psi, stainless steel |
| Mounting | Direct transmitter mount or 2" pipe kit (PSPA) |
The code gives model (PSPA or PDPA), seals (TT, TV, RV), material (SS), connections (flanged outlet to manifold or 1/4" FNPT outlet x 1/4" FNPT inlet), flow capsule size, optional gauge, manifold (3VM or 5VM, PDPA only) and options (CV check valve, MB mounting bracket, F2 outlet). Catalogue example: PSPA-TT-SS-AS1F2-3.2-16KG-3VM-CV.
Applications
Purging of impulse lines for flow, level and pressure measurement on dirty, viscous, condensing or solidifying media in refineries, petrochemical and power plants.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-PURGE-BB
Data sheet
- Manufacturer series
- PSPA and PDPA
- Product type
- Purge blowback assembly
- Size range
- 1/4 in and 1/2 in NPT
- Pressure rating
- 4000 psi
- Material
- SS 316
- Origin
- India
