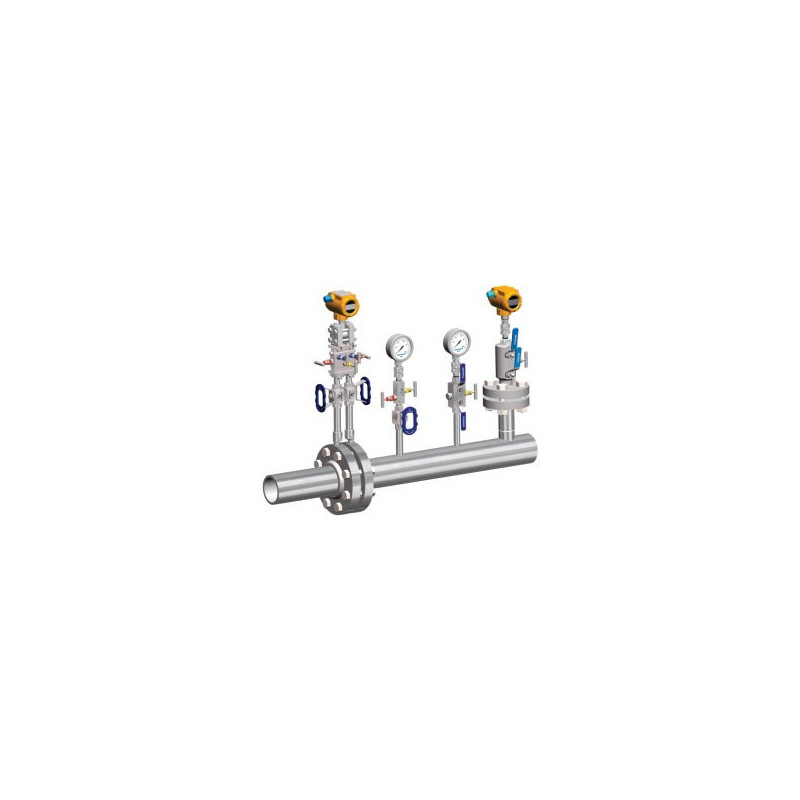

PANAM Prefabricated Instrumentation Hook-Ups (Flow, Level and Pressure, up to 6,000 psi)
Close coupled prefabricated hook-ups mounting gauges and transmitters directly on the process: needle, ball or DBB primary valves with 2, 3 or 5 valve manifolds, inlet 1/2" to 2" flanged 150 to 2500, SW, BW or NPT, outlet 1/2" NPT, up to 6,000 psi and 450 °C, SS 316.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM prefabricated instrumentation hook-ups provide sturdy, compact assemblies for flow, pressure and level measurement that eliminate or reduce impulse lines by using sandwich construction valves. The primary isolation valve can be a full or reduced bore, metal or soft seated ball valve, gate valve, globe valve, needle valve or double block and bleed, integrated with the instrument manifold.
Assemblies are built from 3D models and PDMS drawings with in-house FEA, individually packed per tag number with full traceability. Testing includes material, dimensional, hydrostatic, seat leakage and performance tests, with vibration, NDT and helium leak tests on request. Hook-ups can use ultra low emission valves to ISO 15848 leakage rates A or B.
Key features
- Close coupled mounting eliminates impulse lines and leak paths
- Plug and play assemblies, site work reduced by up to 90%
- Flow versions with soft seated ball valve, DBB or stabilizer connector
- Extended versions for flow measurement at 200 to 450 °C
- Pressure versions with DBB or mono flange for piping class up to 2500
- Options: canopy, syphon tube, angle pattern, high temperature, NACE MR0175
Standard specification
| Working pressure | Up to 6000 psi |
|---|---|
| Temperature | Up to 450 °C |
| Material | SS 316 (other materials on request) |
| Isolation valves | Needle, ball, DBB, single block and bleed, mono flange, stabilizer connector |
| Secondary valves | 2, 3 or 5 valve manifold, needle or ball valve; T or H type manifolds |
| Process connection | Inlet 1/2" to 2": flanged 150 to 2500 RF/RTJ, SW or BW 3000/6000, NPT male |
| Instrument connection | 1/2" NPT male or female, or manifold flange |
Hook-up types
| Code | Instrument |
|---|---|
| PG | Pressure gauge |
| DPG | Differential pressure gauge |
| DS | Diaphragm seal |
| PT | Pressure transmitter |
| DPT | Differential pressure / flow transmitter |
| LT | Level transmitter |
The code gives hook-up type, inlet size, inlet connection, primary valve, secondary valve, instrument connection, material and options. Catalogue example: PPFH-PG-15-SW3K-BV-2VM-TB-SS-A.
Applications
Oil and gas, chemical and petrochemical, pharmaceutical, food and beverage, water and wastewater and power industries.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-HOOKUP
Data sheet
- Manufacturer series
- PPFH
- Product type
- Prefabricated instrument hook-up
- Size range
- 1/2 in to 2 in inlet
- Pressure rating
- 6000 psi
- Material
- SS 316
- Origin
- India
