BVALVE Bellows Sealed Globe Valve BV25065 / BV25066, ASME Class 150 / 300 / 600 (1/2 to 10 in)
Bellows sealed globe valve designed to ASME B16.34, flanged RF to ASME B16.5, in carbon steel WCB or stainless steel CF8M. Bellows stem seal backed by a graphite safety packing, for steam, thermal oil, gases and aggressive media. Made in Spain.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

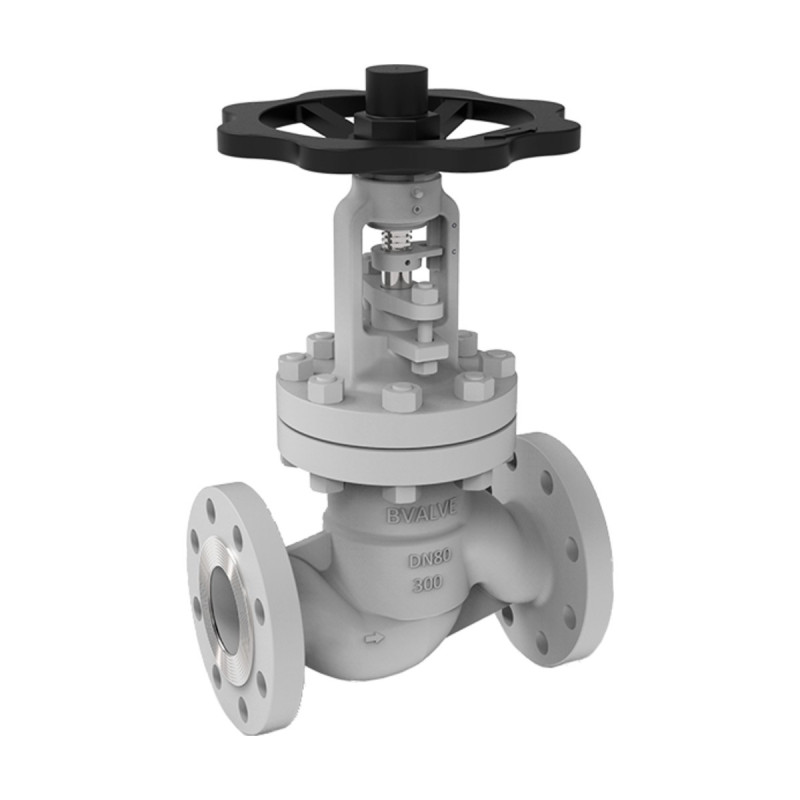

The BVALVE BV25065 ASA (carbon steel) and BV25066 ASA (stainless steel) are straight pattern bellows sealed globe valves to ASME standards, available in Class 150, 300 and 600 from 1/2 to 10 in, with raised face flanges to ASME B16.5 or butt weld ends on request.
The multi-layer stainless steel bellows, welded to the stem, is backed by a pure graphite TA-Luft safety packing and a metal back seat, giving a zero-leakage stem seal on steam, thermal oil, gases and aggressive or toxic media.
Key features
- Design to ASME B16.34, face to face to ASME B16.10, testing to API 598
- Multi-layer stainless steel bellows (double to quadruple wall depending on size), welded to the stem and not to the plug, life cycle per MSS SP-117
- Free-rotating conical plug (360°) for a tighter closure and self-cleaning of impurities
- Non-ejectable stem with mechanical stop and metal back seat
- Pure graphite TA-Luft safety packing; tongue and groove body and bonnet
- Flanges to ASME B16.5, raised face with serrated finish (3.2 to 6.3 µm)
- ACME thick thread stem, robust yoke and ergonomic handwheel; balanced plug on larger sizes
Technical data
| Models | BV25065 ASA (carbon steel); BV25066 ASA (stainless steel) |
| Pressure class | ASME 150 / 300 / 600 |
| Size range | 1/2 to 10 in (balanced plug from 8 in in Class 300, from 6 in in Class 600) |
| Body material | ASTM A216 WCB (1.0619) / ASTM A351 CF8M (1.4408) |
| Temperature range | -29 to +400 °C (WCB); -60 to +400 °C (CF8M) |
| Bellows | Multi-layer AISI 321 / 316Ti (double to quadruple wall), life cycle per MSS SP-117 |
| Plug and seat | Conical free-rotating plug; 13 % Cr overlay (WCB), Stellite Gr. 6 (CF8M) |
| Packing | Pure graphite TA-Luft safety packing, non-ejectable stem, metal back seat |
| End connection | Flanged RF serrated (ASME B16.5); butt weld on request |
| Face to face | ASME B16.10 |
| Testing | API 598 |
| Example rating | Class 300 WCB 51.7 bar at 38 °C, 34.7 bar at 400 °C |
| Operation | Handwheel |
| Options | Regulating plug, balanced plug |
Materials
- Body and bonnet: ASTM A216 WCB (1.0619) or ASTM A351 CF8M (1.4408)
- Plug and integral seat: WCB + 13 % Cr overlay (Class 150 / 300), Stellite Gr. 6 (Class 600 and CF8M)
- Bellows: AISI 321 / AISI 316Ti
- Stem and stem nut: ASTM A276 type 410 (WCB) or type 316 (CF8M)
- Gasket: spiral wound SS 304 or SS 316 + graphite; packing: graphite
- Fasteners: ASTM A193 B7 / A194 2H or ASTM A193 B8M / A194 8M
- Handwheel: SG iron
Applications
- Power stations
- Steam and superheated steam
- Thermal oil
- Gas processing
- Chemical plants
- Aggressive and toxic media
Standards and certification
Designed to ASME B16.34 and tested to API 598 according to the manufacturer. The manufacturer declares PED 2014/68/EU conformity and TA-Luft packing, with helium leak testing and an ATEX version available for its bellows valve range. EN 10204 3.1 material certificates and test reports are provided with the quotation.
Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
BVALVE-BV2506X-ASA
Data sheet
- Size range
- 1/2 to 10 in
- Body material
- Carbon steel WCB / Stainless steel CF8M
- Valve type
- Bellows sealed globe valve
- Pressure class
- ASME 150 / 300 / 600
- Temperature range
- -29 to +400 °C (CF8M from -60 °C)
- Design standard
- ASME B16.34
