BVALVE Bellows Sealed Globe Valve BV25065 / BV25066, PN40 Carbon Steel or Stainless Steel (DN15 to DN300)

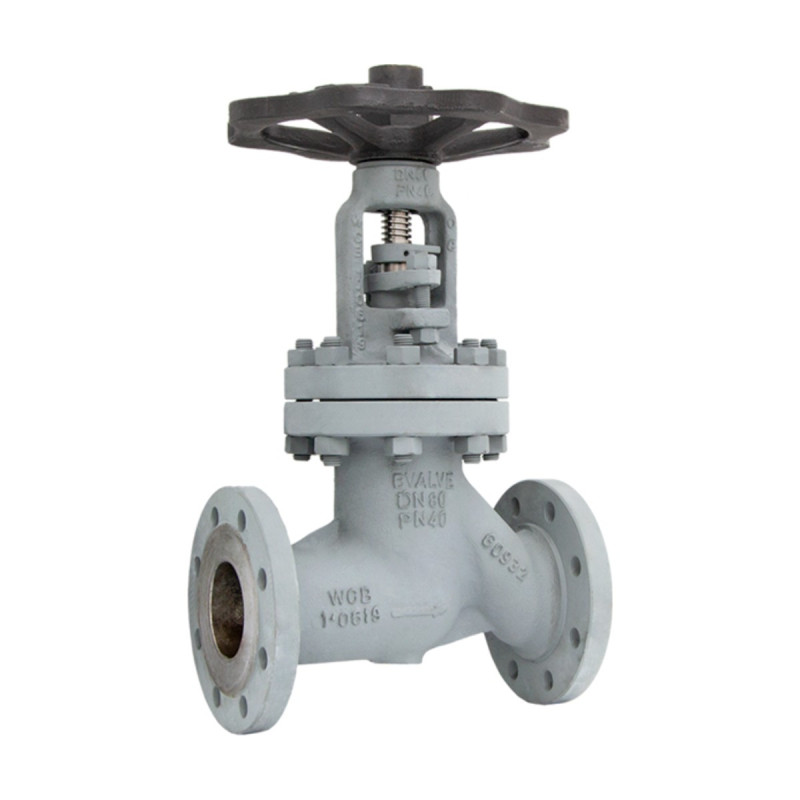

The BVALVE BV25065 (carbon steel 1.0619 / WCB) and BV25066 (stainless steel 1.4408 / CF8M) are straight pattern PN40 bellows sealed globe valves for demanding applications, from DN15 to DN300, with flanged EN 1092-1 or butt weld ends.

The welded multi-layer bellows, secured against torque, combines with a full size TA-Luft graphite safety packing and a metal back seat to give a reliable zero-leakage stem seal on steam, thermal oil, gases and aggressive media.

Key features

• Completely welded multi-layer stainless steel bellows secured against torque, designed for 30,000 operations
• Free-rotating conical plug (360°) for a tighter closure and a seat kept clean of particles
• Full size TA-Luft safety packing in pure graphite as a second barrier (PTFE on request for chemical applications)
• Stainless steel cam profiled bonnet gasket coated with pure graphite, in tongue and groove bonnet flanges (PTFE on request)
• Metal back seat: mechanical open-position limit and zero leakage in case of bellows failure
• Non-ejectable stem; oversized handwheel and position indicator
• Zero leakage, seat tightness rate A to EN 12266-1

Technical data

Materials

• Body, bonnet and gland flange: ASTM A216 WCB (1.0619) or ASTM A351 CF8M (1.4408)
• Stem: ASTM A276 type 410 (BV25065) or type 316 (BV25066)
• Bellows collar and top collar: ASTM A276 type 316
• Gasket: spiral wound SS 304 + graphite (BV25065) or SS 316 + graphite (BV25066)
• Packing: graphite
• Fasteners: ASTM A193 B7 / A194 2H (BV25065) or ASTM A193 B8M / A194 8M (BV25066)
• Handwheel: mild steel / nodular cast iron

Applications

• BV25065: power stations, thermal oil processes, gas industry, vapour facilities, vacuum installations; medium and high pressure steam, superheated steam, gases, superheated water
• BV25066: chemical industry, recycling plants, process water installations; aggressive, corrosive and toxic fluids such as ethylene oxide and sulphuric acid

Standards and certification

Designed with flanges to EN 1092-1, face to face to EN 558-1 and seat tightness to EN 12266-1 rate A according to the manufacturer. The manufacturer declares a TA-Luft certified safety packing and a bellows life cycle per MSS SP-117 for its bellows valve range. Certificates and test reports are provided with the quotation.

Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
