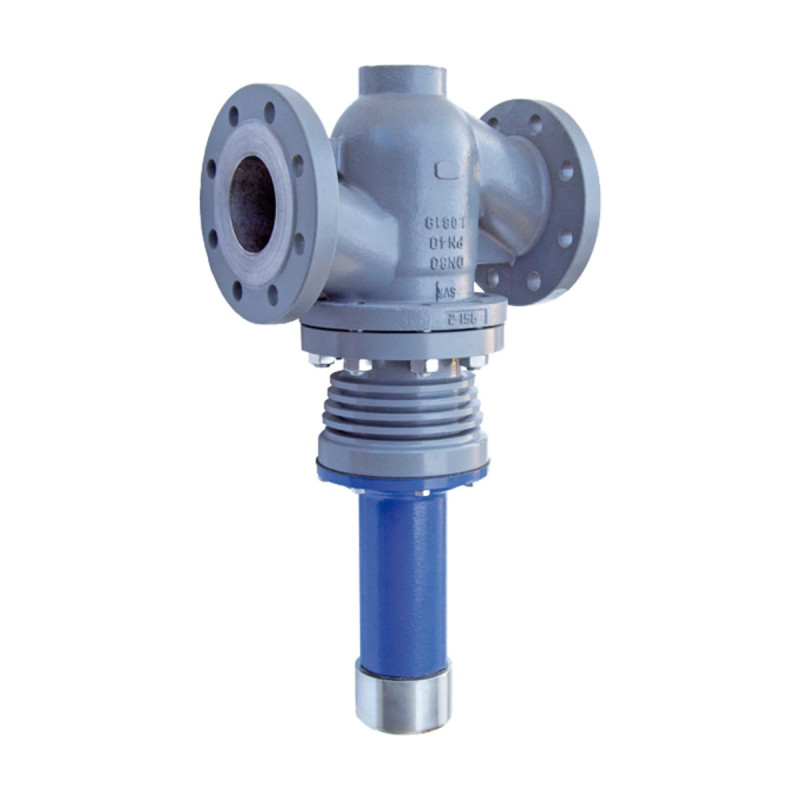

BVALVE Pressure Reducing Valve PRV50065HP, PN40 Self-Acting Balanced (DN15 to DN100)
Self-acting, diaphragm operated, spring loaded and proportionally balanced pressure reducing valve for steam, liquids and gases, in carbon steel WCB or stainless steel CF8M, PN40. Made in Spain.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The BVALVE PRV50065HP is a self-acting pressure reducing valve that maintains an accurate downstream pressure without any pneumatic or electrical control elements. It is diaphragm operated, spring loaded and proportionally balanced, designed for high flow rate applications.
When the outlet pressure, taken from a sensing line installed on site, rises above the set point, the plug moves towards the seat to reduce the flow; when it drops below the set point, the plug opens. The set point is adjusted by compressing the spring.
Key features
- Balanced plug for high regulating accuracy
- Compact construction with closed spring cap
- One product for steam, liquids and gases; no compensating or condensation chamber required for steam
- Quick change of internal trim (seat, plug and spring); spring can be changed without replacing any gasket
- Plug locked on the spindle with a nut and lock nut system; one-piece spindle and one-piece bonnet
- Standard plug, hardened perforated plug for high differential pressure and noise reduction, or soft seal plug for gases and liquids
- PTFE diaphragm film protection available for aggressive fluids
Technical data
| Model | PRV50065HP |
| Size range | DN15 to DN100 (DN125 and DN150 on request) |
| Pressure rating | PN40 |
| Inlet pressure | Up to 40 bar g (steam up to 25 bar g) |
| Outlet pressure | 0.14 to 15 bar g; 6 spring ranges depending on DN |
| Kvs value | 0.08 to 108 m³/h (low Kvs plugs 0.08 to 0.8 m³/h) |
| Temperature range | -19 to +250 °C (-30 °C with stainless steel body; max 150 °C with soft seal plug) |
| Body material | 1.0619 / A216 WCB / WCC or stainless steel 1.4408 / A351 CF8M |
| Plug and seat | Stainless steel 1.4408 / AISI 316; metal seal or soft seal |
| Seat leakage | Metal seal Class V (0.0005 % of Kvs); soft seal bubble tight, rate A to EN 12266-1 |
| End connection | Flanged |
| Example rating | 40 bar at -10 °C; 33 bar at 200 °C; 30 bar at 250 °C |
| Operation | Self-acting; external sensing line required (installed on site) |
| Options | Hardened perforated plug; soft seal plug; low Kvs plug; stainless steel body |
Materials
- Body: 1.0619 / A216 WCB / WCC carbon steel, or stainless steel 1.4408 / A351 CF8M
- Diaphragm housing: cast iron or stainless steel
- Wetted internal parts and valve seal: stainless steel 1.4408 / AISI 316
- Diaphragm and O-rings: special FKM
- Seat gaskets: graphite
Applications
- Steam, water and condensate systems
- Conventional heat exchangers
- Industrial air and technical gases
- Fuel supply and residue disposal systems
- Thermal oil and ammonia (as listed by the manufacturer)
Standards and certification
Seat leakage rated to EN 12266-1 according to the manufacturer. The manufacturer states that all its products are submitted to pressure and tightness tests. Certificates and test reports are provided with the quotation.
Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
BVALVE-PRV50065HP
Data sheet
- Size range
- DN15 to DN100
- Pressure rating
- PN40
- Body material
- Carbon steel WCB / Stainless steel CF8M
- Valve type
- Self-acting pressure reducing valve
- Temperature range
- -19 to +250 °C
- Outlet pressure
- 0.14 to 15 bar g
