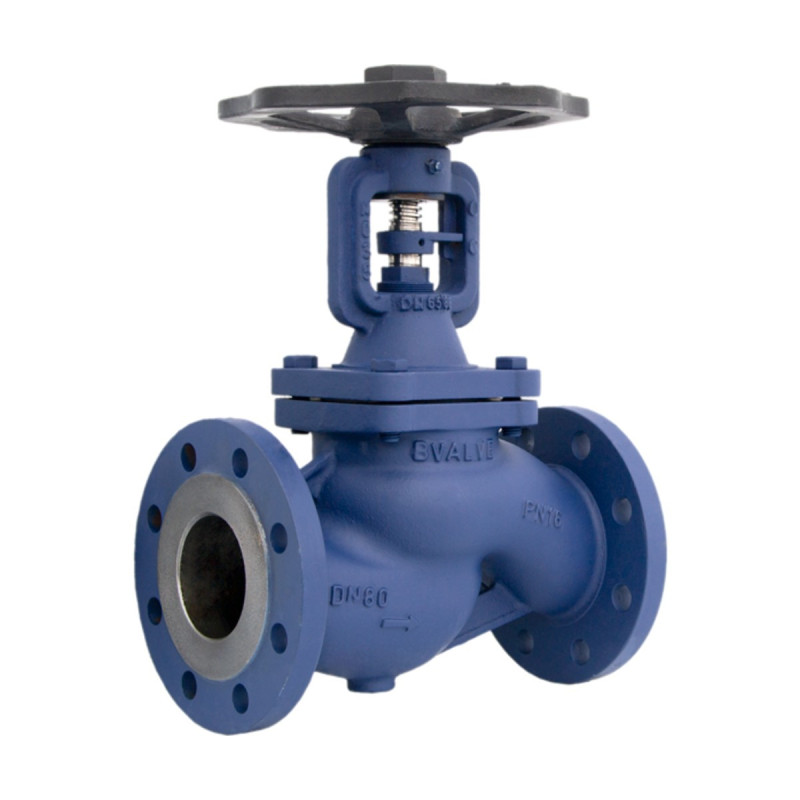

BVALVE Bellows Sealed Globe Valve BV25061, PN16 Cast Iron (DN15 to DN300)
Bellows sealed globe valve PN16 in cast iron EN-JL 1040, DN15 to DN300, flanged to EN 1092-2, for steam, thermal oil and hot water up to +300 °C. Multi-layer bellows backed by a TA-Luft graphite safety packing. Made in Spain.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The BVALVE BV25061 is a straight pattern bellows sealed globe valve in grey cast iron EN-JL 1040, rated PN16 and available from DN15 to DN300. A multi-layer stainless steel bellows seals the stem, with a pure graphite safety packing as back-up, giving a maintenance-free stop valve with zero external leakage.
It is intended for steam, thermal oil, hot water and process lines in industrial boiler houses and process plants.
Key features
- Free-rotating conical plug (360°): lower contact surface for a tighter closure, self-cleaning of impurities and no vibration transmitted to the stem
- Multi-layer stainless steel bellows (double, triple or quadruple wall depending on size), welded to the stem and not to the plug, minimum life cycle per MSS SP-117
- Non-ejectable stem with mechanical stop and metal-to-metal back seat in the open position
- TA-Luft pure graphite safety packing as a second barrier behind the bellows
- Tongue and groove body and bonnet with graphite and stainless steel bonnet gasket
- Hard-faced plug and seat; zero leakage, seat tightness rate A to EN 12266-1
- ACME thick thread stem, robust yoke with opening indicator, ergonomic handwheel with anti-friction bearings and lubricator, stroke limiter
Technical data
| Model | BV25061 |
| Size range | DN15 to DN300 |
| Pressure rating | PN16 |
| Temperature range | -10 to +300 °C |
| Body material | Cast iron EN-JL 1040 |
| Bellows / packing | Multi-layer bellows 1.4541 (AISI 321); pure graphite TA-Luft safety packing |
| Plug and seat | Conical free-rotating plug 1.4021 + 13 % Cr hard facing; seat ASTM A105 + 13 % Cr hard facing |
| End connection | Flanges EN 1092-2 form B |
| Face to face | EN 558-1 |
| Test pressures | Hydro body 24 bar; hydro seat 18 bar; air seat 7 bar; leakage rate A to EN 12266-1 |
| Example rating | 16 bar at -10 to 120 °C; 12.8 bar at 200 °C; 9.6 bar at 300 °C |
| Kvs (standard plug) | 4.8 m³/h (DN15) to 1691 m³/h (DN300) |
| Operation | Handwheel with opening indicator |
| Options | Throttling (regulating) plug; soft sealing plug; thermal insulation blanket |
Materials
- Body and bonnet: cast iron EN-JL 1040
- Plug: stainless steel 1.4021 + 13 % Cr hard facing
- Seat: ASTM A105 + 13 % Cr hard facing
- Bellows and bellows collar: stainless steel 1.4541 / AISI 321
- Stem: stainless steel 1.4006
- Gland: stainless steel 1.4021
- Packing: pure graphite
- Bonnet gasket: graphite + stainless steel
- Handwheel: nodular iron EN-GJS-400-18-LT
- Bolts and nuts: carbon steel grade 10.9
Applications
- Steam lines and industrial steam boilers
- Thermal oil circuits
- Hot and superheated water
- Chemical and process industries
Standards and certification
Designed with flanges to EN 1092-2, face to face to EN 558-1 and seat tightness to EN 12266-1 rate A according to the manufacturer. The manufacturer declares a TA-Luft safety packing, a bellows life cycle per MSS SP-117 and the availability of EN 10204 3.1 certificates. Certificates and test reports are provided with the quotation.
Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
BVALVE-BV25061
Data sheet
- Size range
- DN15 to DN300
- Pressure rating
- PN16
- Body material
- Cast iron EN-JL 1040
- Valve type
- Bellows sealed globe valve
- End connection
- Flanged EN 1092-2
- Temperature range
- -10 to +300 °C
