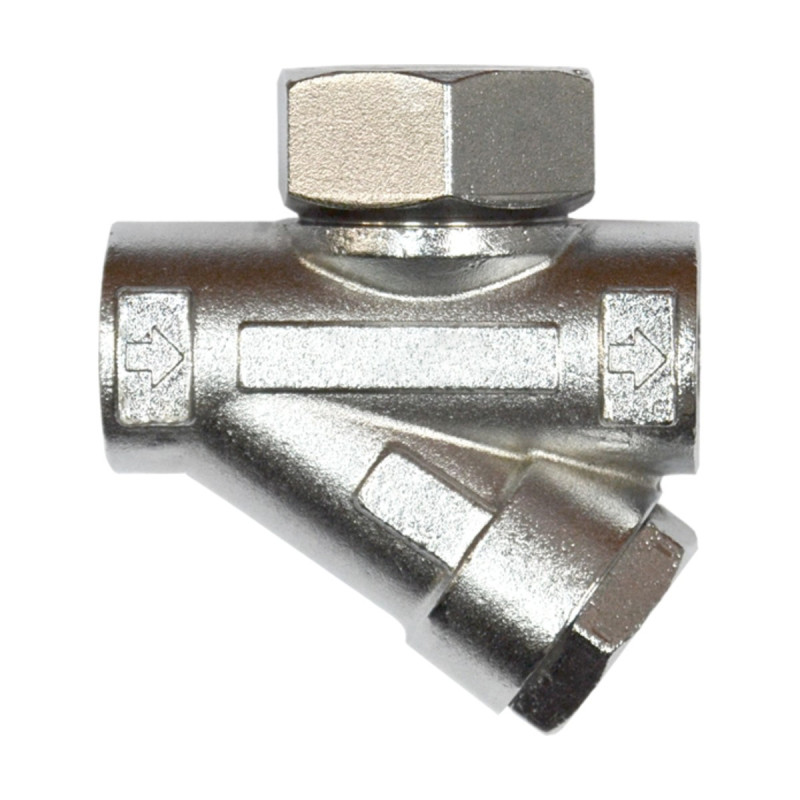

BVALVE Thermodynamic Disc Steam Trap BV66, Stainless Steel, 42 bar g (1/2 to 1 in)
Compact all stainless steel thermodynamic disc steam trap with integrated strainer, for operating pressures up to 42 bar g and temperatures up to 400 °C, on drip leg, tracing and process services. Made in Spain.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The BVALVE BV66 is a compact and lightweight thermodynamic disc steam trap designed to discharge condensate efficiently at working pressures up to 42 bar g. Body and trim are made of stainless steel, with an integrated strainer.
The one-piece thermodynamic cartridge can be inspected and replaced without removing the trap from the line, giving economical long-term performance on drip leg, tracing and process services.
Key features
- Single moving part for minimal maintenance and long operating life
- One-piece cartridge, inspected and replaced in line
- All parts in stainless steel; nickel plated body surface against oxidation
- Integrated stainless steel strainer
- Optimised porting for high discharge capacities
- Rugged design withstanding water hammer, vibration and corrosive environments
Technical data
| Model | BV66 |
| Size range | 1/2, 3/4 and 1 in |
| Operating pressure | Up to 42 bar g |
| Maximum operating temperature | 400 °C |
| Design conditions | 63 bar g at 400 °C; hydraulic test at 95 bar g |
| Maximum back pressure | 80 % of inlet pressure |
| Body material | Stainless steel ASTM A743 CA40F |
| Disc | Stainless steel AISI 420 |
| End connection | Threaded BSPP; flanged on request |
| Discharge capacity | 151 to 804 kg/h (1/2 in); 476 to 2018 kg/h (1 in), from 0.7 to 42 bar differential pressure |
| Installation | Horizontal pipe |
| Weight | 1.10 kg (1/2 and 3/4 in); 1.60 kg (1 in) |
Materials
- Body: stainless steel ASTM A743 CA40F
- Cover: stainless steel AISI 304
- Disc: stainless steel AISI 420
- Strainer and strainer cap: stainless steel AISI 304
Applications
- Steam main drip legs
- Steam tracing
- Process condensate discharge
Standards and certification
Design conditions of 63 bar g at 400 °C with a hydraulic test at 95 bar g according to the manufacturer. The manufacturer states that all its products are submitted to pressure and tightness tests. Certificates and test reports are provided with the quotation.
Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
BVALVE-BV66
Data sheet
- Size range
- 1/2 to 1 in
- Body material
- Stainless steel ASTM A743 CA40F
- End connection
- Threaded BSPP
- Trap type
- Thermodynamic disc
- Operating pressure
- Up to 42 bar g
- Maximum temperature
- 400 °C
