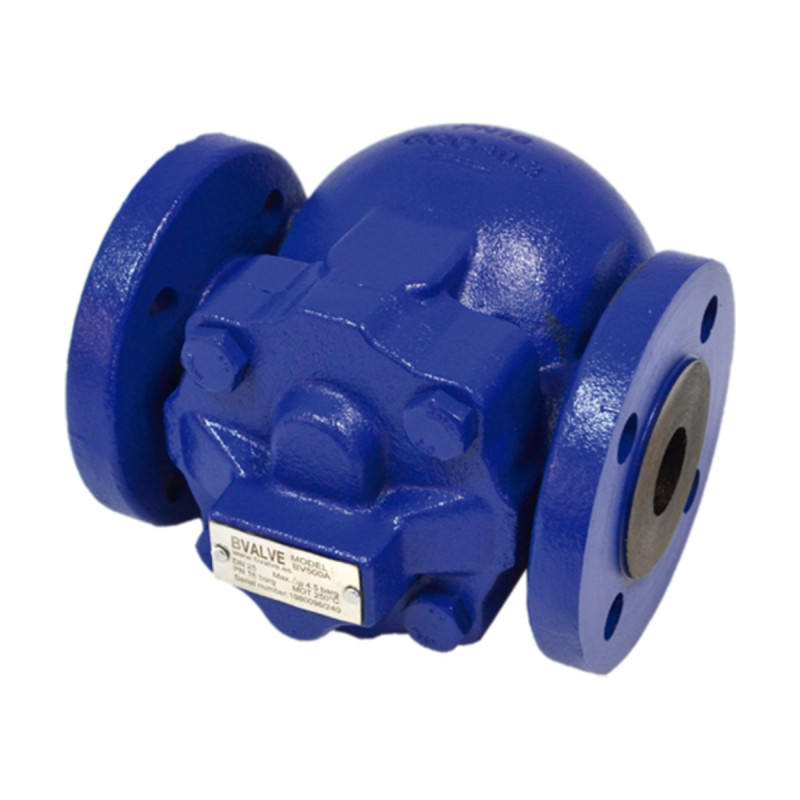

BVALVE Float and Thermostatic Steam Trap BV500, Ductile Iron (DN15 to DN50)
Float and thermostatic steam trap with inline straight-through body, stainless steel float and thermostatic air vent, in ductile iron, flanged PN16 or threaded BSPP, for continuous condensate discharge. Made in Spain.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The BVALVE BV500 is a float and thermostatic steam trap with an inline, straight-through body that avoids the staggered piping usually associated with this trap type. A stainless steel float and a simple lever mechanism open or close the valve in proportion to the condensate rate, unaffected by instantaneous pressure changes.
It is used where fast response and continuous condensate discharge are required.
Key features
- Inline straight-through body
- Continuous, modulating condensate discharge proportional to the condensate load
- Integrated thermostatic air vent with stainless steel capsule
- Stainless steel float, lever, main valve and seats
- DN15 to DN25 can be installed in horizontal or vertical pipes by turning the cover 90°
- Three differential pressure versions: 4.5, 10 and 14 bar
Technical data
| Model | BV500 |
| Size range | DN15, DN20, DN25, DN40 and DN50 |
| Maximum allowable pressure | 25 bar |
| Maximum operating pressure | 16 bar |
| Maximum differential pressure | 4.5 bar, 10 bar or 14 bar |
| Maximum allowable temperature | 300 °C |
| Maximum operating temperature | 250 °C |
| Body material | Ductile iron GGG 40.3 |
| Trim | Stainless steel 304 float, lever, ball valve and seats; stainless steel thermostatic capsule |
| End connection | Flanged DIN PN16 or threaded BSPP |
| Discharge capacity | Up to 22500 kg/h (2 in, 4.5 bar differential pressure) |
| Installation | Float arm in a horizontal plane |
Materials
- Body and cover: ductile iron GGG 40.3
- Thermostatic capsule: stainless steel
- Air vent seat and float seat: stainless steel 304
- Main valve (ball): stainless steel 304
- Float and float lever: stainless steel 304
Applications
- Heat exchangers
- Tanks and pans
- Ovens
- Drying cylinders
Standards and certification
PMA 25 bar and TMA 300 °C according to the manufacturer. The manufacturer states that all its products are submitted to pressure and tightness tests. Certificates and test reports are provided with the quotation.
Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
BVALVE-BV500
Data sheet
- Size range
- DN15 to DN50
- Body material
- Ductile iron GGG 40.3
- End connection
- Flanged PN16 / threaded BSPP
- Trap type
- Float and thermostatic
- Maximum operating pressure
- 16 bar
- Maximum operating temperature
- 250 °C
