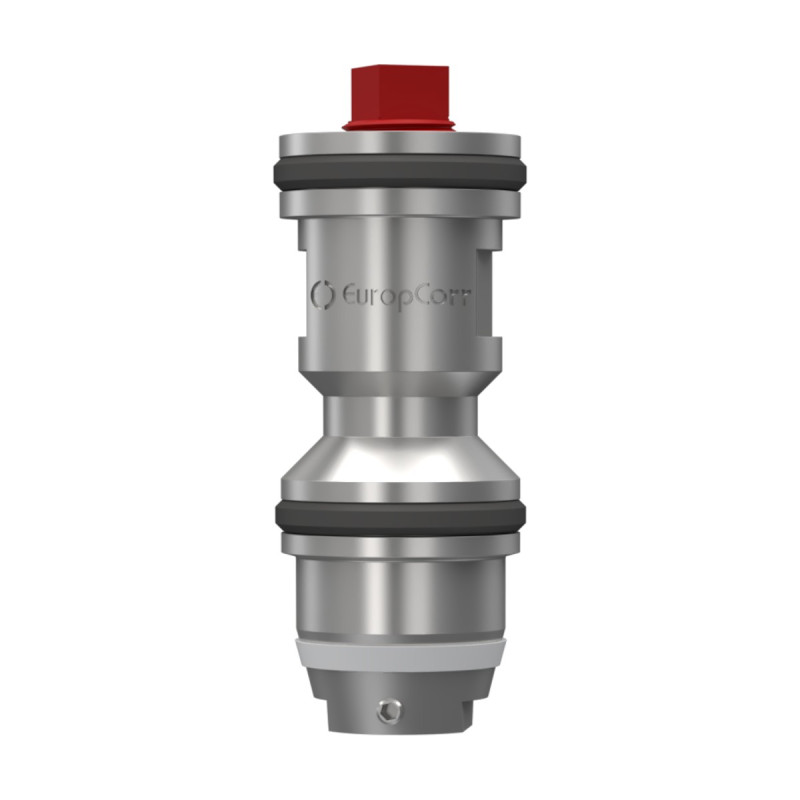

EuropCorr Hydraulic Solid Plug Assembly
Solid plug for EuropCorr hydraulic access fittings: pressure seal and retrievable carrier for coupon holders and chemical injection or sampling devices.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The Hydraulic Solid Plug is the internal part of the Hydraulic Access Fitting. It seals in the line pressure and acts as the retrievable carrier for corrosion coupon assemblies and chemical injection and sampling devices. It is held in position by locking pins, without threads.
Part of the EuropCorr Hydraulic Access System, which gives access to pipelines and vessels under full operating pressure without shutdown. The assembly is made of a Hydraulic Access Fitting, a Solid or Hollow Plug and a Heavy Duty or Pressure Retaining Cover; monitoring devices are inserted and retrieved with the Hydraulic Retrieval Tool Kit, and the system can be installed under pressure with the EuropCorr Hot Tap Tool.
Components and spare parts
- Solid plug body, AISI 316L (Part No. 120002)
- Wear ring, PTFE + 15% glass + 2% MoS2 (120005)
- Primary packing, 25% glass-filled PTFE (320001)
- Solid plug nut, AISI 316L (320004)
- Set screw M5x5, SIS 2343 (A4) (320005)
- Pipe plug, plastic (300003)
Specifications
| General | |
|---|---|
| Manufacturer | EuropCorr (Italy) |
| System | EuropCorr Hydraulic Access System (2") |
| Maximum pressure | 6,000 psi (420 bar) or according to flange rating |
| Maximum temperature | 450 °F (232 °C) |
| Standards | ISO 9001, NACE MR0175 / ISO 15156, PED (EU) |
| Assembly part No. | 120001 |
| Use | Coupons, chemical injection and sampling |
Special materials are available on request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
EC-120001
