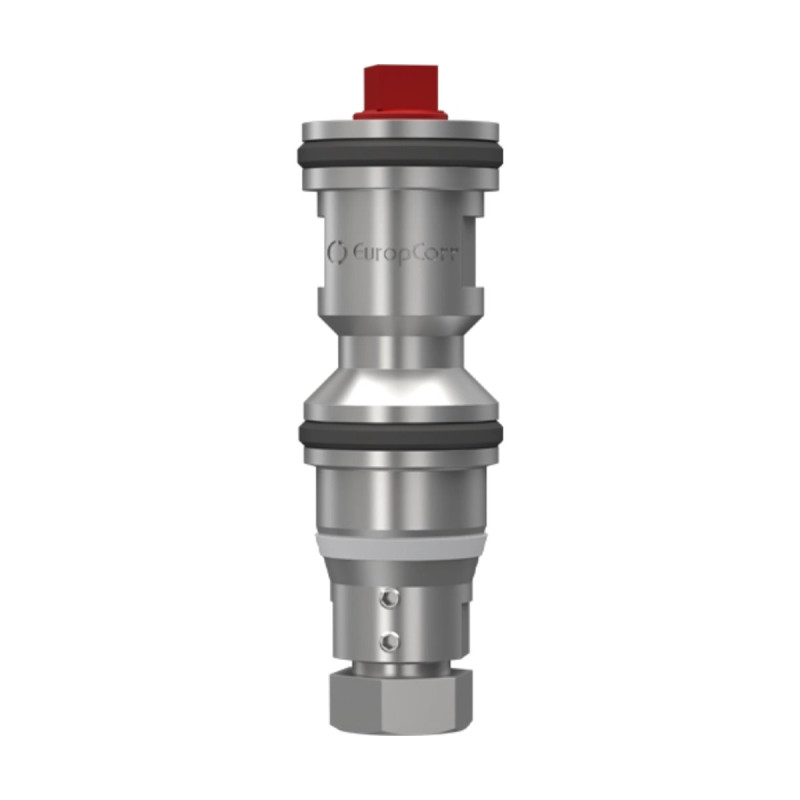

EuropCorr Hydraulic Hollow Plug Assembly

The Hydraulic Hollow Plug is the internal part of the Hydraulic Access Fitting. It seals in the line pressure and acts as the retrievable carrier for ER probes, LPR probes, hydrogen probes and any other sensor requiring a cable connection.

Part of the EuropCorr Hydraulic Access System, which gives access to pipelines and vessels under full operating pressure without shutdown. The assembly is made of a Hydraulic Access Fitting, a Solid or Hollow Plug and a Heavy Duty or Pressure Retaining Cover; monitoring devices are inserted and retrieved with the Hydraulic Retrieval Tool Kit, and the system can be installed under pressure with the EuropCorr Hot Tap Tool.

Components and spare parts

• Hollow plug body, AISI 316L (Part No. 120004)
• Wear ring, PTFE + 15% glass + 2% MoS2 (120005)
• Primary packing, 25% glass-filled PTFE (320001)
• Hollow plug nut, AISI 316L (320007)
• Hollow plug sealing nut, AISI 316L (320008)
• Probe packing, PTFE (350001)
• Set screw M5x5, SIS 2343 (A4) (320005)
• Pipe plug, plastic (300003)

Specifications

Special materials are available on request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
