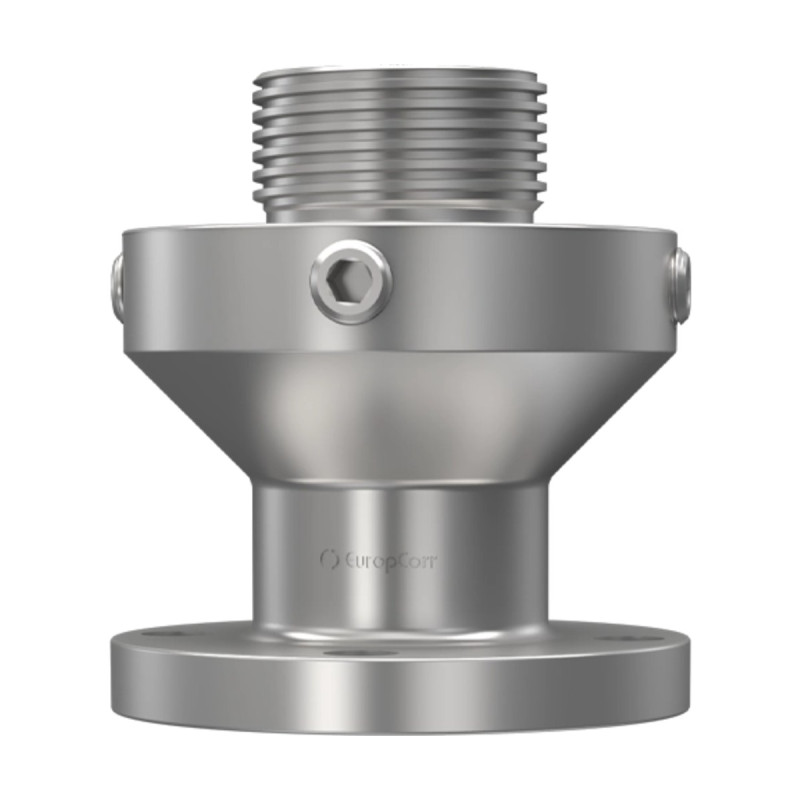

EuropCorr Hydraulic Flanged Access Fitting

The Hydraulic Flanged Access Fitting is designed for mating with standard flanges according to ASME B16.5, with raised face (RF), ring type joint (RTJ) or flat face (FF).

Part of the EuropCorr Hydraulic Access System, which gives access to pipelines and vessels under full operating pressure without shutdown. The assembly is made of a Hydraulic Access Fitting, a Solid or Hollow Plug and a Heavy Duty or Pressure Retaining Cover; monitoring devices are inserted and retrieved with the Hydraulic Retrieval Tool Kit, and the system can be installed under pressure with the EuropCorr Hot Tap Tool.

Compared with the mechanical system, the hydraulic system has no internal threads between fitting and plug (no galling or seized plugs), precise alignment of devices with the flow thanks to locking pins, no external moving parts on the retriever, a smaller and lighter tool operated 2 to 3 m from the pressure point, and full compatibility with existing mechanical fittings through a hydraulic adapter.

Key features

• ASME B16.5 classes 150#, 300#, 400/600#, 900/1500# and 2500#
• RF, RTJ and FF facings
• Locking pins, 45H steel (Part No. 117001) and Viton O-ring (117002)
• Can be installed at any clock position of the pipe (12 o'clock, 6 o'clock, or trap mounted to simulate stagnant conditions)
• Special sizes, materials and painting available on request

Specifications

Please state the flange class, facing and material in your quotation request. The full manufacturer datasheet is available in the Attachments section below. Specifications may be modified by the manufacturer without notice.
