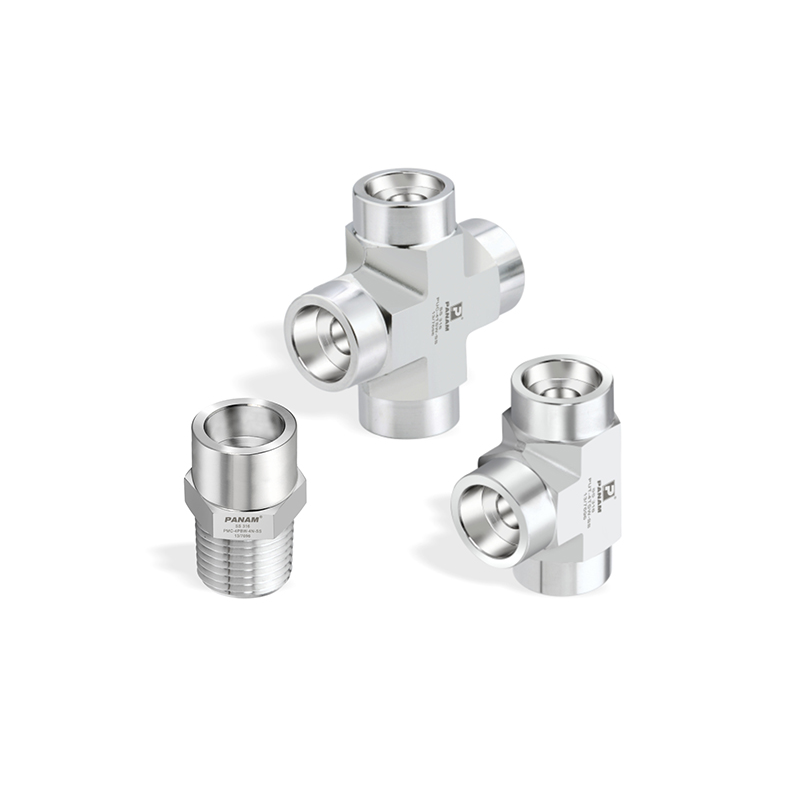

PANAM Weld Fittings (Tube and Pipe Socket Weld and Butt Weld, SS 316 / 316L)
Weld fittings for permanent tube and pipe connections: tube socket weld, tube butt weld, pipe socket weld and pipe butt weld ends, with connectors, elbows, tees, unions, crosses and weld adapters. Fractional 1/8" to 2" and metric 6 to 38 mm. SS 316 or 316L, NPT threads standard.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM weld fittings provide permanent welded connections that withstand pressure impulse, system vibration and temperature cycling. The tube socket end design meets and exceeds ASME B16.11 for ease of socket welding, and the design parallels the Schedule 80, 3000 pound fitting pressure class.
The range includes male and female connectors, male and female elbows, male run and branch tees, unions, union elbows (90 and 45 degrees), union tees and crosses, reducing unions, weld adapters (tube socket weld x pipe butt weld) and pipe to tube butt weld connectors. Straight fittings are made from bar stock, shaped fittings from full section forgings, and quality machining of all ports ensures consistent welding.
Stainless steel weld fittings are supplied solution treated and are capable of passing ASTM A262 tests for susceptibility to intergranular corrosion. They are also available in compliance with NACE MR0175 / ISO 15156 and NACE MR0103 / ISO 17495-1 with heat code traceability. TIG welding is recommended.
Key features
- Tube socket weld (TSW), tube butt weld (TBW), pipe socket weld (PSW) and pipe butt weld (PBW) ends
- Tube socket end design meets and exceeds ASME B16.11
- SS 316 with 0.04 to 0.07% carbon for good corrosion resistance and strength; SS 316L available
- Radius junction elbows for smooth flow path
- Marked with size, material and heat code; threads capped and packaged
- NPT threads standard (ASME B1.20.1); BSPT and BSPP on request
- Working pressure per part number listed in catalogue tables
Standard specification
| Sizes | 1/8" to 2" fractional; 6 mm to 38 mm metric |
|---|---|
| Working pressure | Per size, e.g. 1/4" TSW union 9600 psig (660 bar); up to 12660 psig in catalogue tables |
| Pressure basis | ASME B31.3, S = 20000 psi for SS 316 at -20 to 100 °F; for B31.1 multiply by 0.94 |
| Temperature, SS 316 | -198 °C to 538 °C (-325 °F to 1000 °F) |
| Temperature, SS 316L | -198 °C to 454 °C (-325 °F to 850 °F) |
| Materials | SS 316 standard, SS 316L; other materials on request |
| Design standard | ANSI B16.11, Schedule 80 / 3000 lb class |
| Threads | NPT standard; ISO tapered and ISO parallel on request |
| Sour service | Available to NACE MR0175 / ISO 15156 and NACE MR0103 / ISO 17495-1 |
Range overview
| Type | End connections | Example part number | Working pressure |
|---|---|---|---|
| Male connector | TSW x NPT male | PMC-4TSW-4N-SS | 7500 psig |
| Female connector | TSW x NPT female | PFC-4TSW-4N-SS | 6600 psig |
| Union | TSW x TSW | PU-4TSW-SS | 9600 psig |
| Union (metric) | TSW x TSW | PU-M12TSW-SS | 6930 psig |
| Union elbow | TSW x TSW | PUE-4TSW-SS | 9600 psig |
| Union | PSW x PSW | PU-4PSW-SS | 8100 psig |
| Male connector | TBW x NPT male | PMC-4TBW-4N-SS | 8000 psig |
| Union tee | TBW | PUT-6TBW-SS | 9930 psig |
| Male connector | PBW x NPT male | PMC-4PBW-4N-SS | 8000 psig |
| Weld adapter | TSW x PBW | PWA-4TSW-2PBW-SS | 8700 psig |
Part numbers combine P (PANAM), fitting type, size and end type of each port (TSW, TBW, PSW, PBW, N = NPT, R = BSPT, G = BSPP, M = metric) and material (SS = 316, SSL = 316L). Example from the catalogue: P-MC-4TSW-4N-SS is a 1/4" tube socket weld x 1/4" NPT male connector in SS 316.
Applications
Permanent leak tight connections in high pressure, vibrating or temperature cycling instrument lines in Oil and gas production, refineries, petrochemical and chemical plants, power generation, offshore installations and analyzer or instrument hook-ups.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-WF
Data sheet
- Manufacturer series
- Weld fittings
- Product type
- Socket weld and butt weld fitting
- Size range
- 1/8 in to 2 in and 6 to 38 mm
- Pressure rating
- Up to 12660 psig
- Material
- SS 316 or SS 316L
- Origin
- India
