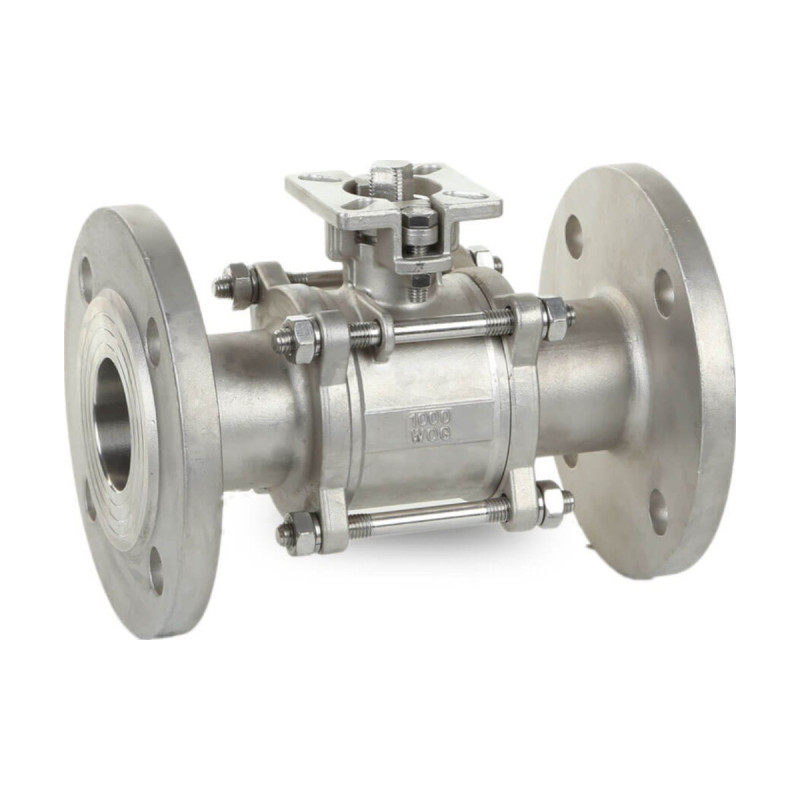

3-PC Flanged Ball Valve with ISO 5211 Pad (ANSI 150/300, DIN PN16/40, 1/2 to 6 in)
Three-piece full port flanged ball valve, investment cast, with blow-out proof stem and optional ISO 5211 direct mounting pad. Flanged to ASME Class 150/300, DIN PN16/40 or GB PN16.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The 3-PC flanged ball valve combines a three-piece investment cast body with flanged ends. The centre body can be removed for seat and ball service while the end pieces stay in the line. Sizes from 1/2 to 6 in, with ASME, DIN and GB flange drilling.
Key features
- Full port, 1/2 to 6 in (DN15 to DN150)
- Three-piece investment cast construction
- Body working pressure 1000 WOG (PN63); flange rating PN16/40 or Class 150/300
- Blow-out proof stem
- ISO 5211 direct mounting pad (option)
- Locking device handle (option)
Technical data
| Type | 3-piece floating ball valve, full port |
| Size range | 1/2 to 6 in (DN15 to DN150) |
| Pressure class | Body 1000 WOG (PN63); flanges ASME Class 150 / 300, DIN PN16 / PN40, GB PN16 |
| Temperature range | -20 to +180 °C |
| Body material | WCB / CF8 / CF8M |
| Trim / seat | Ball CF8 / CF8M; stem 304 / 316; seat PTFE |
| End connection | Flanged |
| Operation | Lever; actuator via ISO 5211 pad (option) |
| Design standard | ASME B16.34; EN 1983, EN 12516-1; GB/T 12237 |
| Face to face | DIN 3202 F1, EN 558-1 (DIN version) |
| Flange standard | ASME B16.5; DIN 2543 to 2545, EN 1092-1 PN16/40; JB/T 79.1 |
| Testing | API 598; DIN 3230, EN 12266-1; GB/T 13927, JB/T 9092 |
| Options | ISO 5211 direct mounting pad, locking handle |
Materials
- Body and bonnet: WCB, CF8 or CF8M
- Ball: CF8 or CF8M
- Stem: 304 or 316
- Seat, gasket, packing and stem washer: PTFE
- Bolting and gland: 304; handle 304 + PVC
Applications
- General industrial process lines
- Chemical and water services
- Lines needing in-line maintenance of the valve internals
Standards and certification
Designed to ASME B16.34, ASME B16.5 and API 598 (ANSI version), EN 1983 / EN 12516-1 / EN 1092-1 / EN 558-1 / EN 12266-1 (DIN version) according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-BV-102
Data sheet
- Size range
- 1/2 to 6 in (DN15 to DN150)
- Body material
- WCB / CF8 / CF8M
- Valve type
- Floating ball / 3-piece / full port
- Pressure class
- Class 150/300; PN16/40
- End connection
- Flanged
