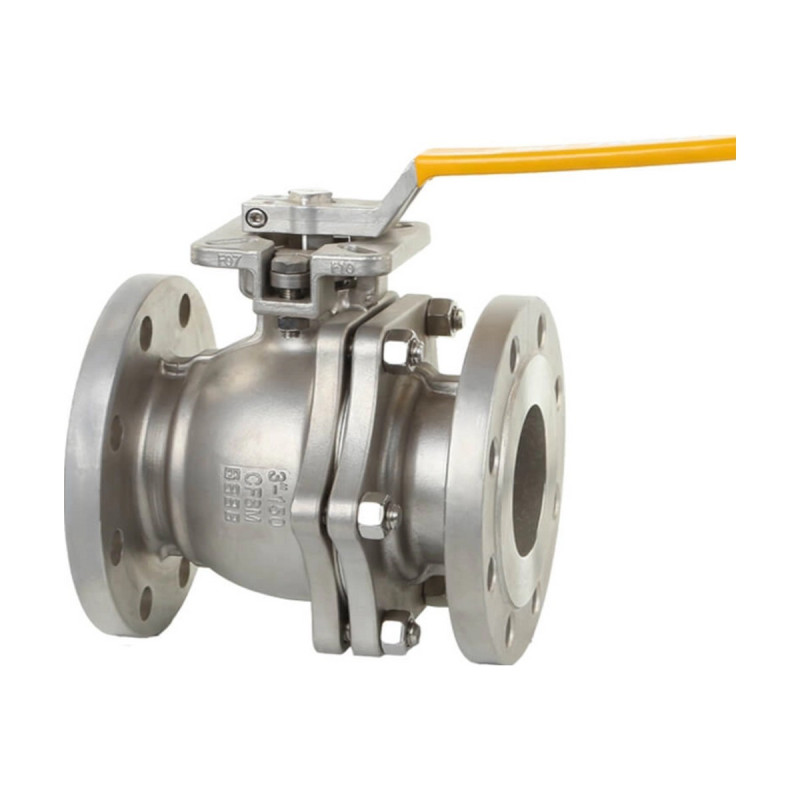

2-PC Flanged Ball Valve with ISO 5211 Pad (ANSI 150/300, DIN, JIS, 1/2 to 12 in)
Two-piece floating ball valve, full port, with flanged ends and ISO 5211 mounting pad for direct actuator fitting. Available to ASME (Class 150/300), DIN (PN16/40) and JIS (10K/20K) standards in carbon and stainless steel.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The 2-PC flanged ball valve is a floating ball, full port quarter-turn valve with an investment cast two-piece body. Its ISO 5211 mounting pad allows pneumatic or electric actuators to be mounted directly, without a custom bracket. The series is built to ASME, DIN, JIS and GB standards, from 1/2 to 12 in.
Key features
- Floating ball design with full port (bore equal to nominal diameter)
- Two-piece investment cast body and bonnet
- Blow-out proof stem
- ISO 5211 direct mounting pad, or standard low mounting pad version
- Locking device handle
- Anti-static device (option)
- API 607 fire-safe design available as an option
- Lever operation; worm gear operator on 5 to 12 in sizes; pneumatic or electric actuation (option)
Technical data
| Type | 2-piece floating ball valve, full port |
| Size range | 1/2 to 12 in (DN15 to DN300) |
| Pressure class | ASME Class 150 / 300; DIN PN16 / PN40; JIS 10K / 20K; GB PN16 / PN40 |
| Temperature range | -20 to +180 °C |
| Body material | WCB / CF8 / CF8M (JIS: SCPH2 / SCS13 / SCS14; DIN: 1.0619 / 1.4308 / 1.4408) |
| Trim / seat | Ball CF8 / CF8M; stem 304 / 316; seat PTFE |
| End connection | Flanged, raised face |
| Operation | Lever, worm gear (5 to 12 in), pneumatic or electric actuator |
| Design standard | ASME B16.34, API 608, API 6D; EN 1983, EN 12516-1; JIS B2071 |
| Face to face | ASME B16.10; DIN 3202 F4 / F5; JIS B2002 |
| Flange standard | ASME B16.5; DIN 2543 to 2545, EN 1092-1; JIS B2220 |
| Testing | API 598; DIN 3230, EN 12266-1; JIS B2003 |
| Options | API 607 fire safe, anti-static device, locking handle, automation package |
Materials
- Body and bonnet: WCB, CF8 or CF8M (SCPH2 / SCS13 / SCS14 for JIS; 1.0619 / 1.4308 / 1.4408 for DIN)
- Ball: CF8 or CF8M
- Stem: 304 or 316
- Seat: PTFE (RPTFE or PPL on request according to the web data)
- Packing: PTFE; O-ring FPM; stem washer PTFE + 25% GF
- Bolting: 304; handle WCB / CF8
Applications
- Oil and gas, petrochemical and chemical process lines
- Natural gas distribution
- Water treatment, pulp and paper, pharmaceutical services
- Automated on-off isolation with actuators
Standards and certification
Designed to ASME B16.34, API 608, API 6D, ASME B16.5, ASME B16.10 and API 598 (ASME version), EN 1983 / EN 12516-1 / EN 1092-1 / EN 12266-1 (DIN version) and JIS B2071 / B2220 / B2002 / B2003 (JIS version) according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-BV-101
Data sheet
- Size range
- 1/2 to 12 in (DN15 to DN300)
- Body material
- WCB / CF8 / CF8M
- Valve type
- Floating ball / 2-piece / full port
- Pressure class
- ANSI 150/300; PN16/40; JIS 10K/20K
- Temperature
- -20 to +180 °C
- End connection
- Flanged RF
