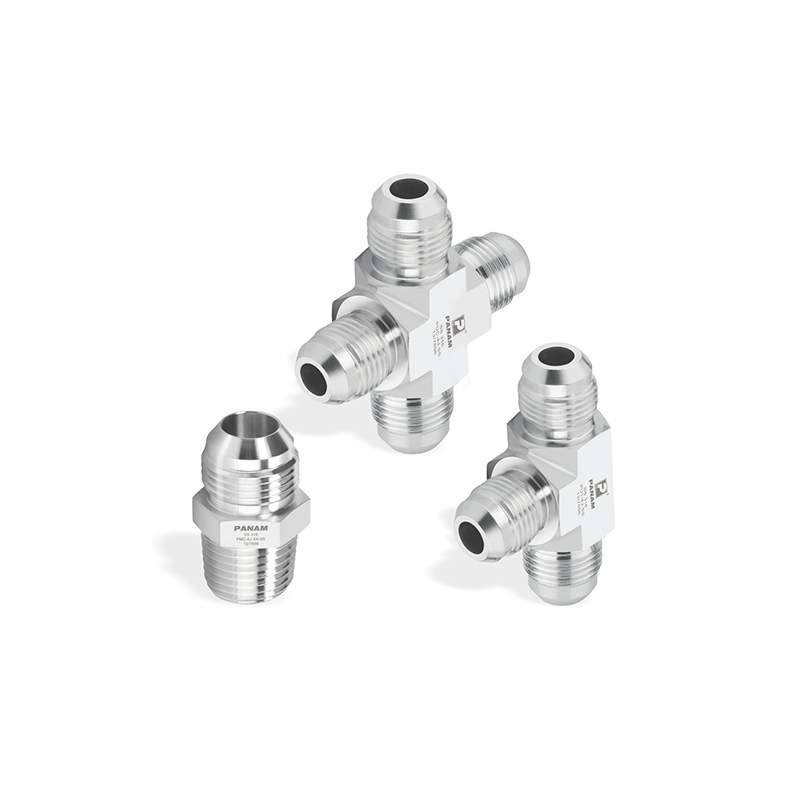

PANAM 37° JIC Flared Tube Fittings (SAE J514, 1/8" to 2")
SAE J514 37° flared (JIC) three piece tube fittings, 1/8" to 2" tube OD: connectors, swivel fittings, unions, bulkhead unions, elbows, tees, crosses, nuts, sleeves, caps and plugs. NPT, BSPT, BSPP and SAE/MS ends. SS 316, SS 304, brass, carbon steel.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM 37 degree flared tube fittings follow the SAE J514 three piece design: body, sleeve and nut. The tube end is flared at 37 degrees (74 degree included angle) and clamped between the fitting nose and the sleeve, providing an effective metal to metal seal with a small seal area, compact design, low assembly torque and high pressure capability.
The support sleeve clamps the flare, isolates the tube from the nut to minimise twist during assembly, resists flare expansion and makes the fitting adaptable to metric tube by changing its inside diameter. The range covers male and female connectors, swivel connectors, unions, large hex and swivel unions, reducing adapters, bulkhead unions and lock nuts, male, adjustable, 45 degree, female and union elbows, run, branch, union and swivel tees, union crosses, tube caps, cap assemblies and plugs.
JIC fittings are 100% factory tested and comply with NACE MR0175 and NACE MR0103 with heat code traceability. The catalogue states working pressure up to 20000 psi (1378 bar), with higher ratings on request; allowable SAE ratings per dash size are listed in the catalogue.
Key features
- SAE J514 three piece design (body, sleeve, nut), flaring to SAE J533
- Metal to metal seal, small seal area and low assembly torque
- Sleeve isolates tube from nut, minimising tube twist
- Swivel (JSWL) and adjustable (A) versions
- Hardened threads with smooth surface to avoid galling
- Marked with size, material and heat code; threads capped
- Assembly: finger tight plus 1/4 turn with a wrench
Standard specification
| Tube sizes | 1/8" to 2" OD (SAE dash 2 to 32) |
|---|---|
| JIC threads | 5/16-24 to 2 1/2-12 UNF |
| Pipe and port ends | NPT, ISO tapered (BSPT), ISO parallel (BSPP), SAE/MS straight, metric |
| Working pressure | Up to 20000 psi (1378 bar) per catalogue; SAE table for low carbon steel: 5000 psi up to 3/8", 1500 psi at 2" |
| Materials | SS 316, SS 304, brass, carbon steel; Hastelloy, Monel, Duplex 2205, Duplex 2507 on request |
| Recommended tubing | Fully annealed seamless ASTM A269, AISI 316 or 304 |
| Sour service | Compliance with NACE MR0175 and NACE MR0103 |
| Testing | 100% factory tested, heat code traceability |
Main fitting types
| Type | Code | Example part number |
|---|---|---|
| Male connector, 37° JIC x NPT | PMC | PMC-8J-8N-SS |
| Male connector, JIC x BSPT / BSPP / SAE | PMC | PMC-8J-8G-SS |
| Swivel male connector | PMC (JSWL) | PMC-4JSWL-4J-SS |
| Female connector | PFC | PFC-8J-8N-SS |
| Union / swivel union | PU / PSU | PU-8J-SS |
| Bulkhead union / lock nut | PBU / PBLN | PBU-8J-SS |
| Reducing adapter | PRA | PRA-8J-6J-SS |
| Nut / sleeve | PN / PS | PN-8J-SS |
| Tube cap / cap assembly / plug | PTC / PTCA / PTP | PTC-8J-SS |
| Male elbow / adjustable male elbow | PME / PAME | PAME-8J-8G-SS |
| Union elbow | PUE | PUE-8J-SS |
| Male branch tee / union tee | PMBT / PUT | PUT-8J-SS |
| Union cross | PUC | PUC-8J-SS |
Part numbers combine P (PANAM), fitting type, size and type of each port (J = 37° flare, JSWL = 37° swivel, A = adjustable, N = NPT, R = ISO tapered, G = ISO parallel, S = SAE/MS, M = metric) and material (SS, B brass, CS carbon steel). Example from the catalogue: PMC-8J-8N-SS is a 1/2" 37° JIC x 1/2" NPT male connector in SS 316.
Applications
Hydraulic and high pressure instrument tubing, control lines and skid packages in Oil and gas production, refineries, petrochemical and chemical plants, power generation, offshore installations and analyzer or instrument hook-ups.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-JIC
Data sheet
- Manufacturer series
- SAE J514
- Product type
- 37 degree flared tube fitting
- Size range
- 1/8 in to 2 in
- Pressure rating
- Up to 20000 psi
- Material
- SS 316 standard (SS 304 brass CS)
- Origin
- India
